CB Systems Life glass door system
Swing door · CB Systems

Life

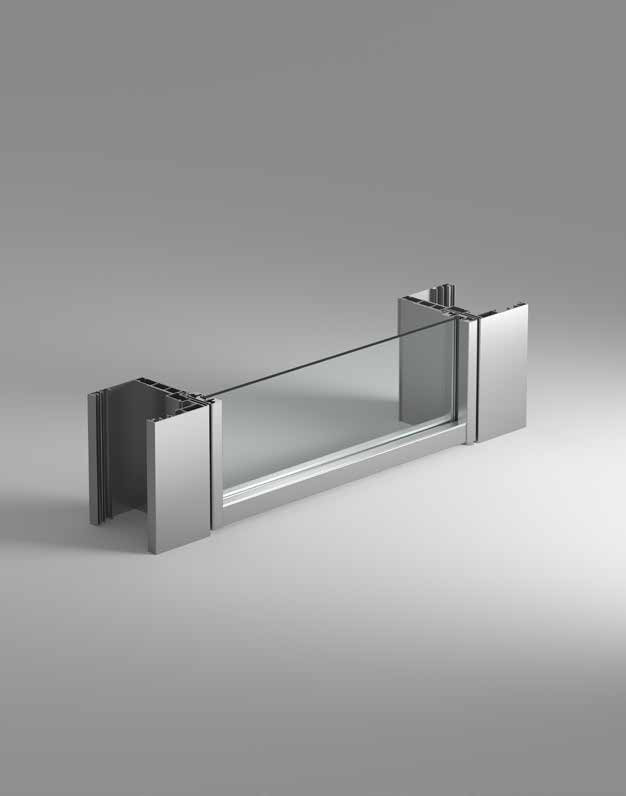

Telescopic aluminium frame with an 82 mm architrave

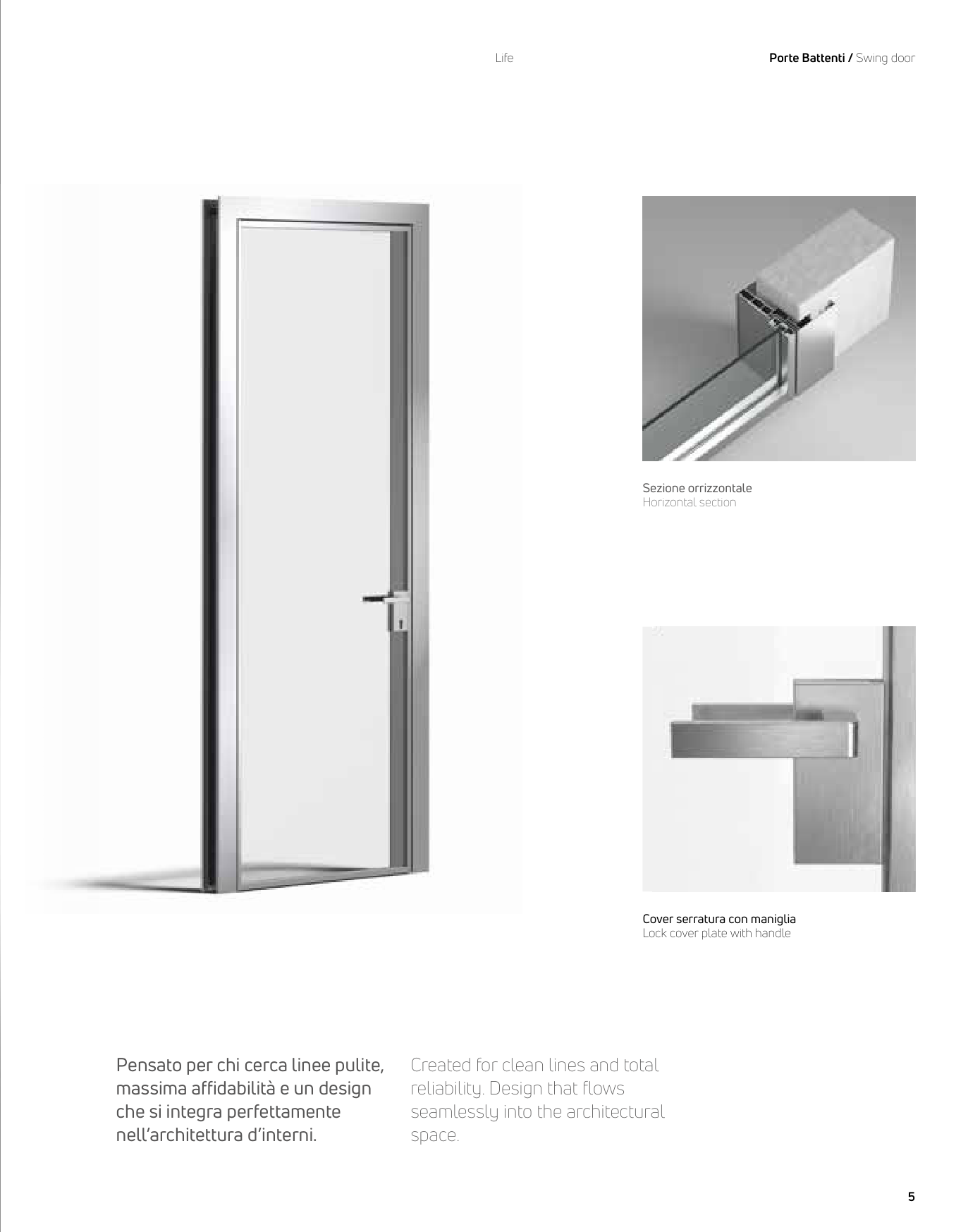

Created for clean lines and total reliability — a design that flows seamlessly into the architectural space. The telescopic frame adapts to the wall without a subframe, and the 82 mm architrave gives the opening a deliberate, framed presence.

Single and double leaves, with or without a transom; the leaf is a glass panel held in a slim aluminium profile with a concealed "Link" magnetic lock and the Linear handle as standard.

BrandCB Systems
Made inCellatica, Brescia, Italy
SourceManufacturer →
CategorySwing door
600–1000 mm
single-leaf width
1600–2700 mm
leaf height
70–125 mm
wall thickness, telescopic
82 mm
architrave
Key facts

The numbers.

Leaf widths

Single 600–1000 mm · double 1200–2000 mm (asymmetric pairs on request)

Leaf heights

1600–2700 mm; transom version for openings above 2100 mm

Wall thickness

70–125 mm standard; extensions for 126–205 mm and beyond

Frame

Telescopic aluminium with 82 mm casing; H extension profile 130–240 mm

Glass

8 mm or 10 mm safety glass, F2 / F3 / F4 families

Lock

"Link" magnetic closure with the Linear handle (standard)

Non-standard sizes

Widths under 600 mm and over 1000 mm available on request

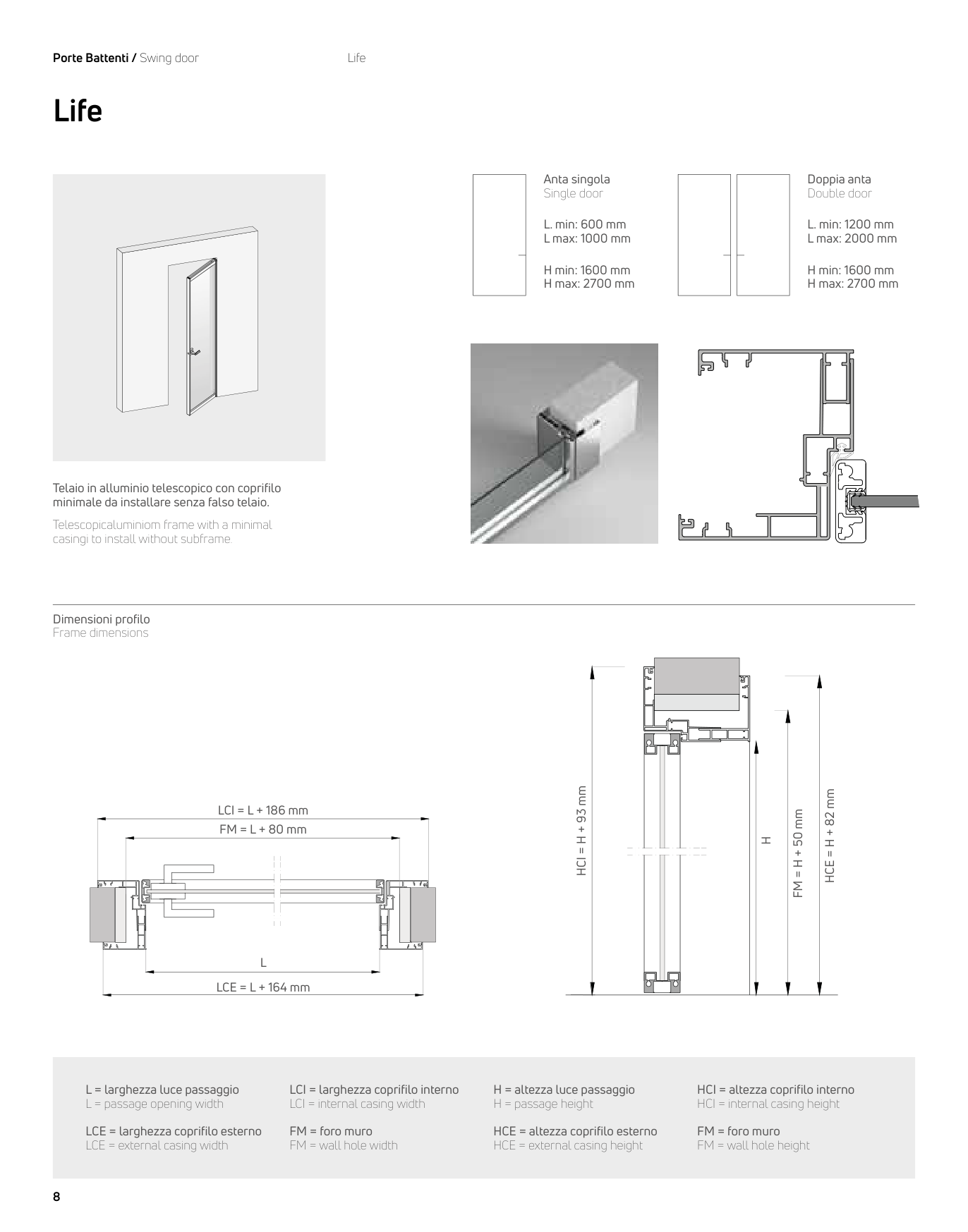

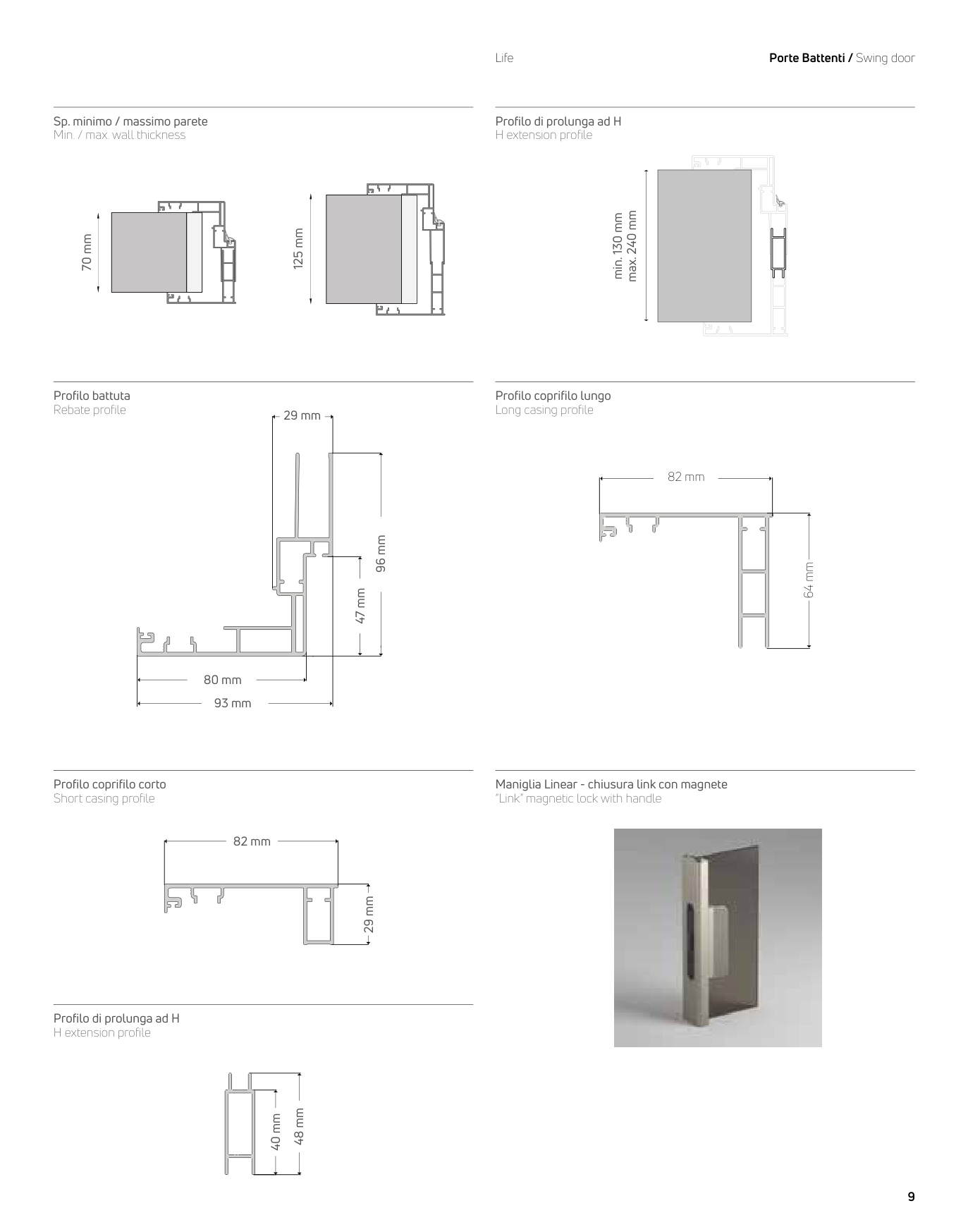

Technical drawings

Dimensions and fixing for Life.

Life — dimensions and fixing details from the CB Systems catalogue
Life — dimensions and fixing details from the CB Systems catalogue
Life — dimensions and fixing details from the CB Systems catalogue
Locks & handles

Hardware options.

Finishes & glass

Profile finishes and glass.

Group A

Anodized silver

Group B

Varnished white, Anodized black, Varnished brown

Group C

Bronze, Champagne, Gold

On request

Any RAL colour on request

Glass F2

Transparent extra-clear, Satin extra-clear

Glass F3

Transparent grey, Transparent bronze

Glass F4

Satin grey, Satin bronze, Stopsol grey, Stopsol bronze

Glass thickness

8 mm / 10 mm safety glass

Specify this system

Specify Life for your project.

Tell us the wall opening, the leaf size, the glass and the profile finish you are targeting. We quote against the project and confirm lead time with CB Systems.

Inquire about Life
