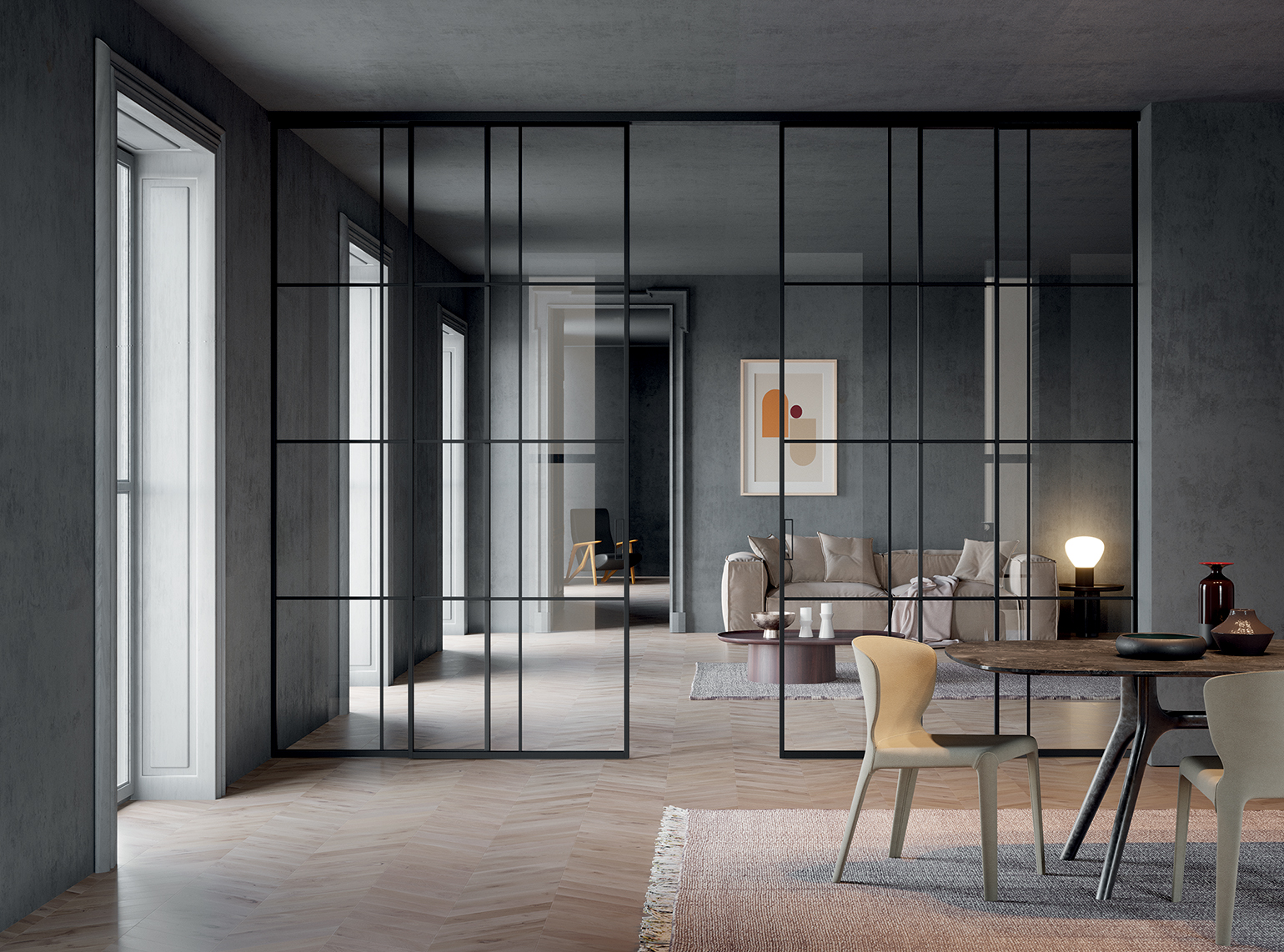

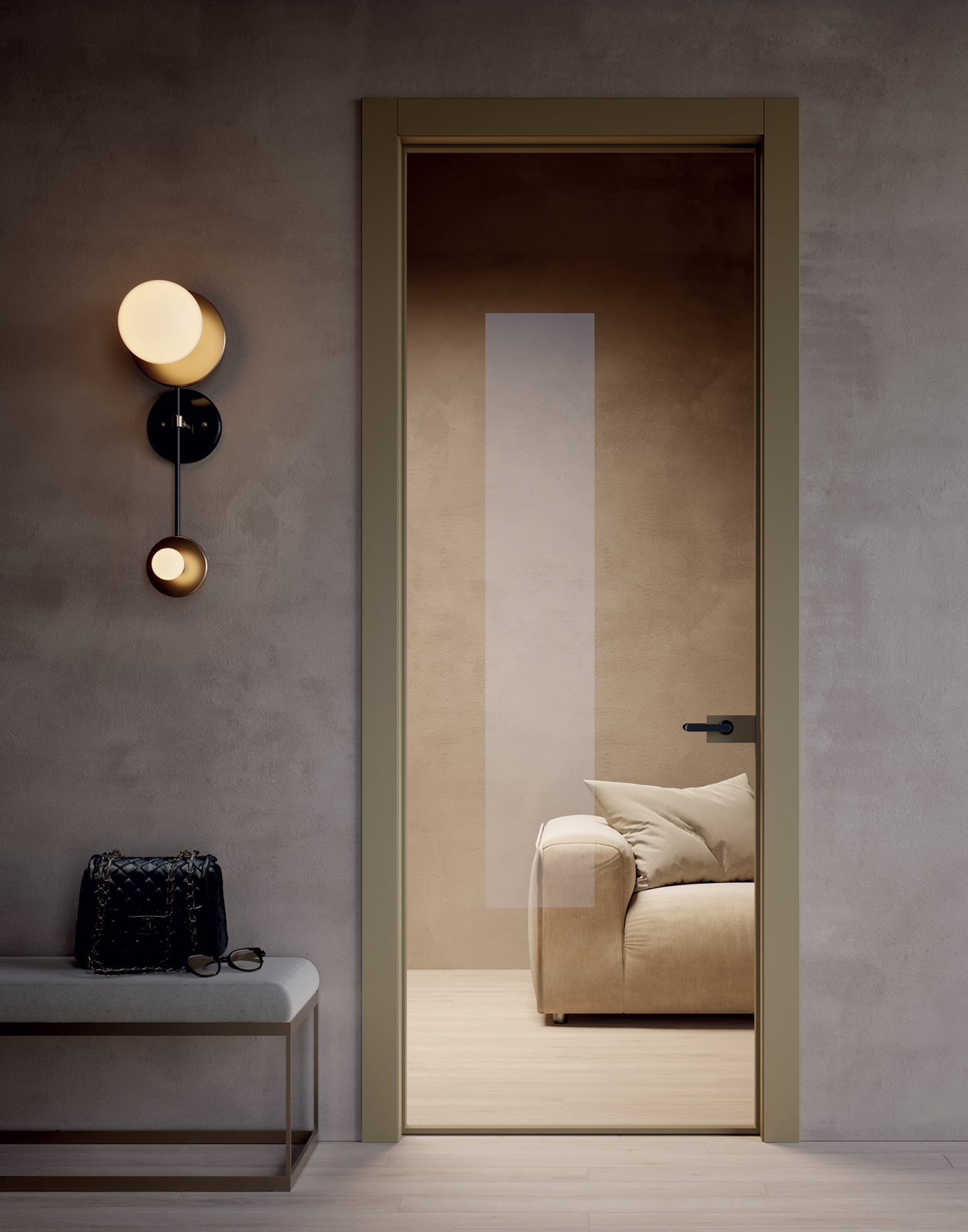

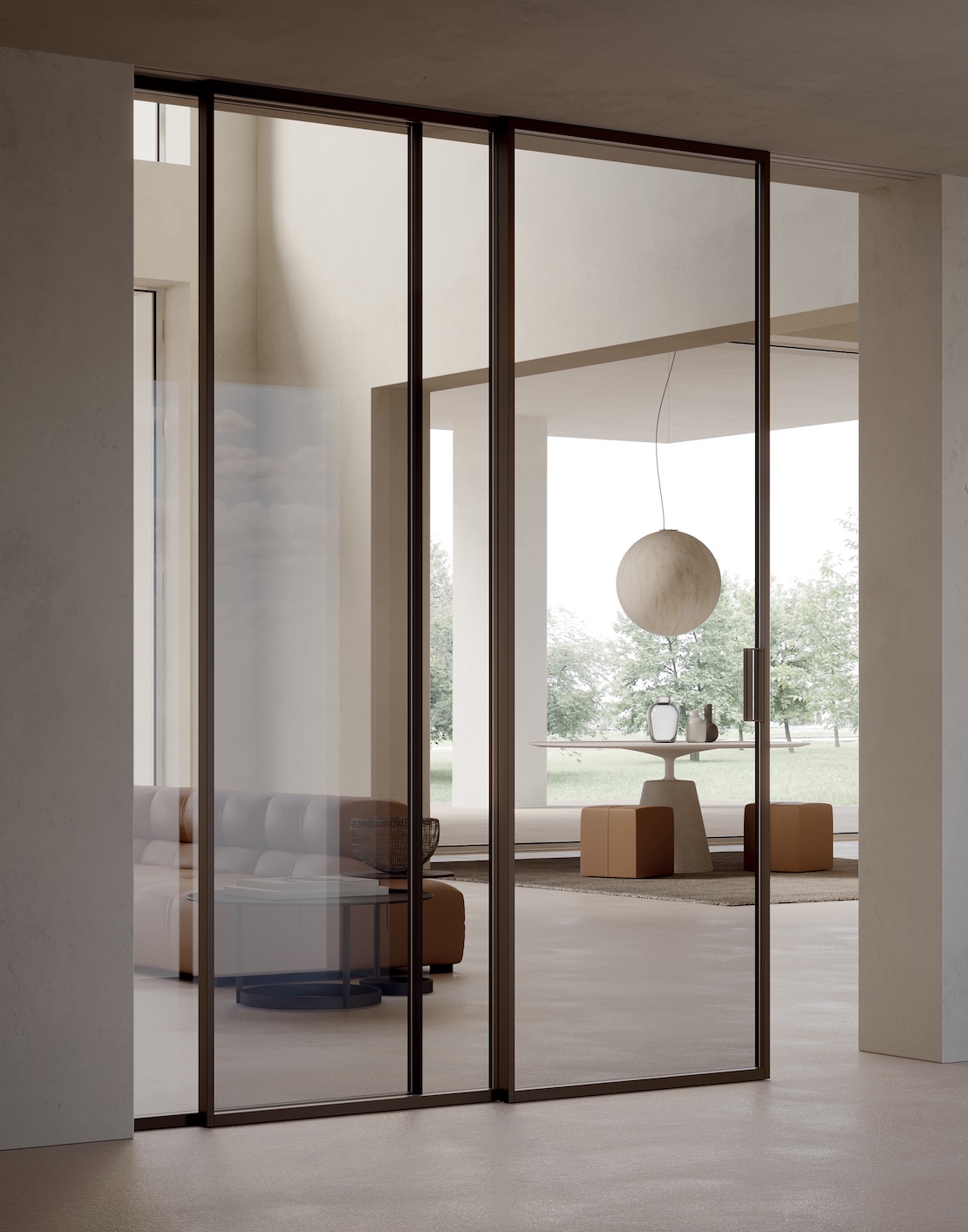

Fifteen rooms — glass doors as installed light.

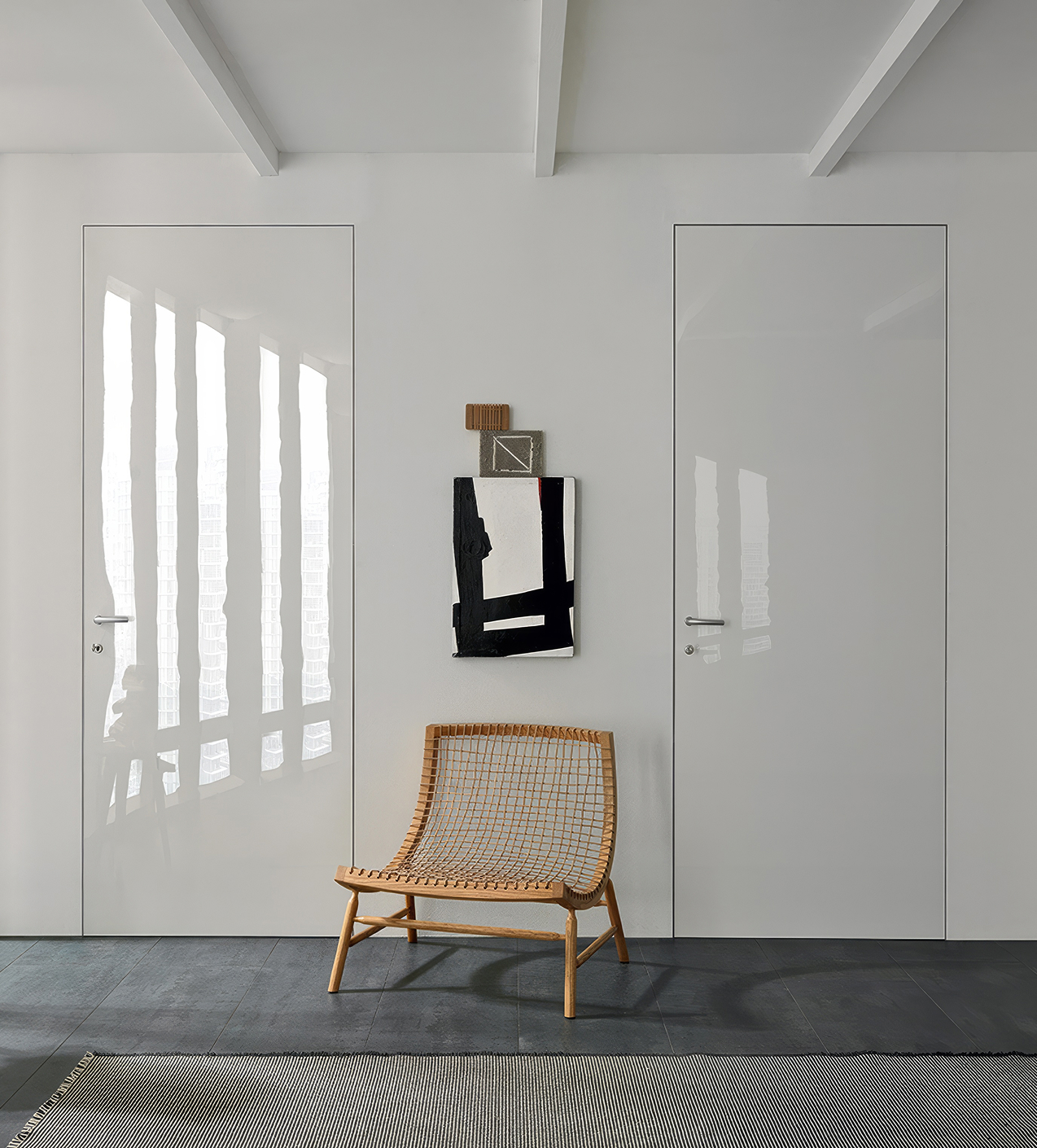

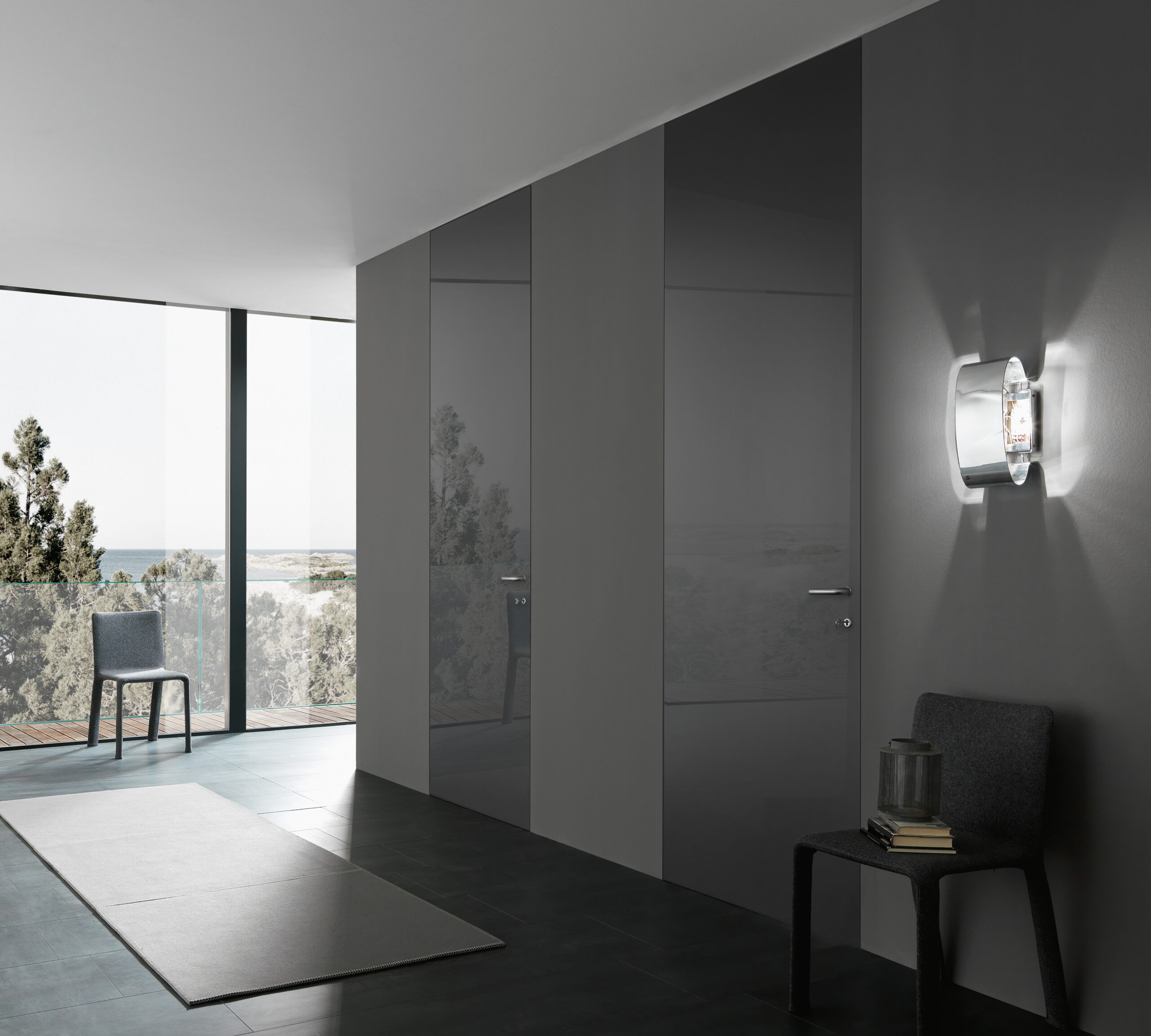

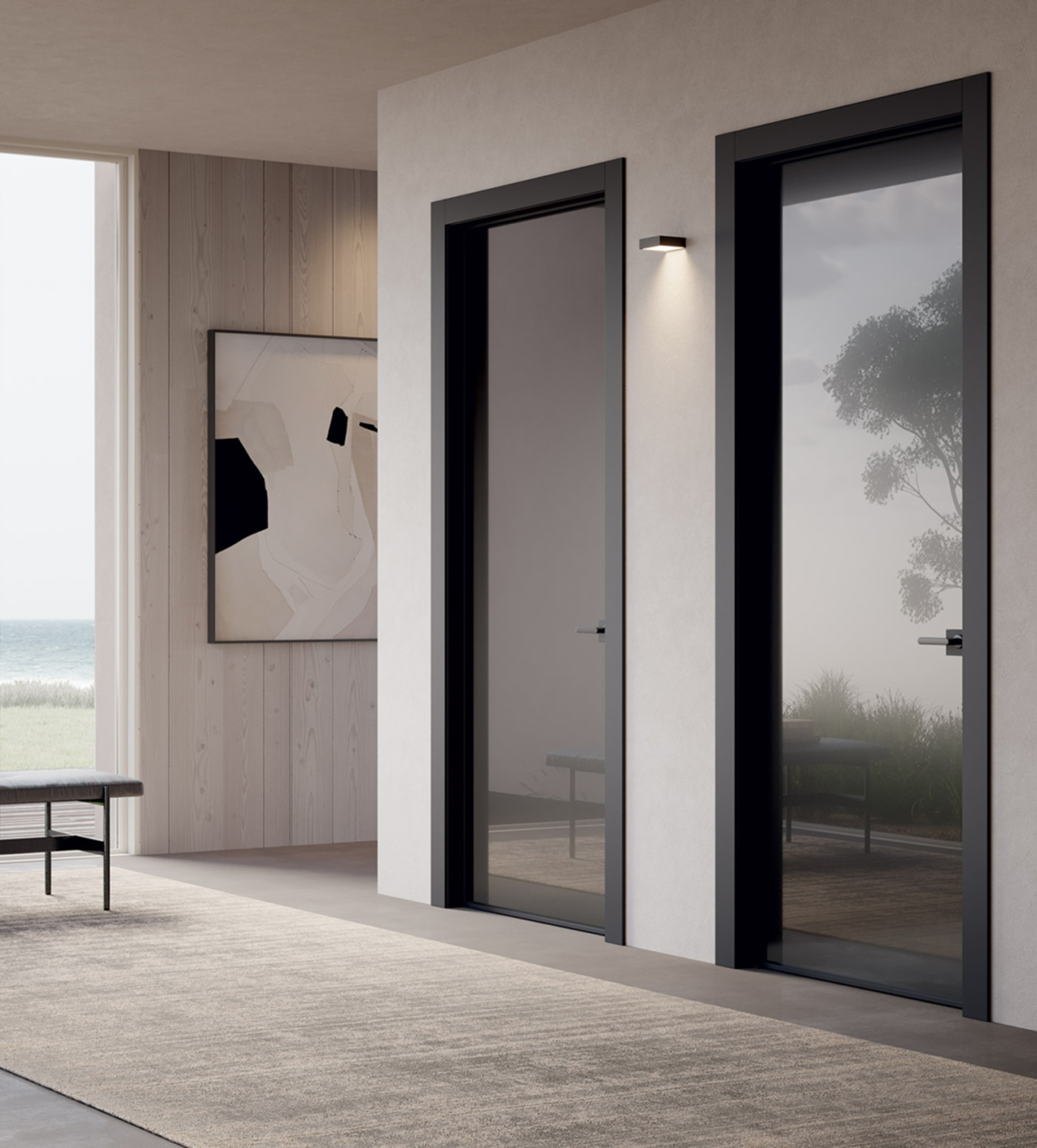

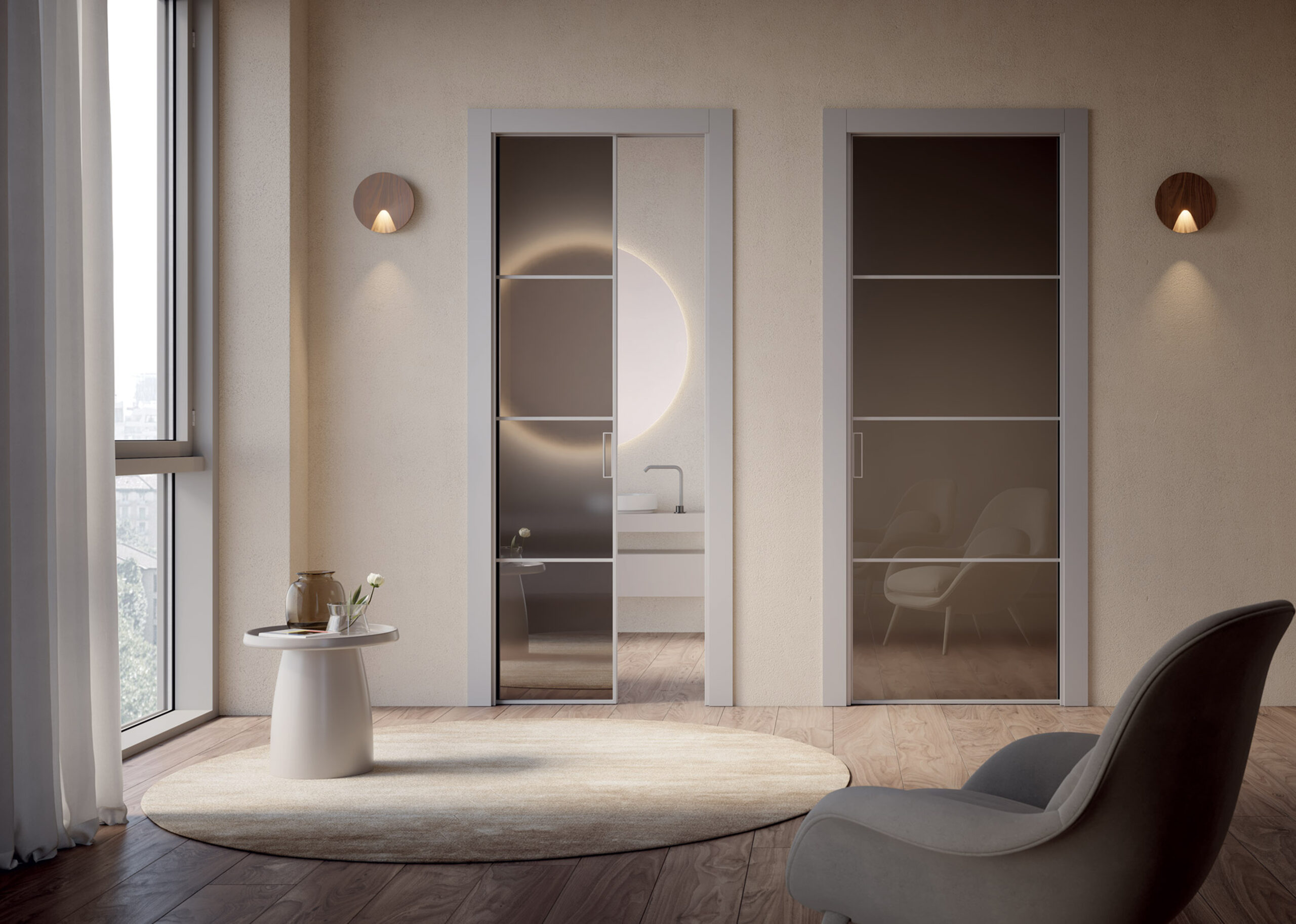

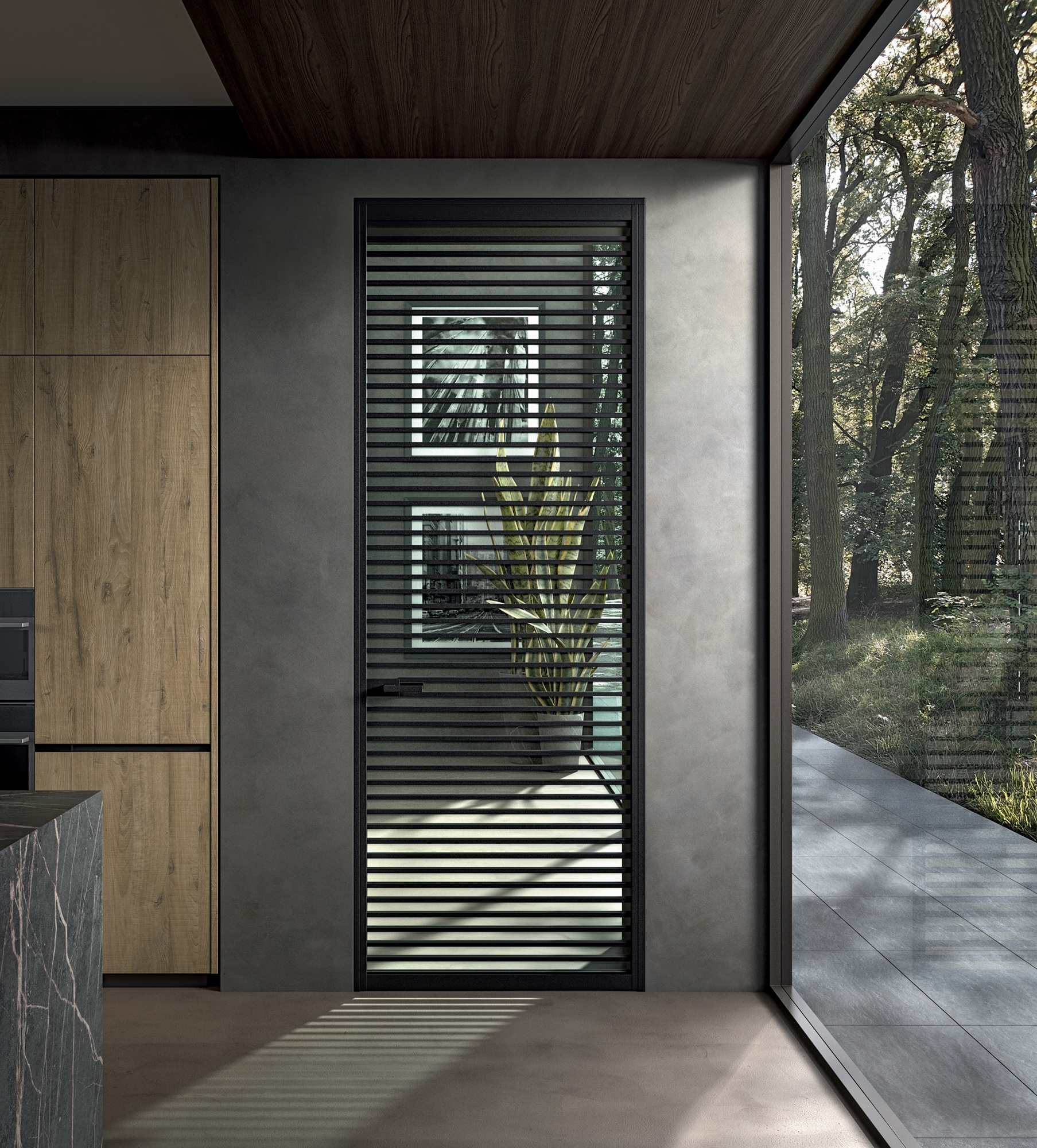

Lifestyle photography from GD Dorigo's Kyra, Life, and Luce collections — hinged, sliding, pocket, and pivot glass doors in real interiors. Tap any photo to enlarge.
All photography © GD Dorigo. Sourced from gd-dorigo.com — every image above is a real installation. To see the same models built into a Bay Area room, book a showroom visit.

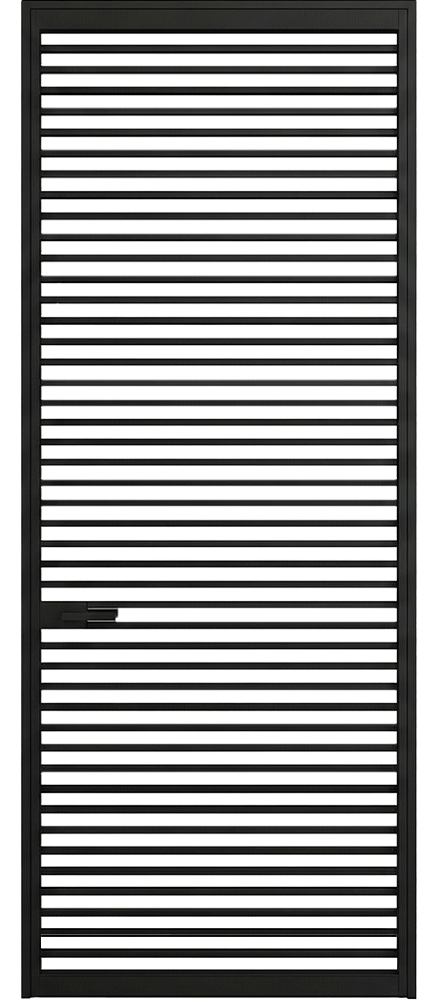

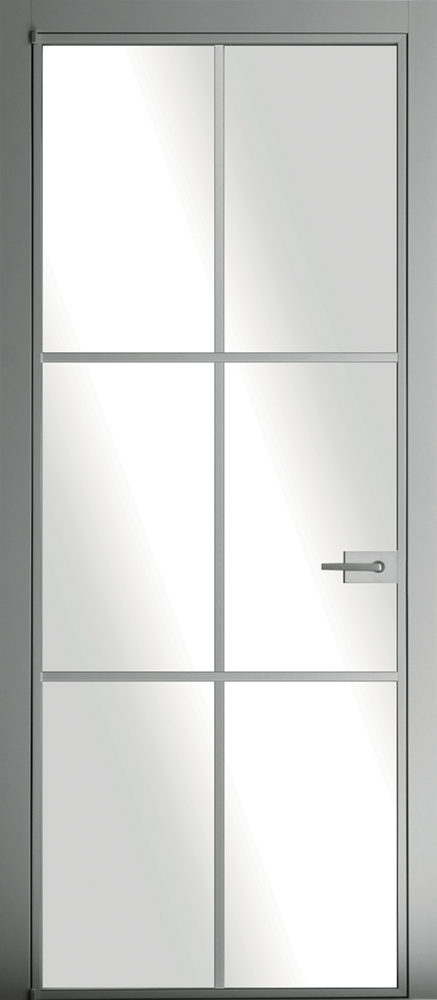

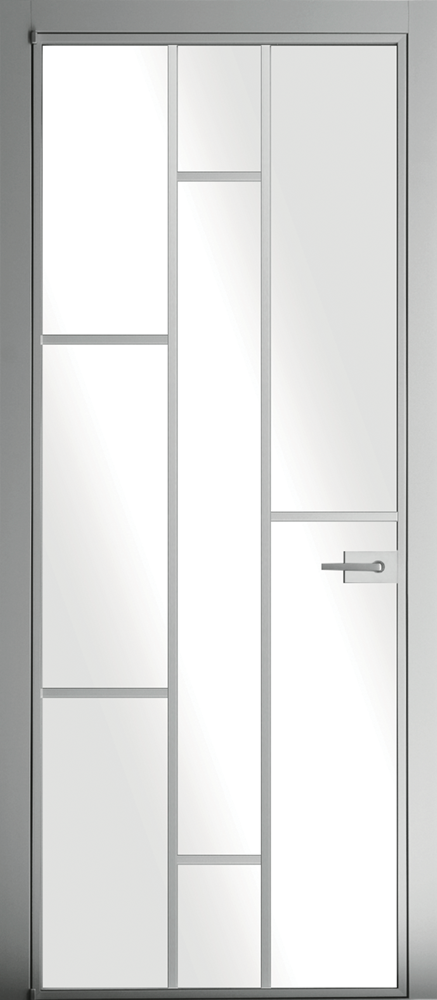

Twelve glass models, one light-first language.

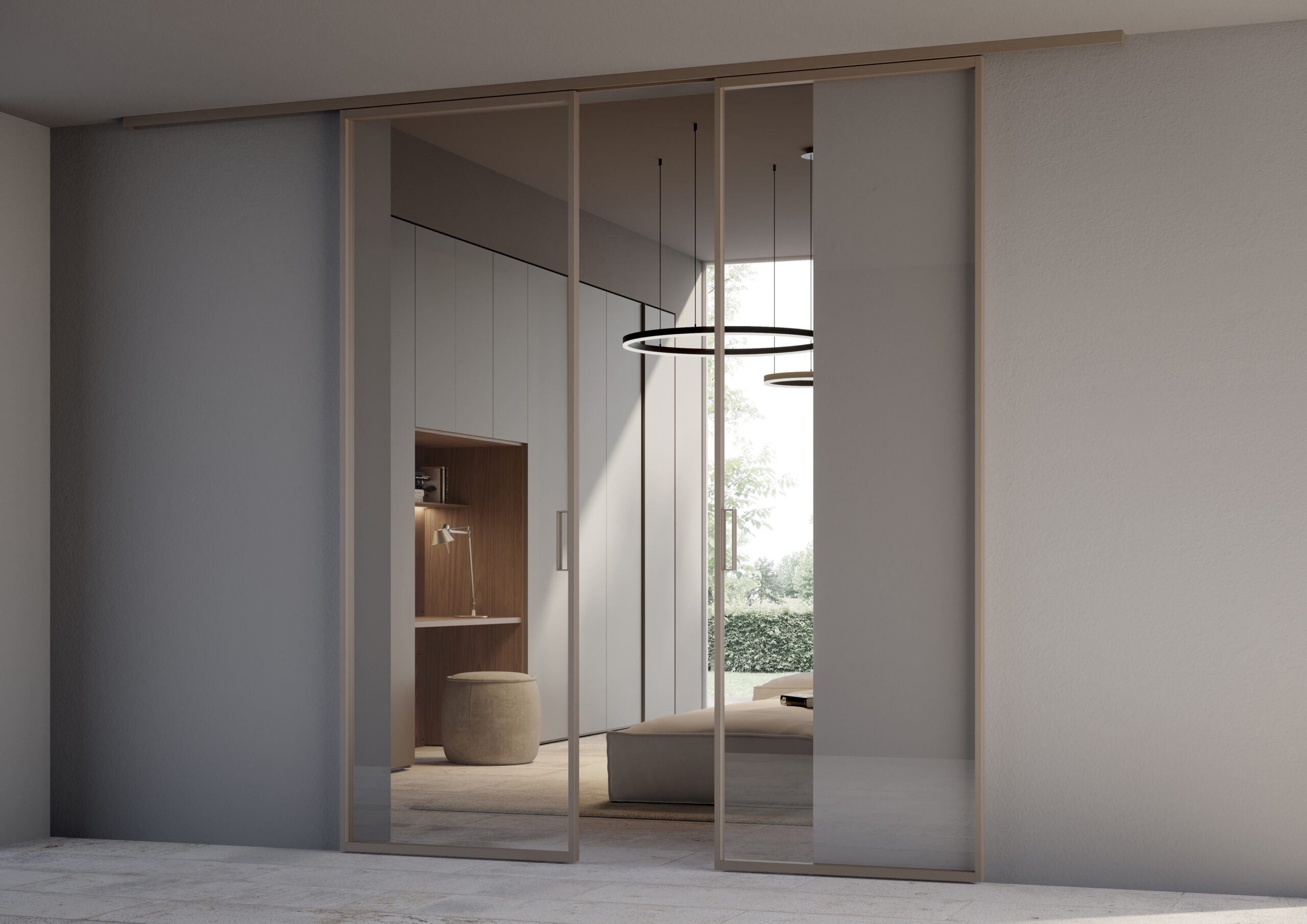

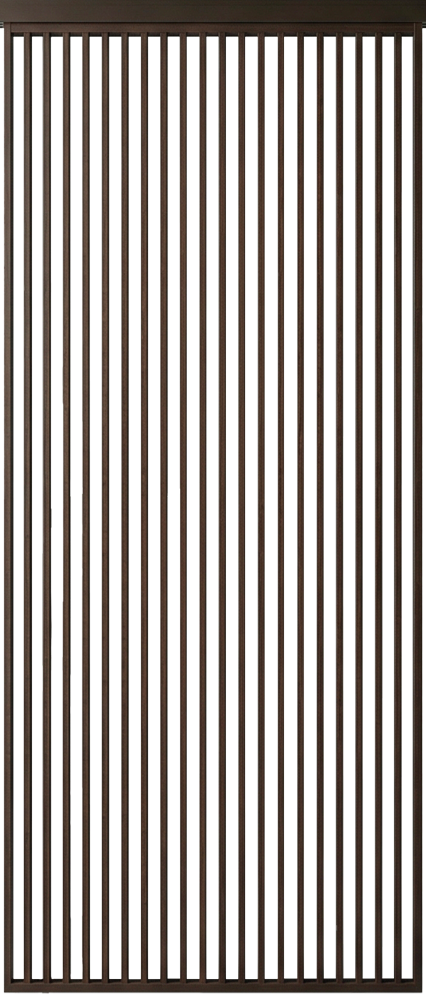

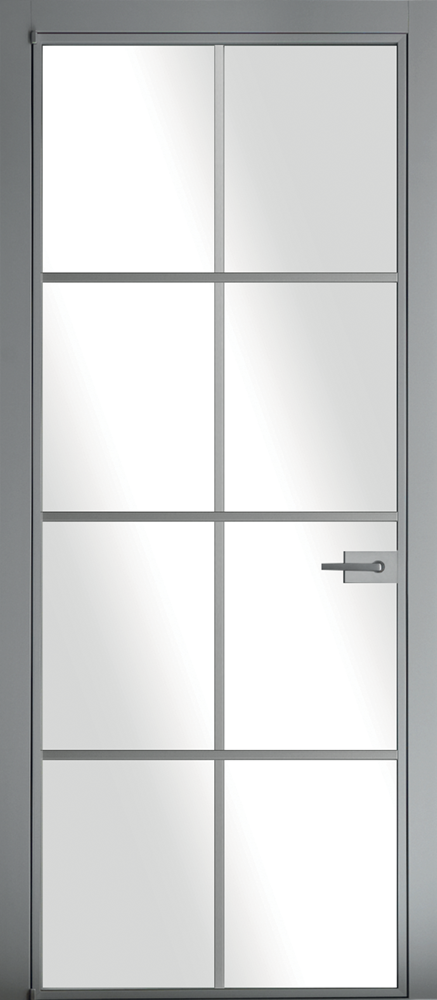

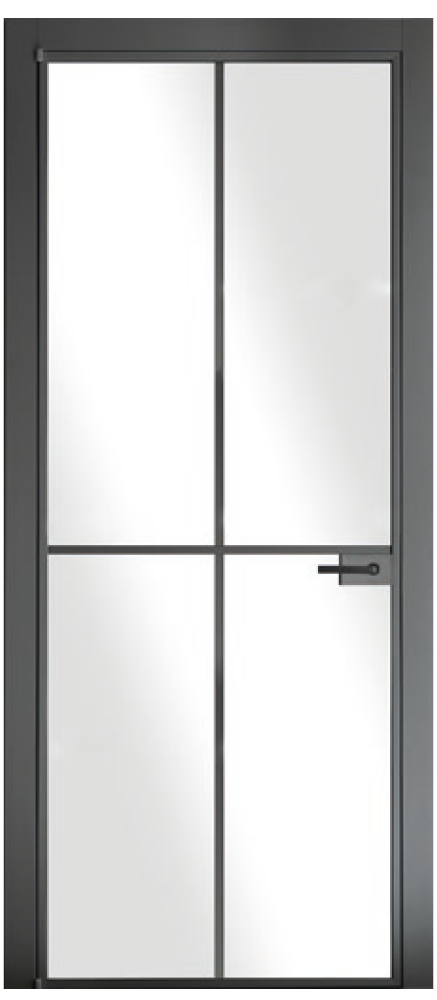

The Kyra collection by GD Dorigo offers twelve interior glass-door models — from the minimal 700 series to the framed 900. Every model accepts the full Kyra glass and lacquer library, and every model can be specified hinged or sliding. Tile photography is in production; tap any model for technical details and to schedule a showroom mock-up.
Twenty-one finishes, one coherent palette.
Every Kyra model is specified from this library — transparent and tinted glasses, acidato (etched) and ICE diffusers, reflex mirrored panes, and the lacquered-frame palette. Codes match the GD Dorigo specification sheet.

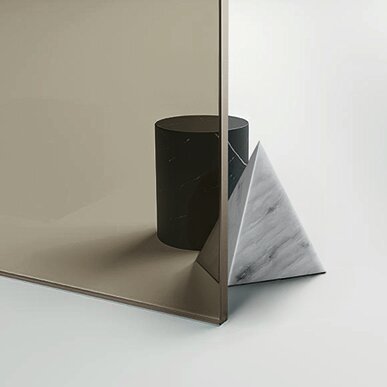

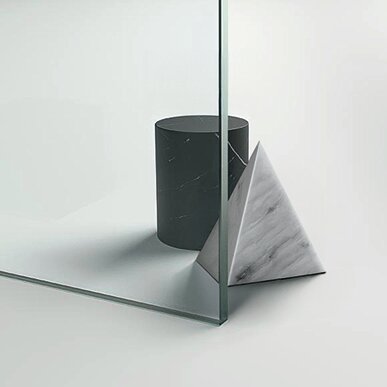

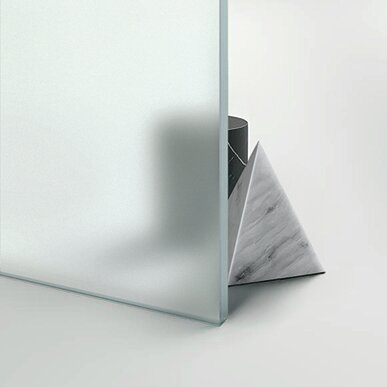

Glass · 14

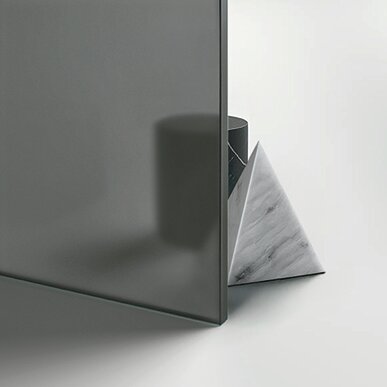

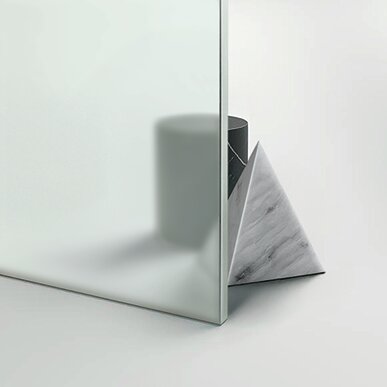

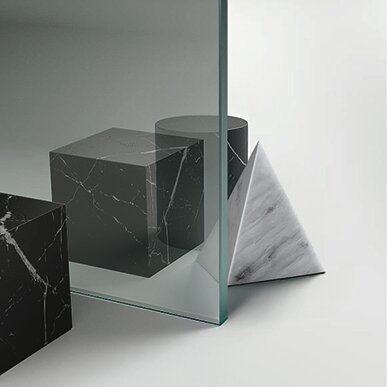

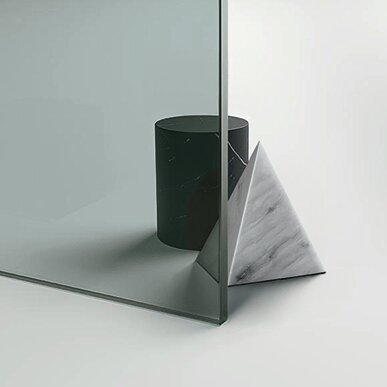

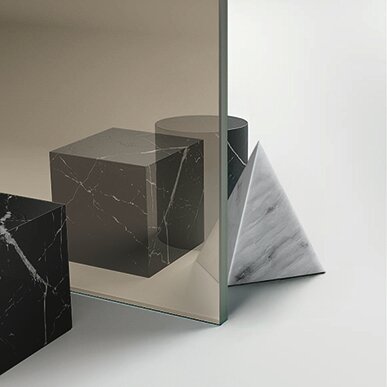

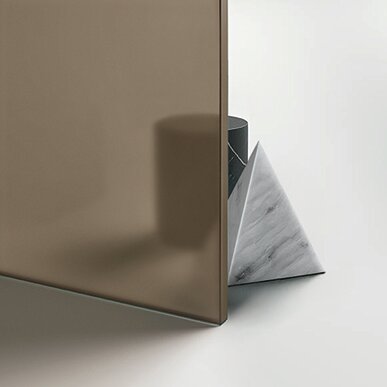

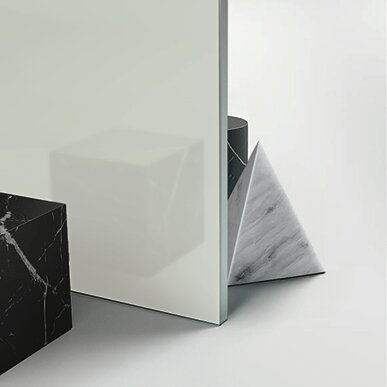

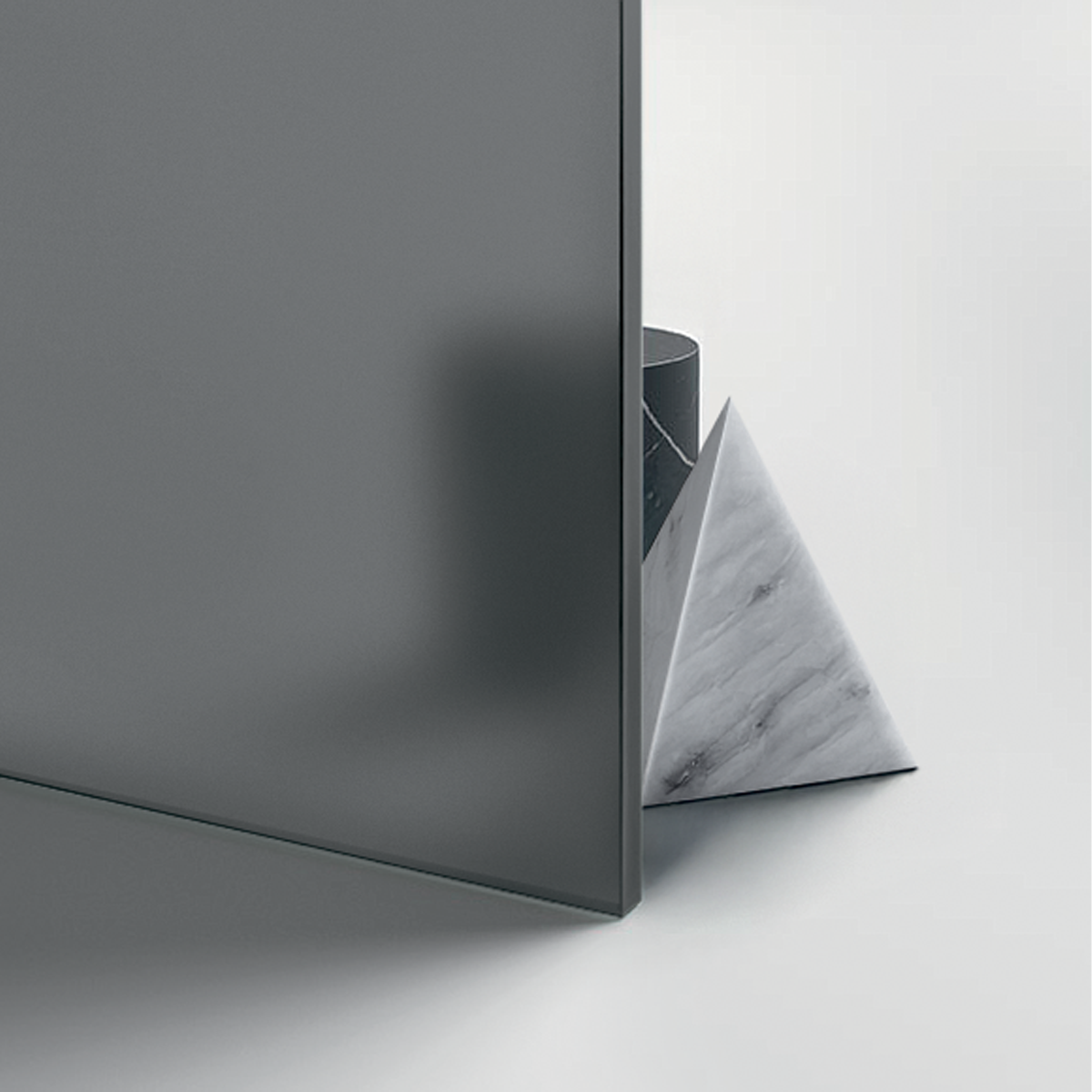

Transparent, tinted, acidato (etched), ICE diffuser, reflex mirrored, and EX laminated-interlayer panes. The visual surface of every Kyra door.
Frame · Profile · 7

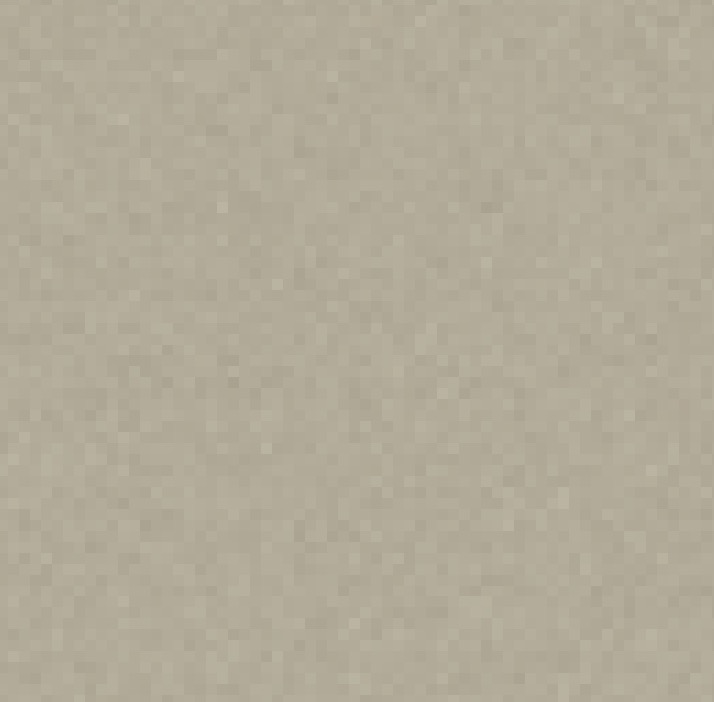

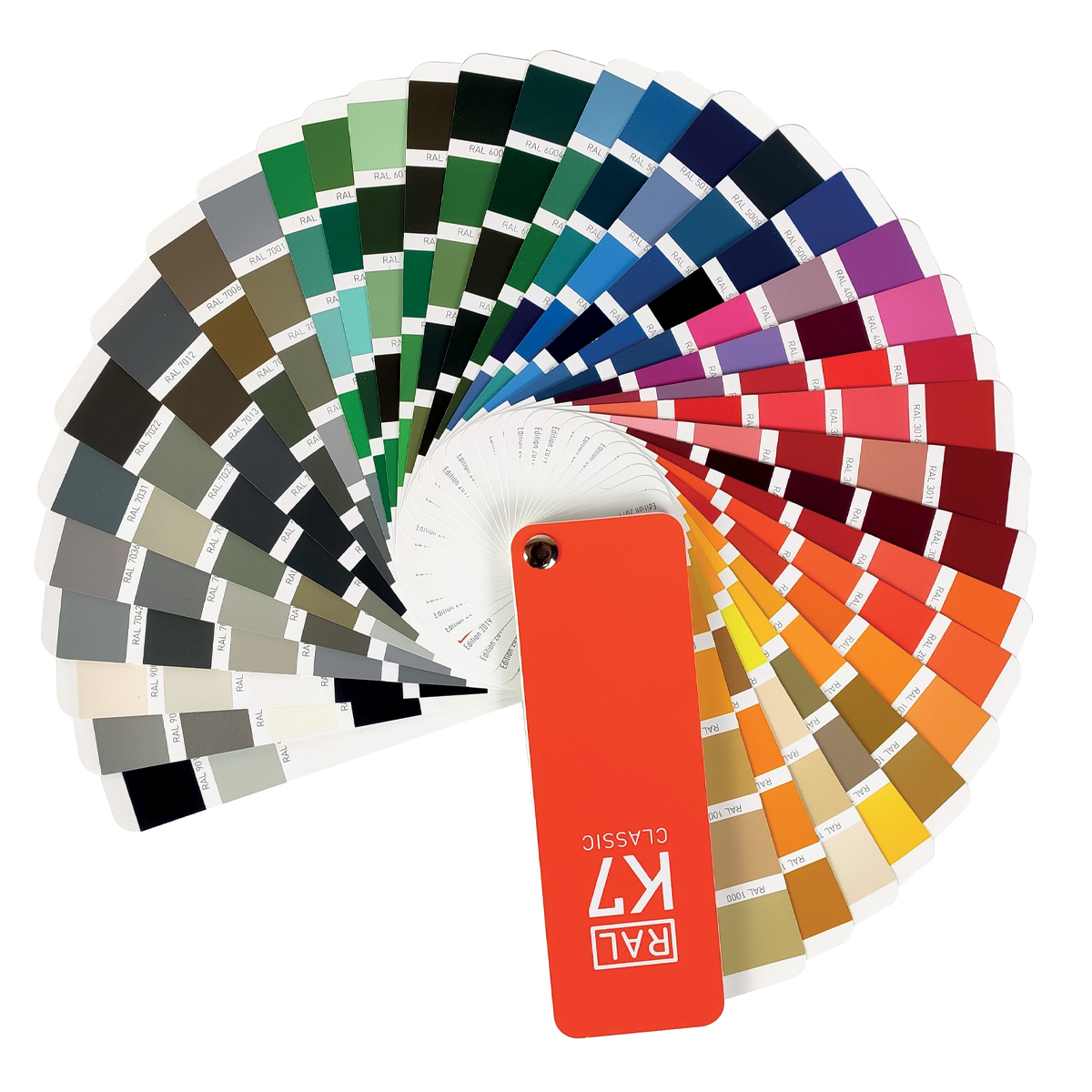

Aluminium door-profile finishes from the CB Systems Girovetro catalogue — anodized silver (group A), varnished white, anodized black and varnished brown (group B), and bronze, champagne and gold (group C). Any RAL colour on request. Frame colour is independent of the glass; specify both.
Screen colours are an approximation — glass tone, etch texture, and lacquer sheen only read in hand. Request physical samples or book a showroom visit.
Three perimeter profiles — pick the aluminium signature.
The aluminium frame around the glass is its own design choice. Mizu reads as a clear, minimal rectangular border. Kumo is visible only on one side, letting glass dominate the other. Nami hides the aluminium between two glass panes for the cleanest look.

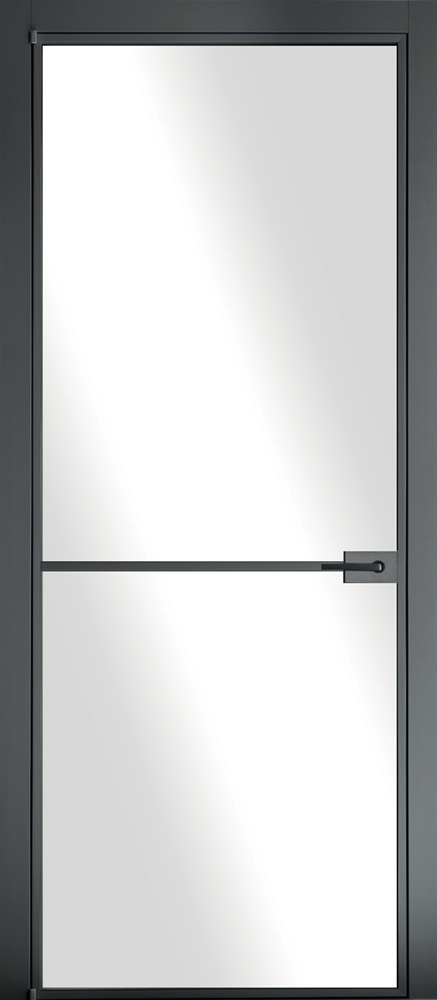

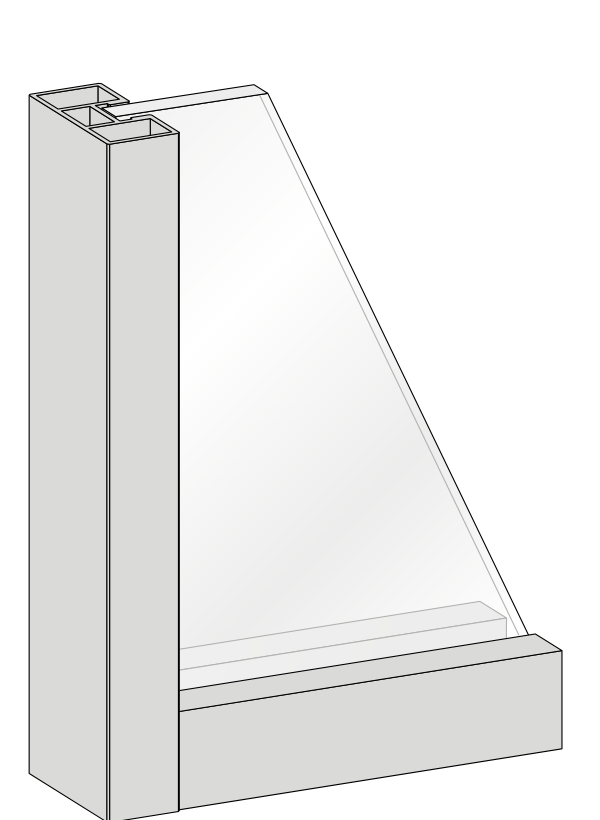

Mizu
Rectangular aluminium profile, simple and minimalist. The doors feature a clearly visible perimeter profile and can be fitted with horizontal or vertical crosspieces that further define the glass panels.
- Visible perimeter on both faces
- Optional horizontal or vertical crosspieces

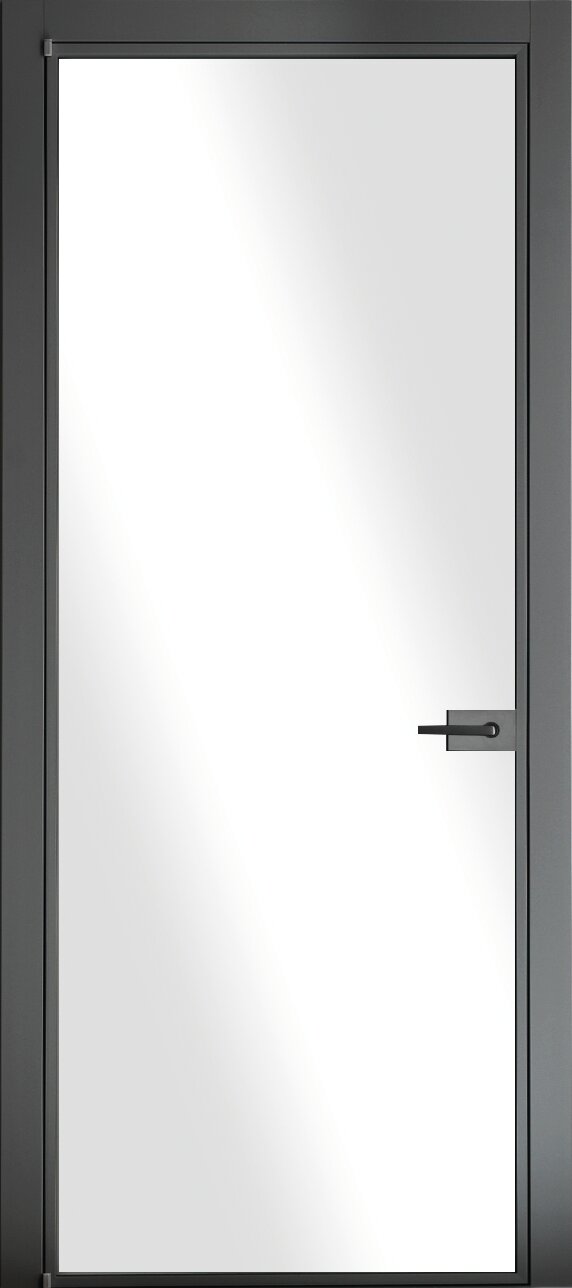

- Specified on Kyra Serie 800 models

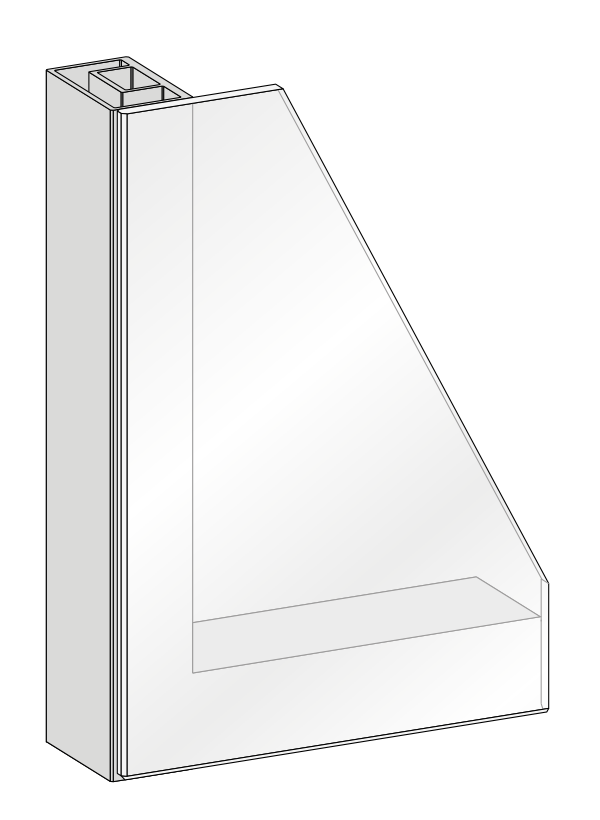

Kumo
Rectangular aluminium profile, visible on one side of the door, while on the opposite side the glass takes centre stage, being the only visible element.
- Visible aluminium on one face only
- Frameless reading from the opposite side

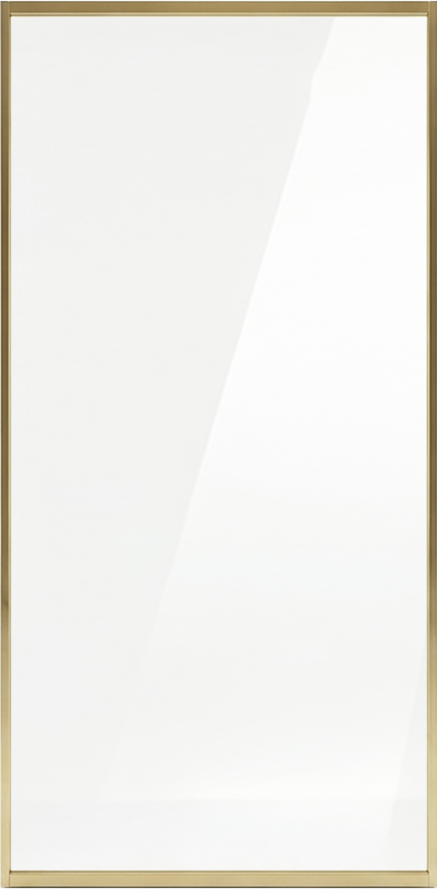

- Specified on Kyra Serie 900 models

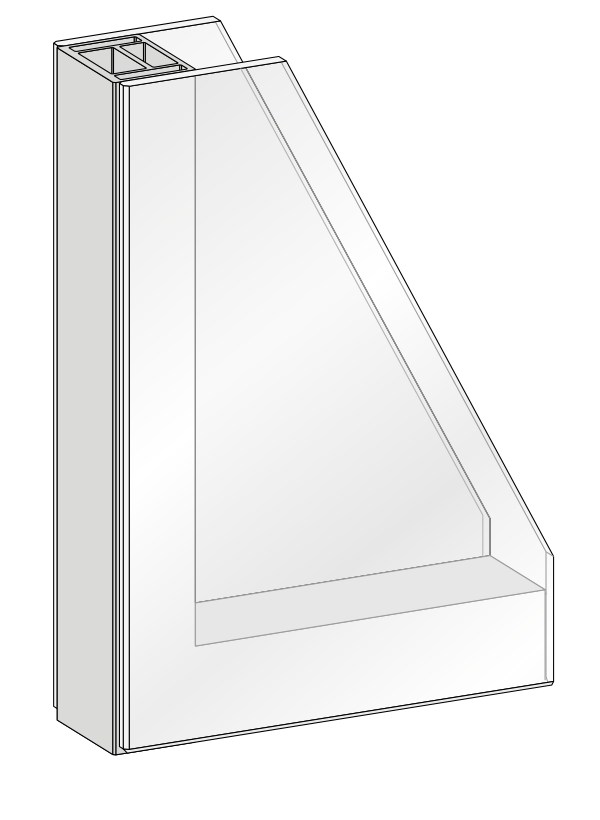

Nami
Aluminium profile that forms the perimeter of the door, covered on both sides by glass. This profile creates a glass panel characterised by maximum cleanliness and elegance.
- Aluminium concealed between two glass faces
- Reads as a continuous glass panel

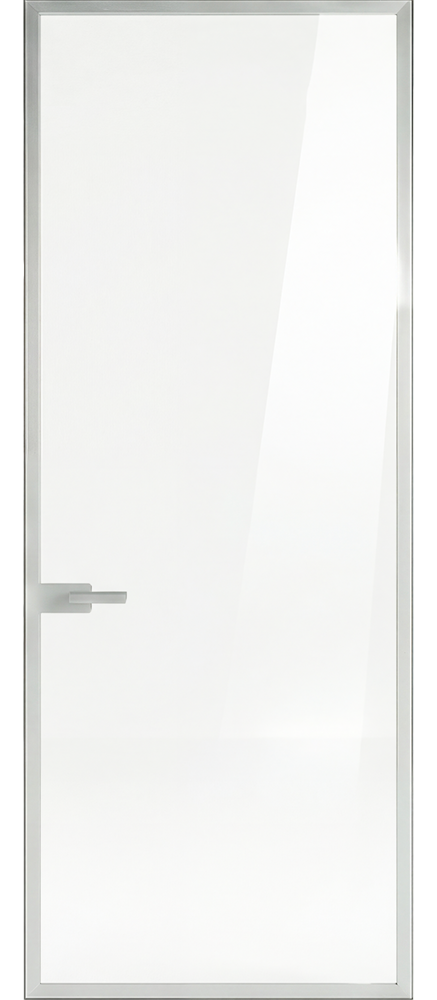

- Specified on Kyra Serie 700 models
Forty-four glass options plus a full aluminium frame palette.
From the Tema custom programme: numbered shiny and opaque glasses, designer-pattern satin decorations (Kiki van Eijk, Defne Koz), engraved decors, sandblasted, laminated-interposed, and the full anodised/painted/brushed aluminium frame palette. Specify any of these on a Kyra door for a project-specific finish.

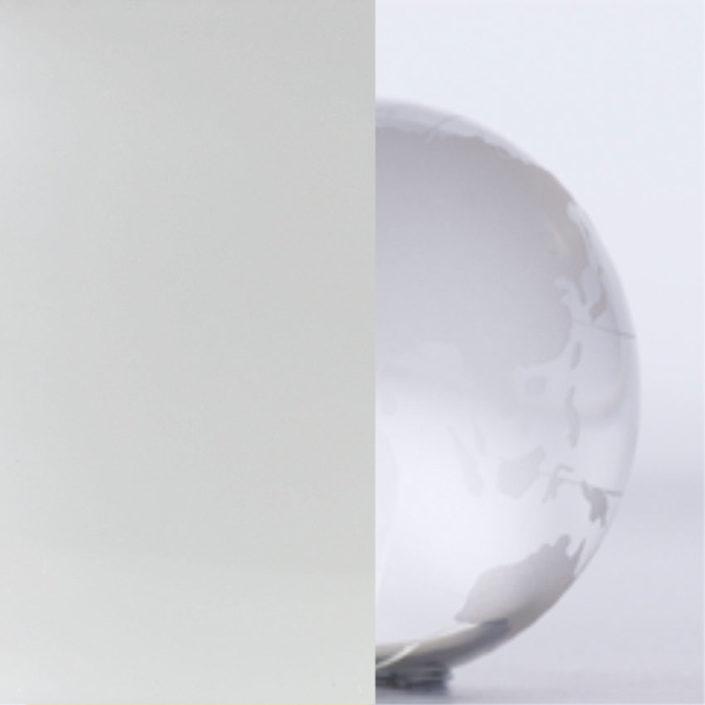

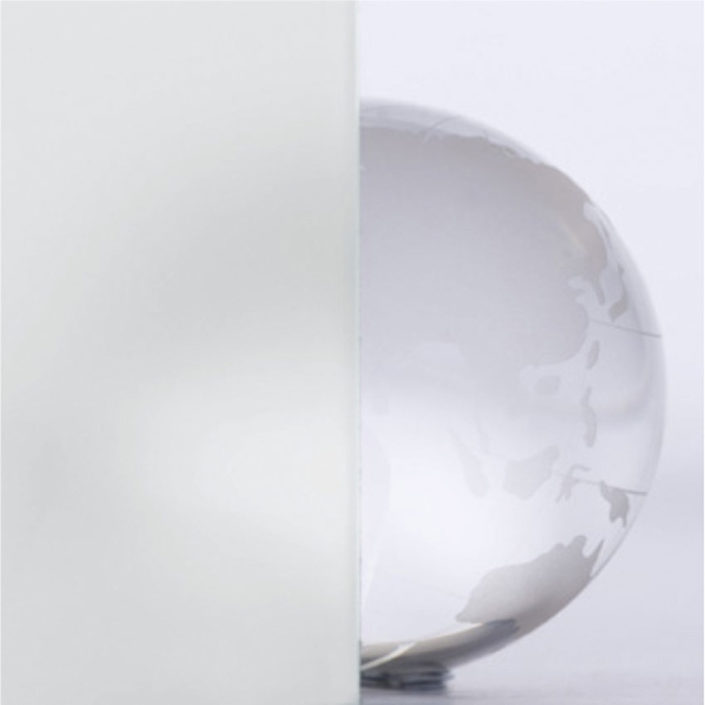

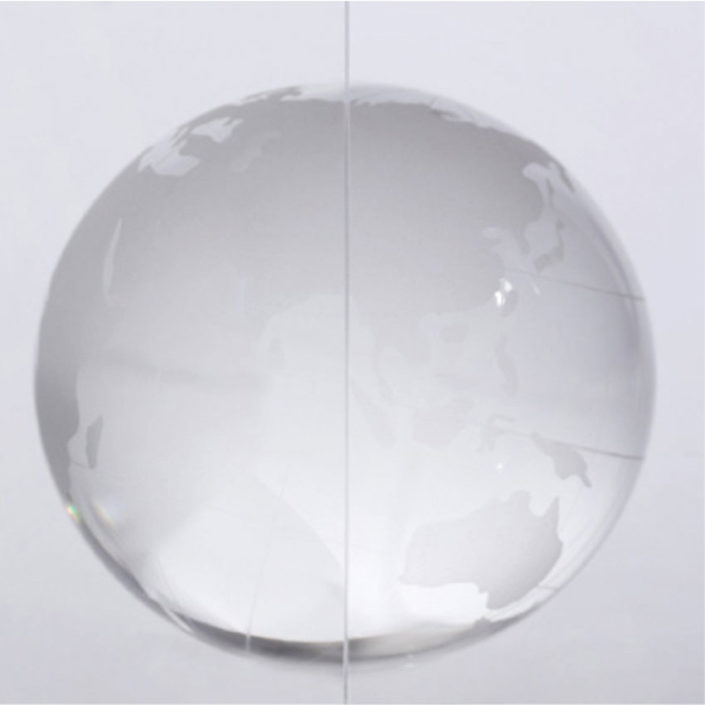

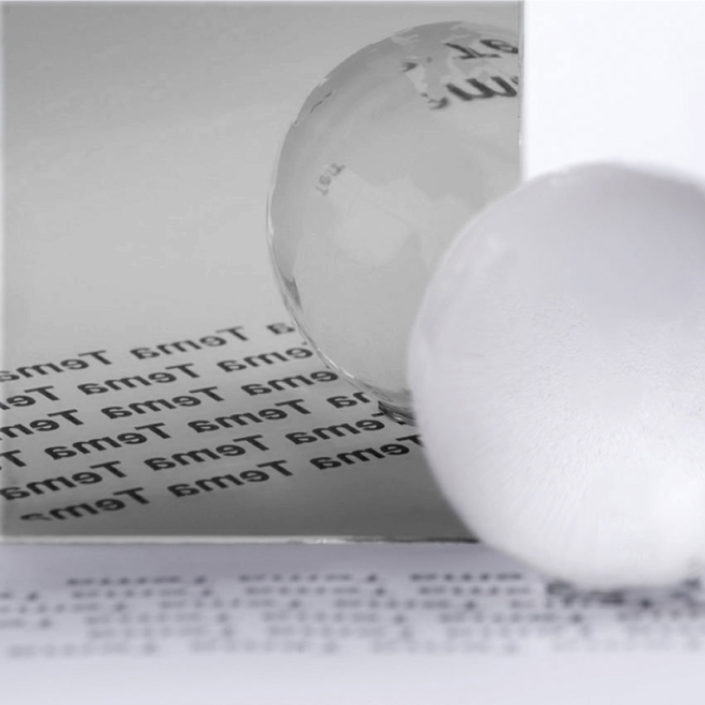

Shiny Glasses · 17

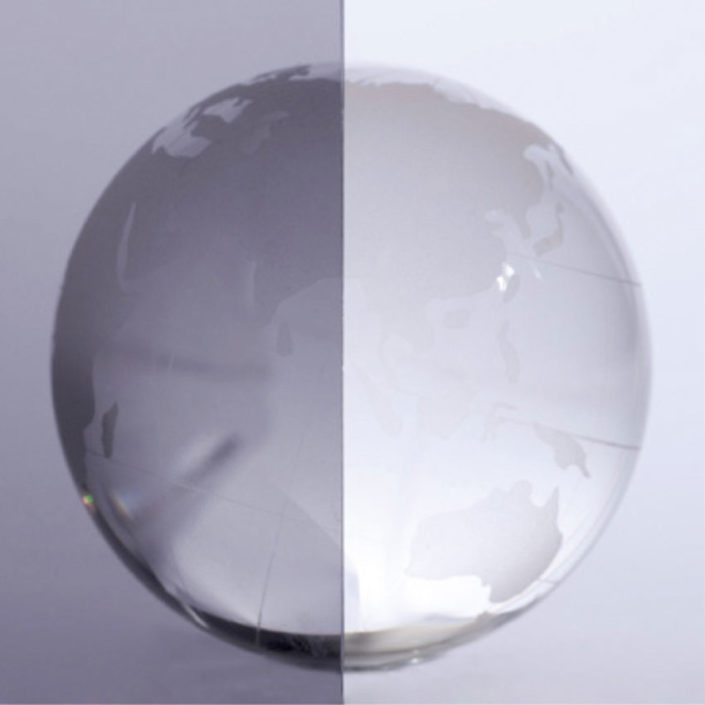

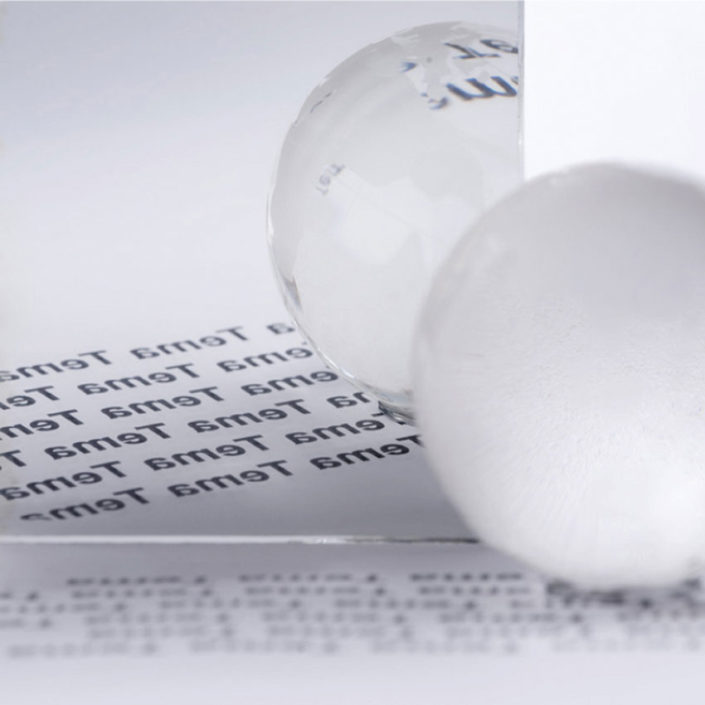

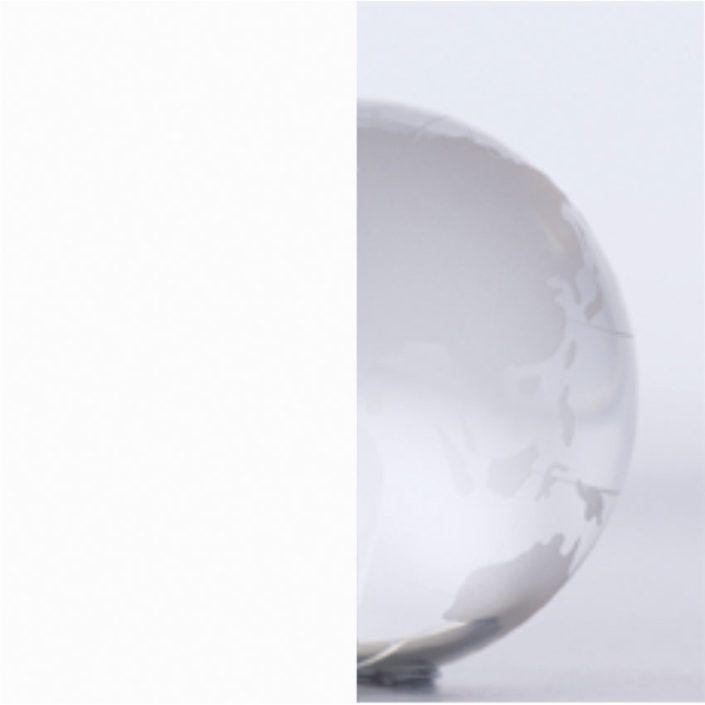

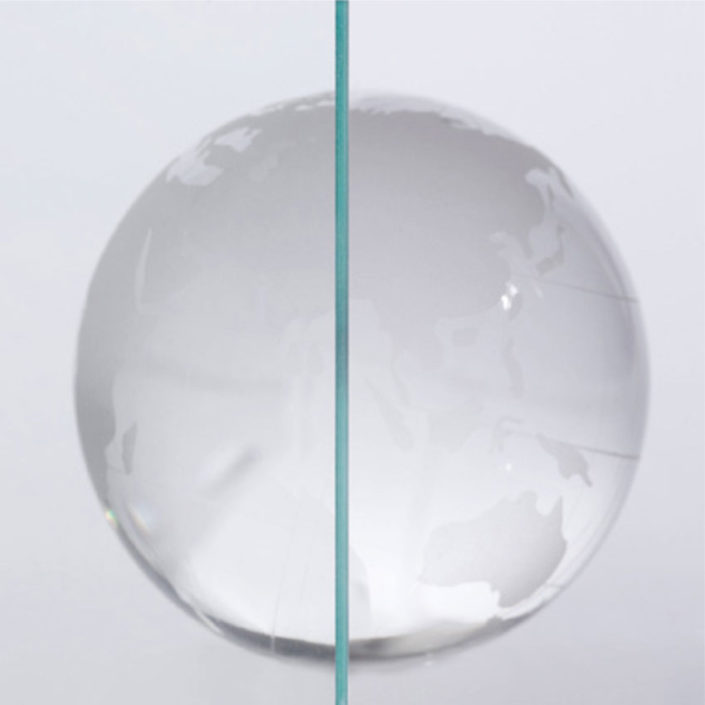

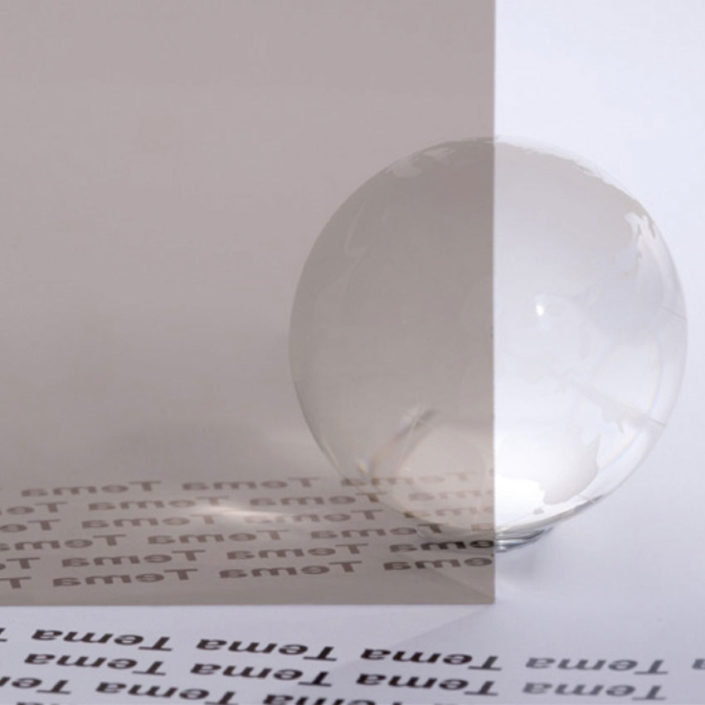

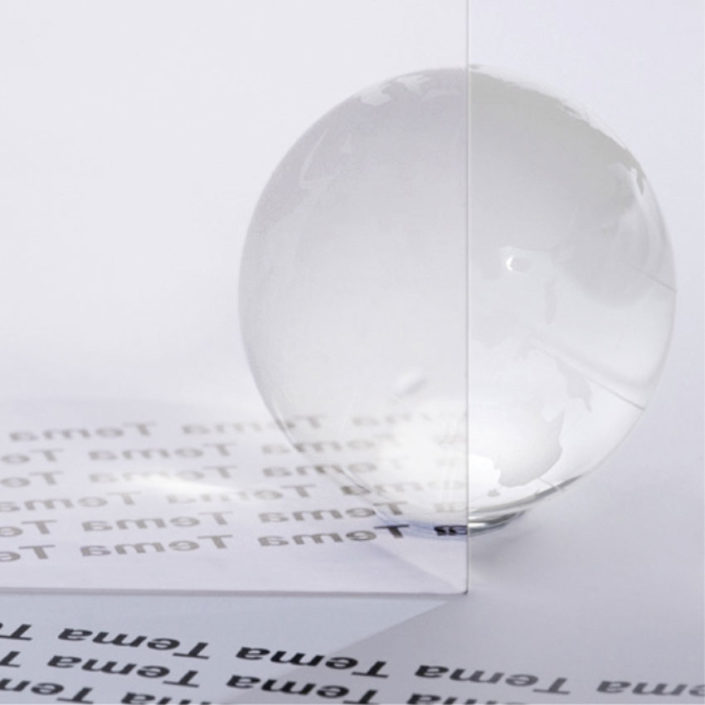

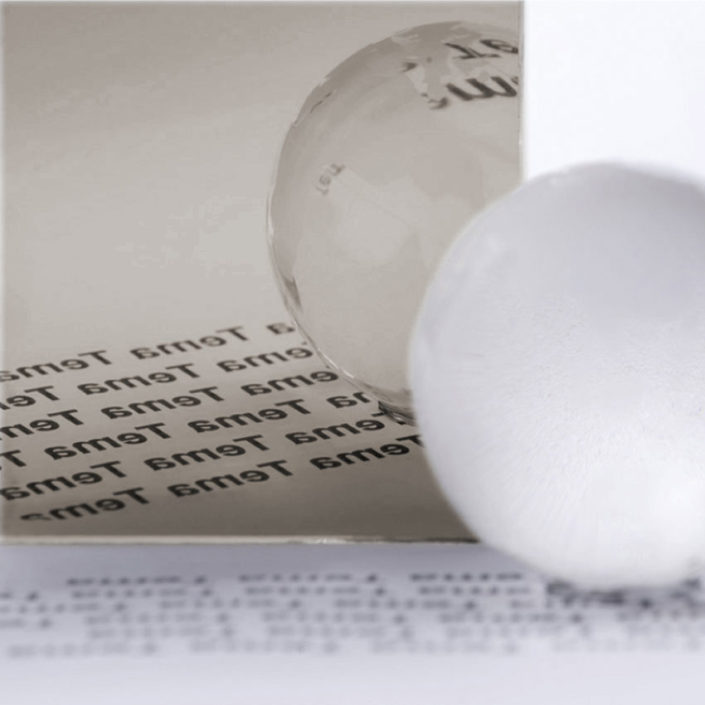

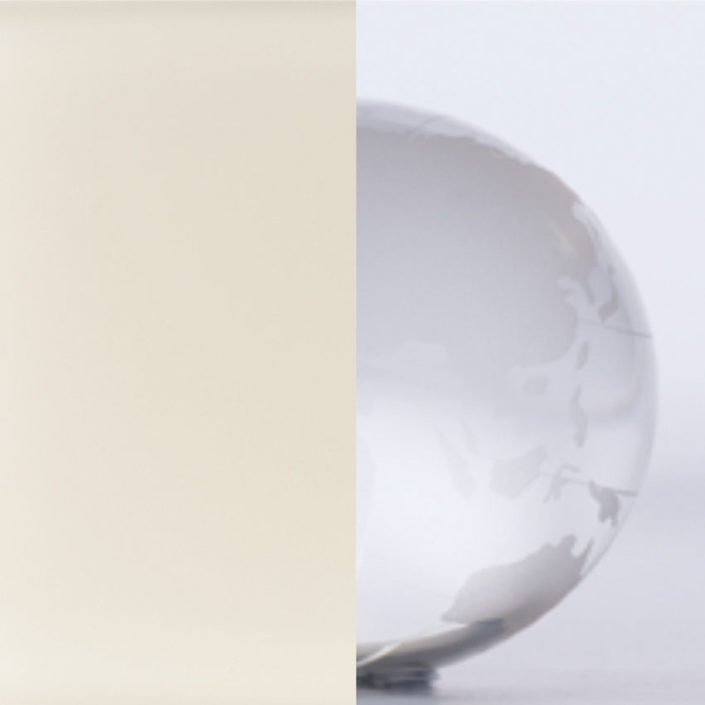

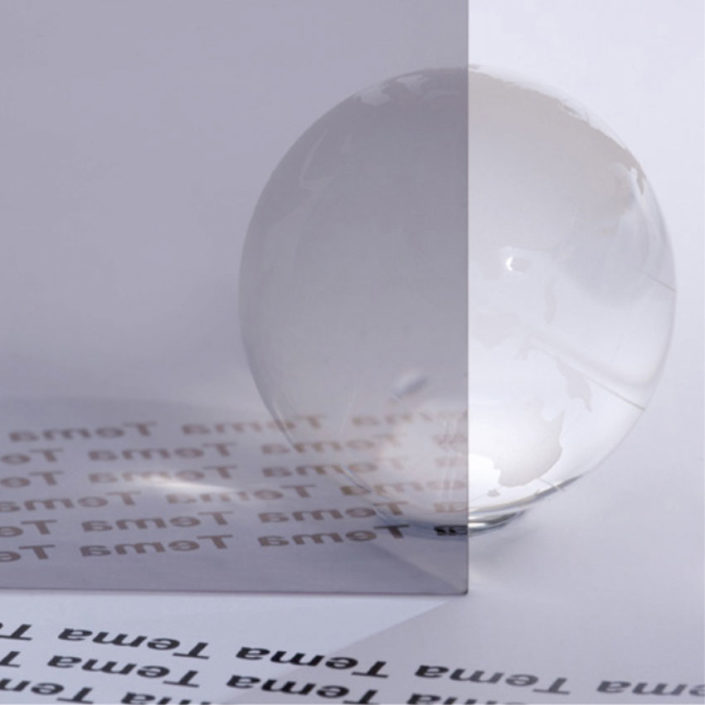

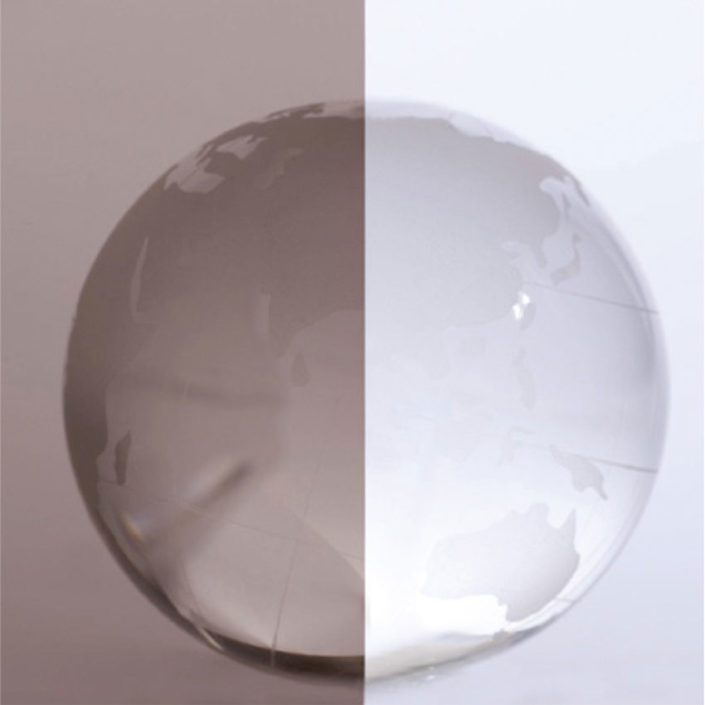

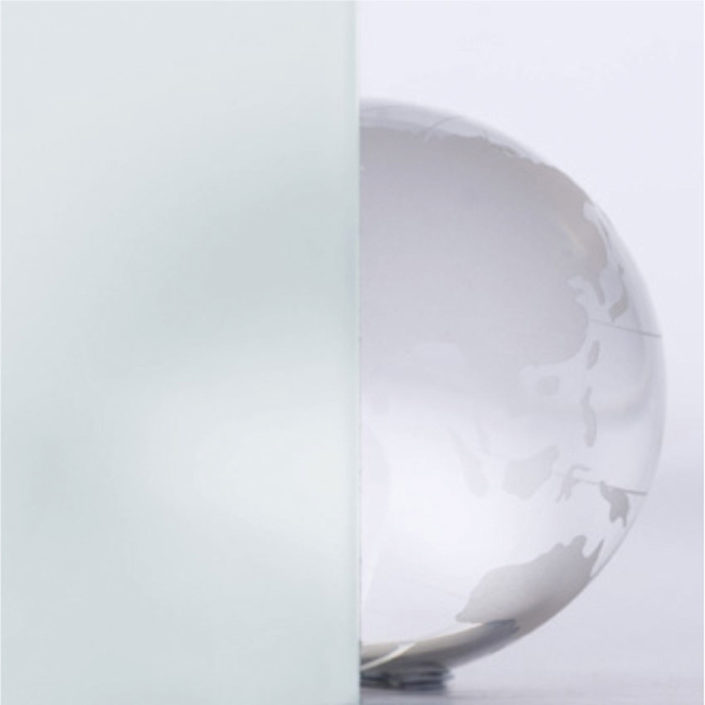

The full bright/glossy palette — clear and tinted transparents, opal stratified, reflective faces, and lacquered glossy whites.

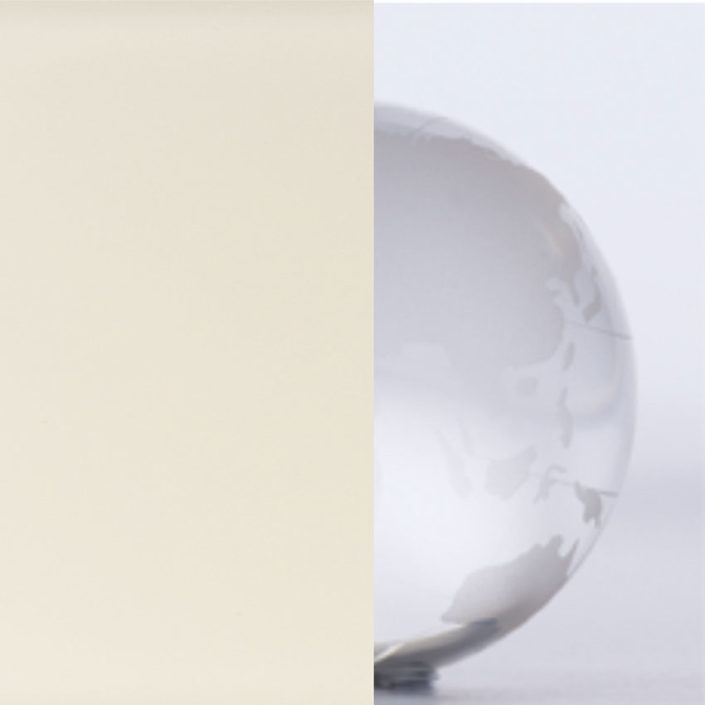

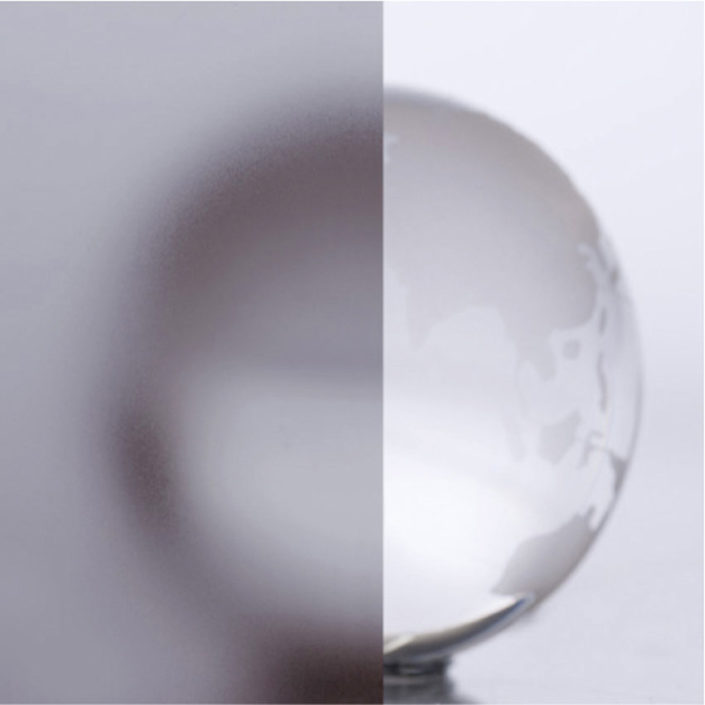

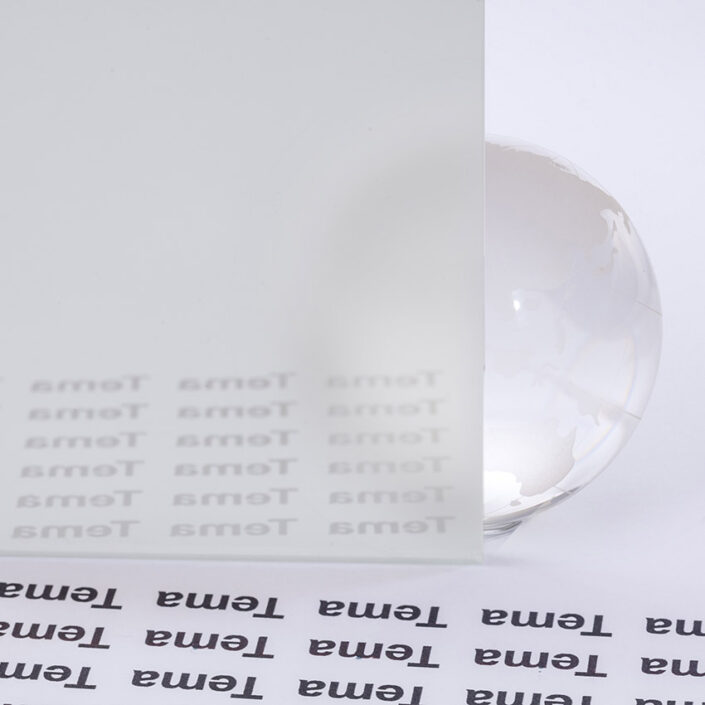

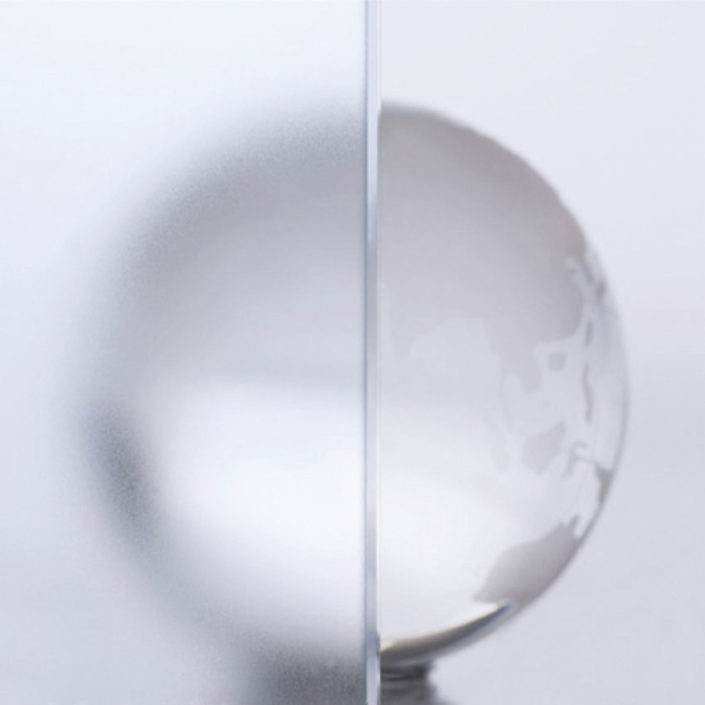

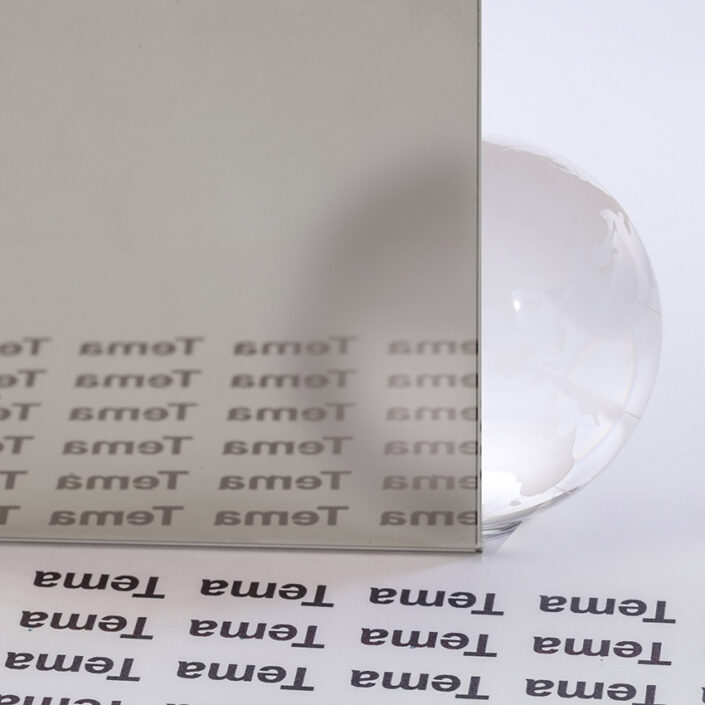

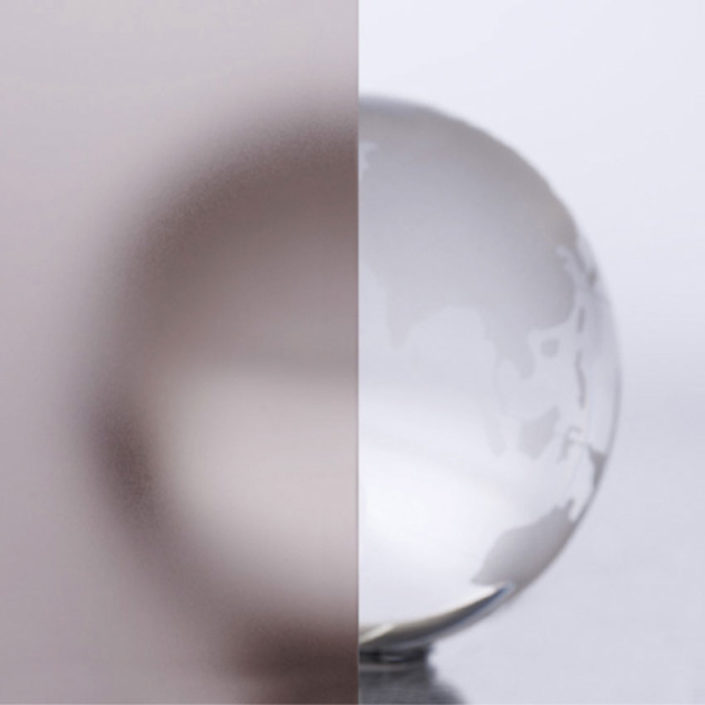

Opaque Glasses · 13

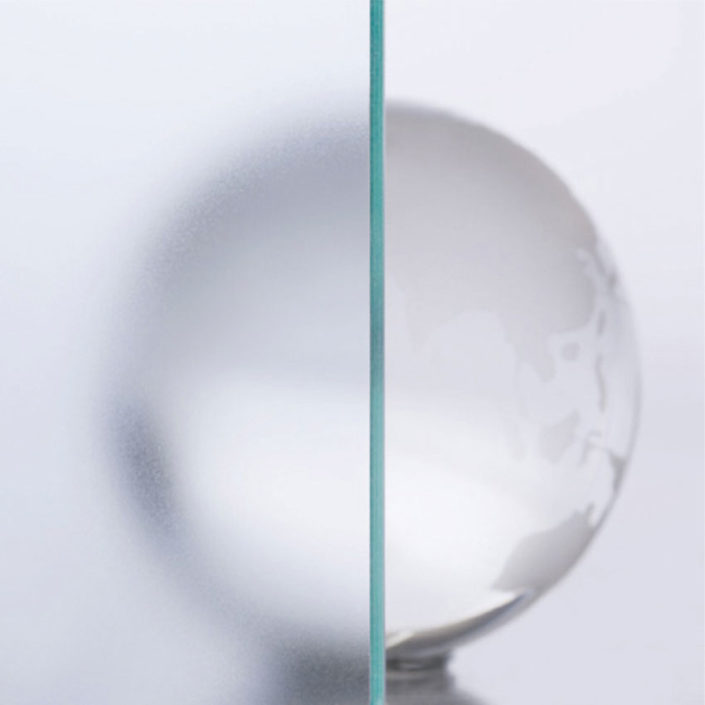

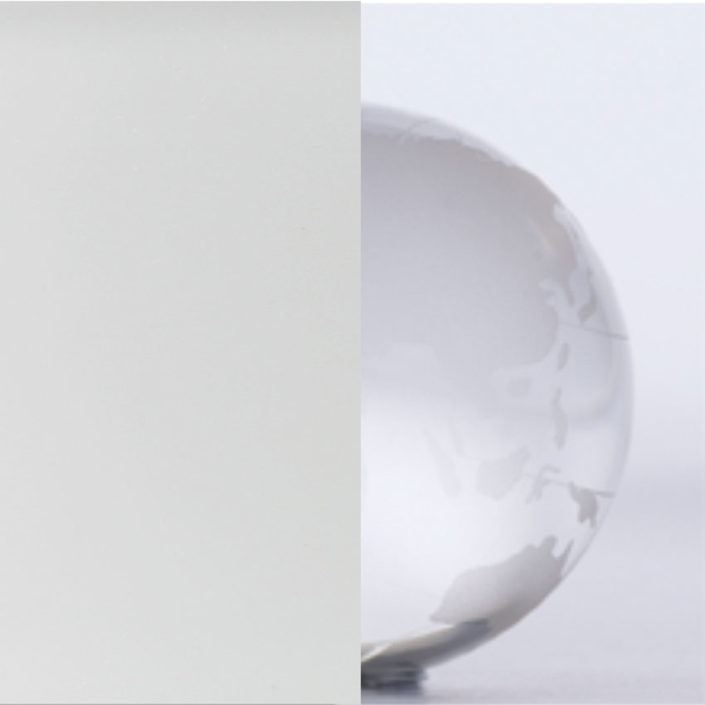

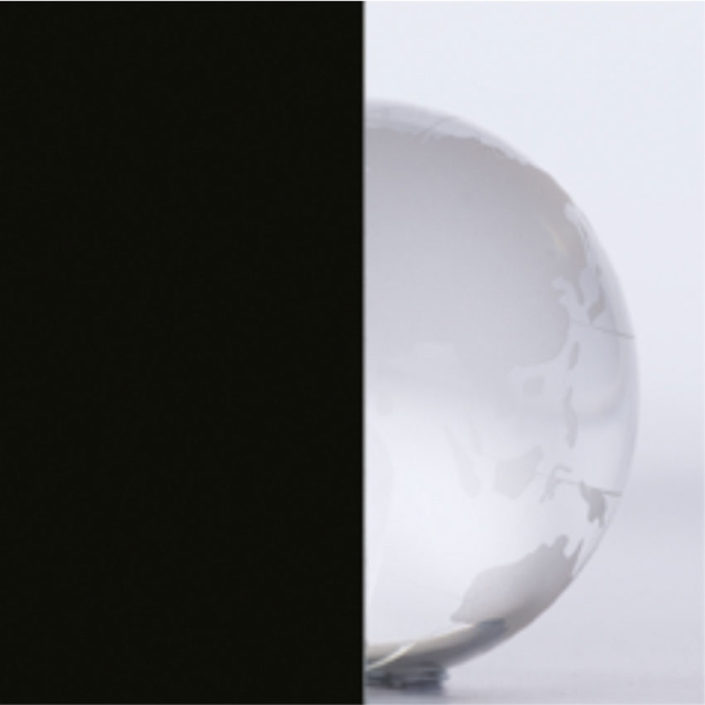

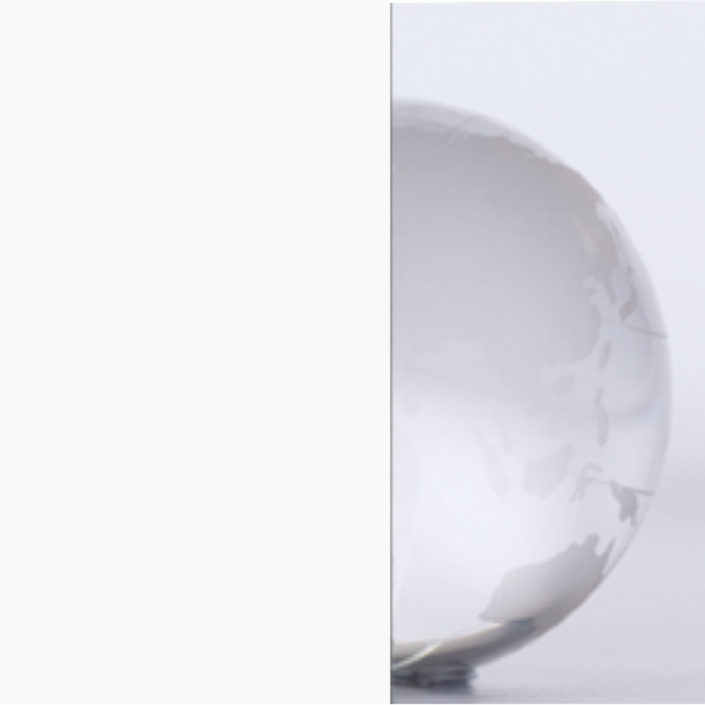

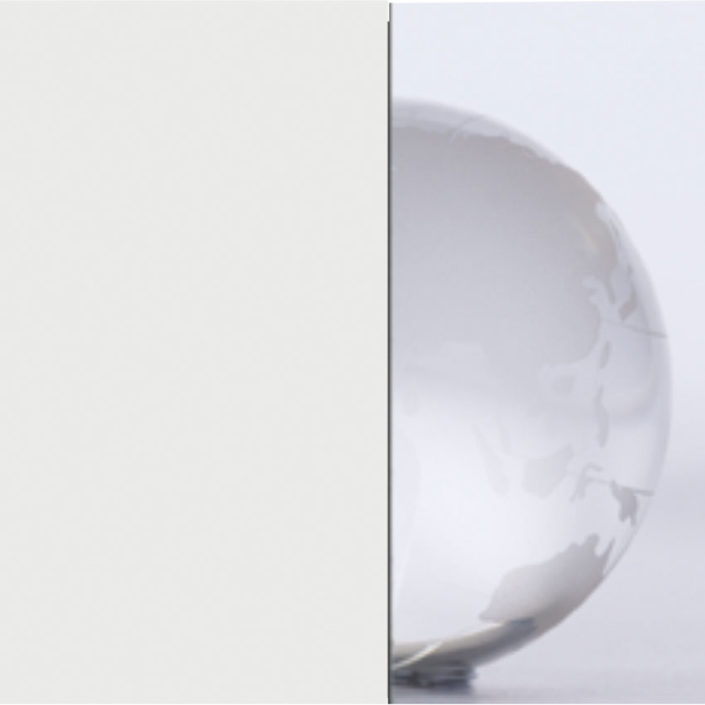

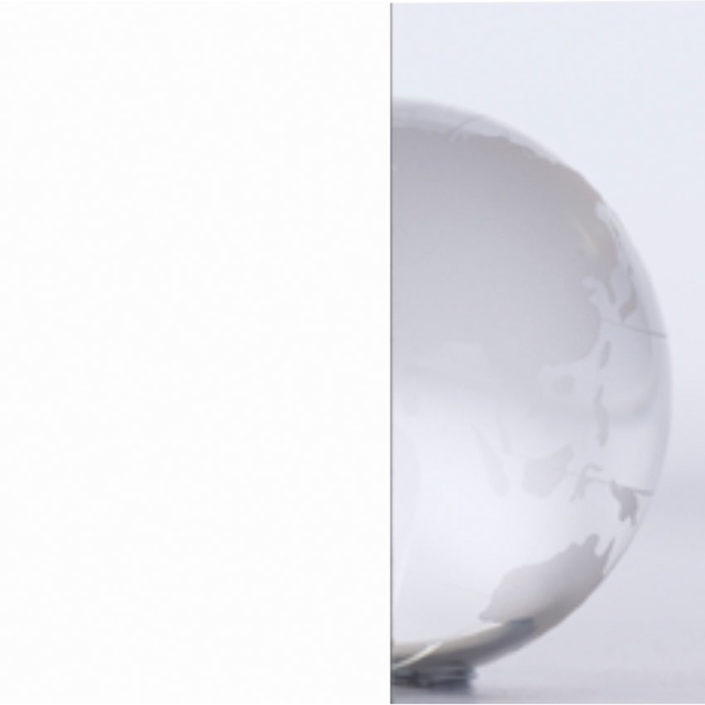

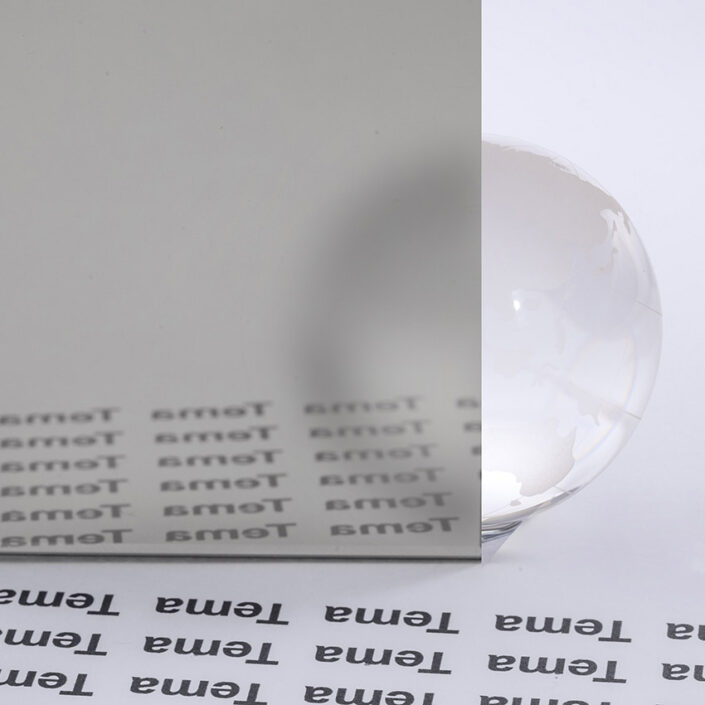

Matt and satin opaque glasses for full visual privacy — laminated, lacquered, reflective satin, and matt mirror.
Engraved Glass · 5

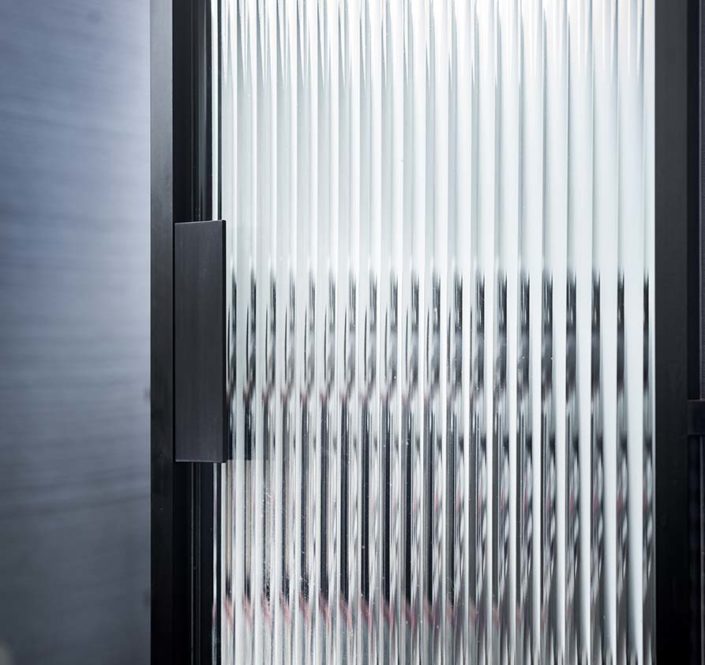

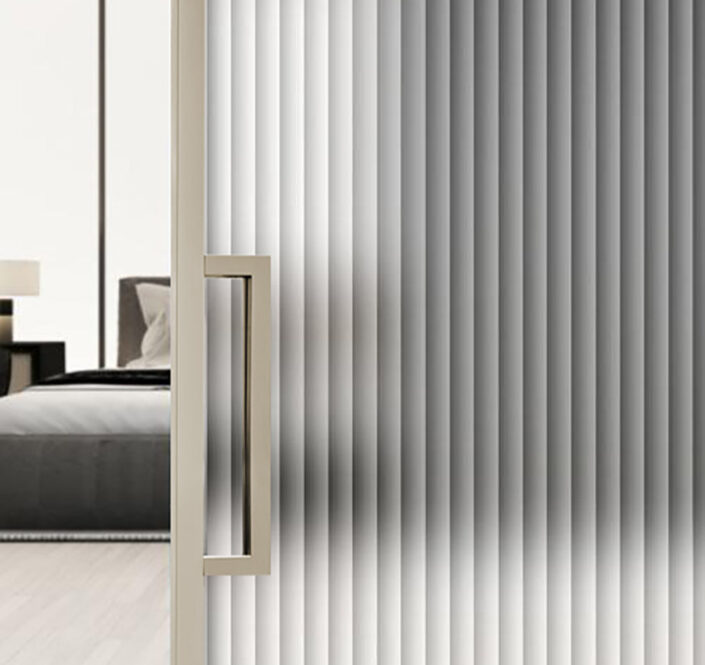

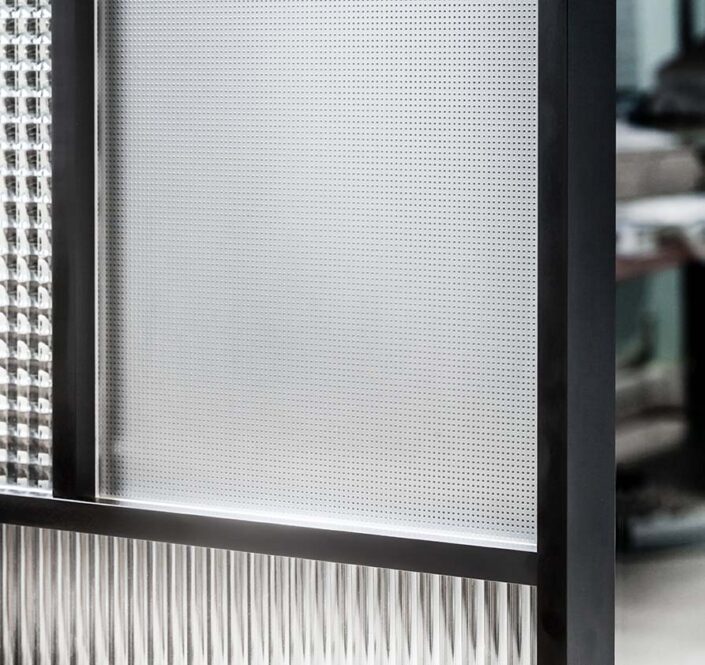

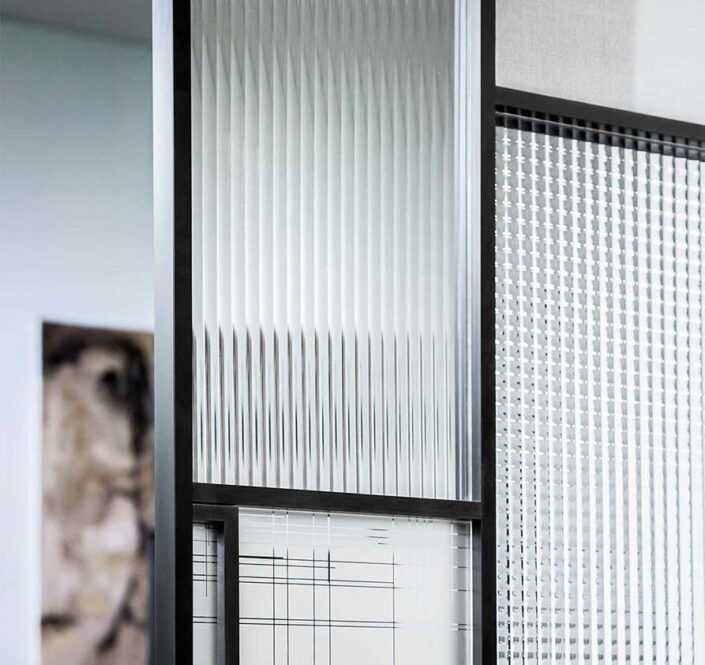

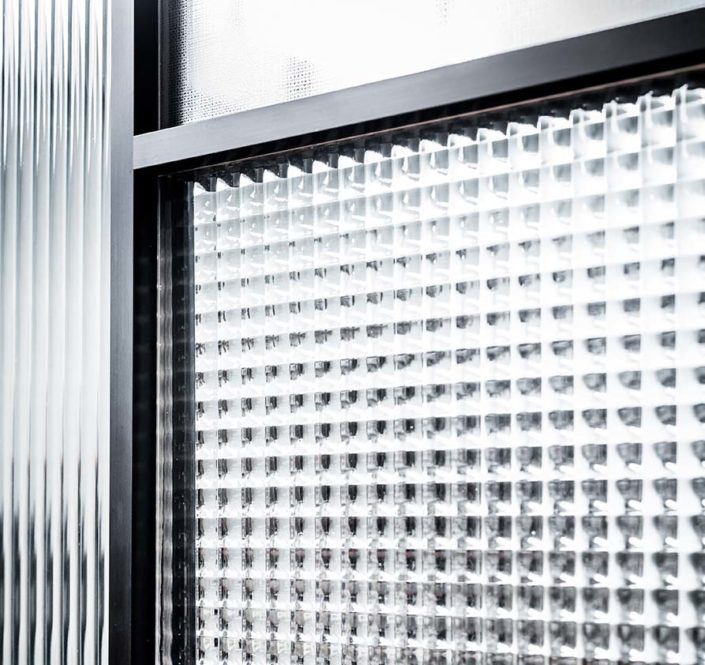

Decorated patterns engraved into the glass surface — Flutes, Quadrionda, Microdot, and mixed incised/satin combinations.

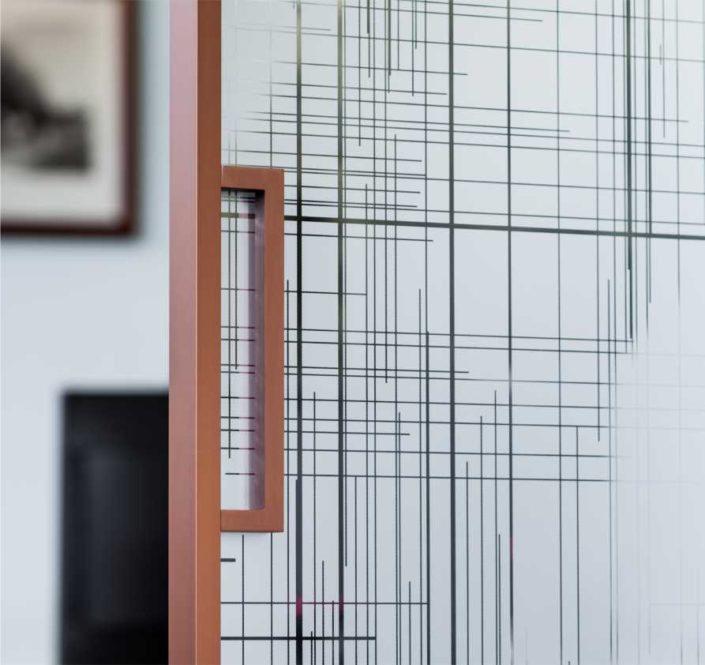

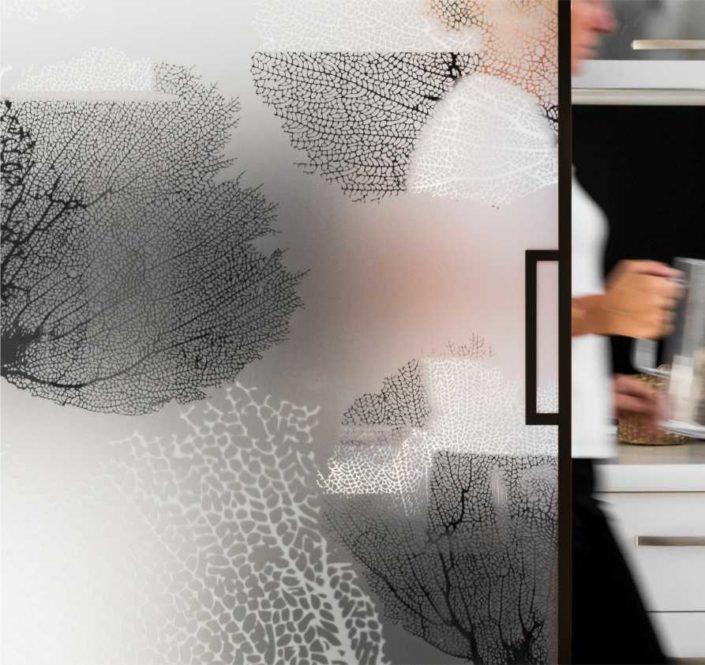

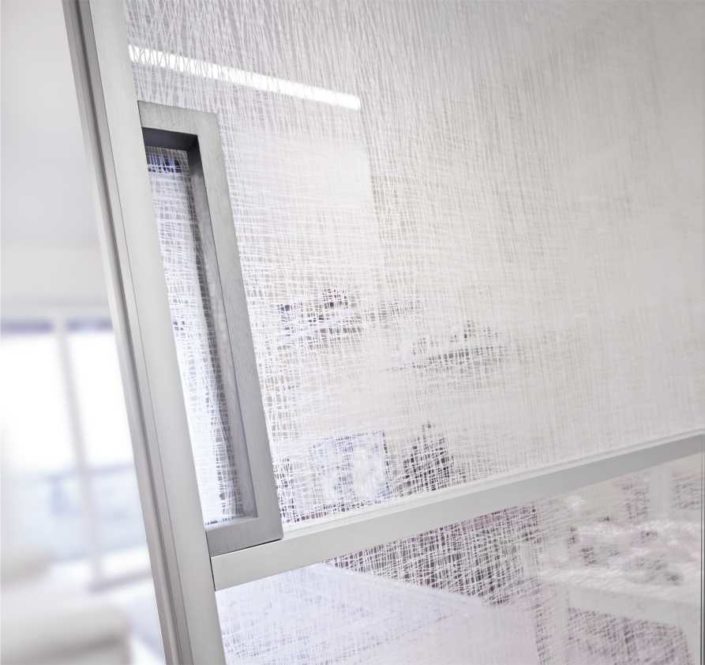

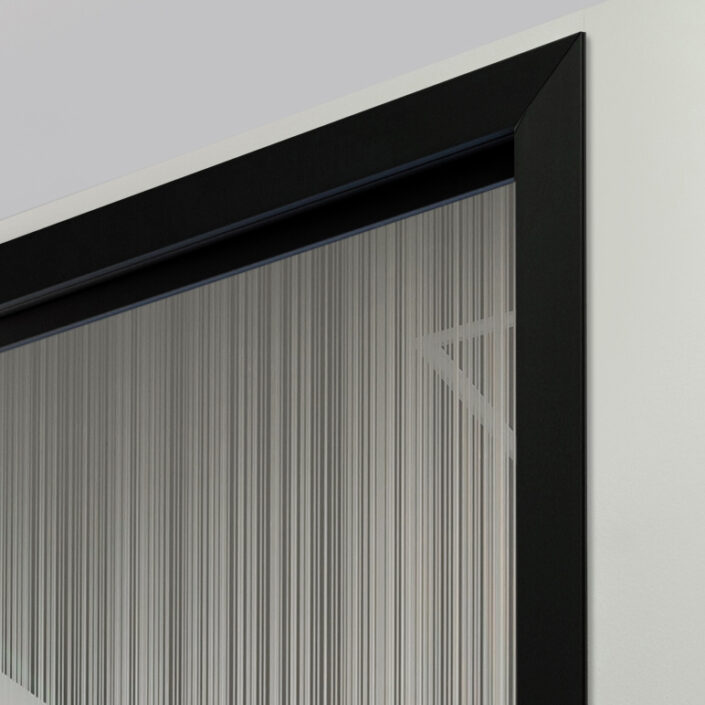

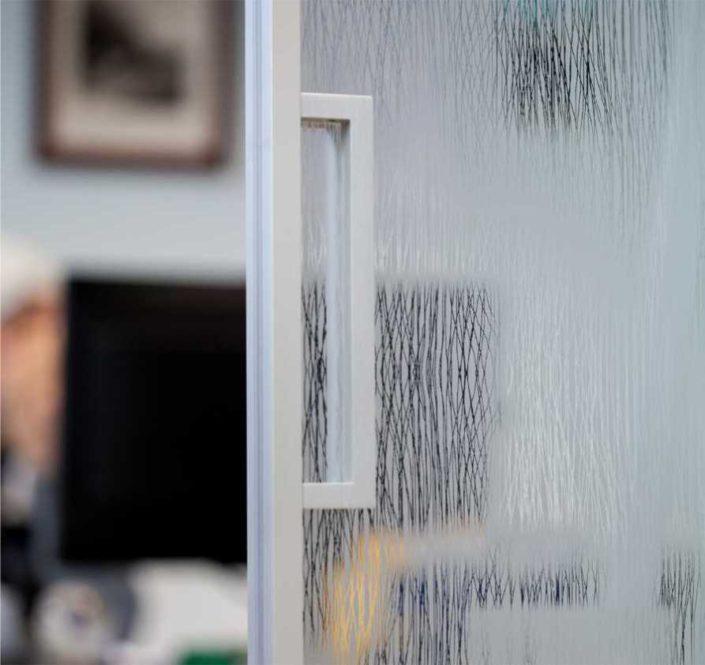

Satin Decorations · 6 (Designer)
Designer-pattern satin decorations from Tema's collaboration programme — Bilinea, plus signature works by Kiki van Eijk and Defne Koz.

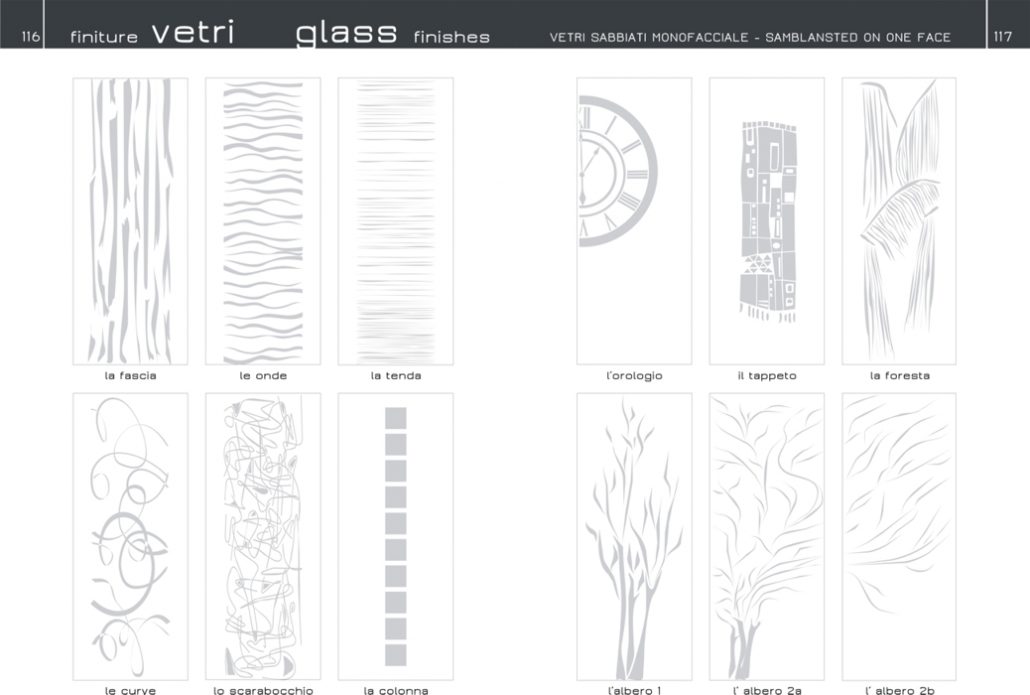

Sandblasted Decorations · 1
Base sandblasted glass with masked patterns — the foundation finish onto which custom motifs can be applied.

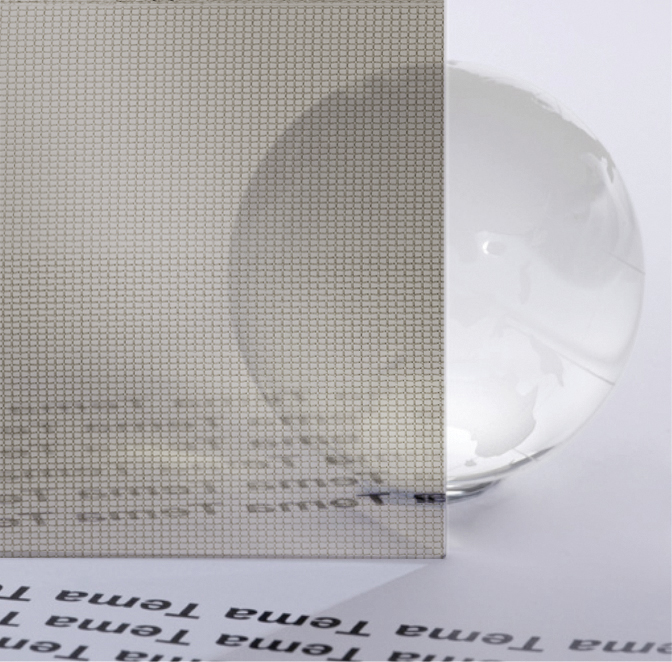

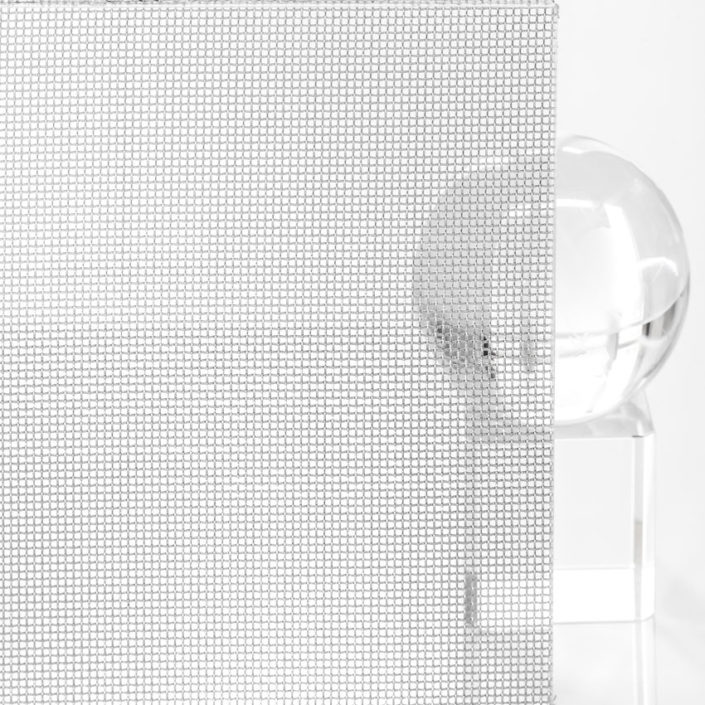

Laminated · Interposed Elements · 2

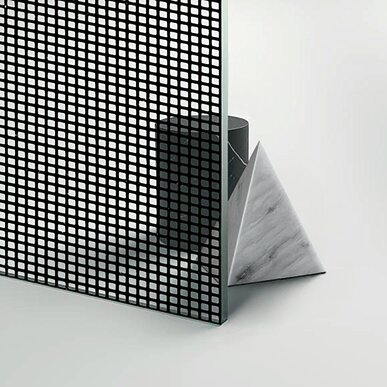

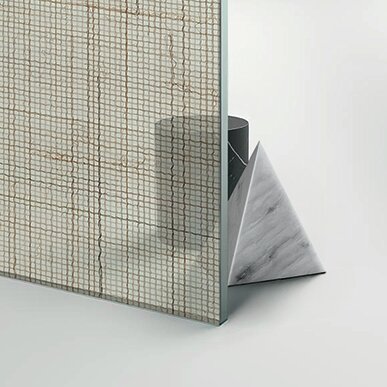

Two glass layers sandwiching a Mesh inlay — extra-clear or reflective bronze. The interposed material can be replaced with custom textiles or films on request.

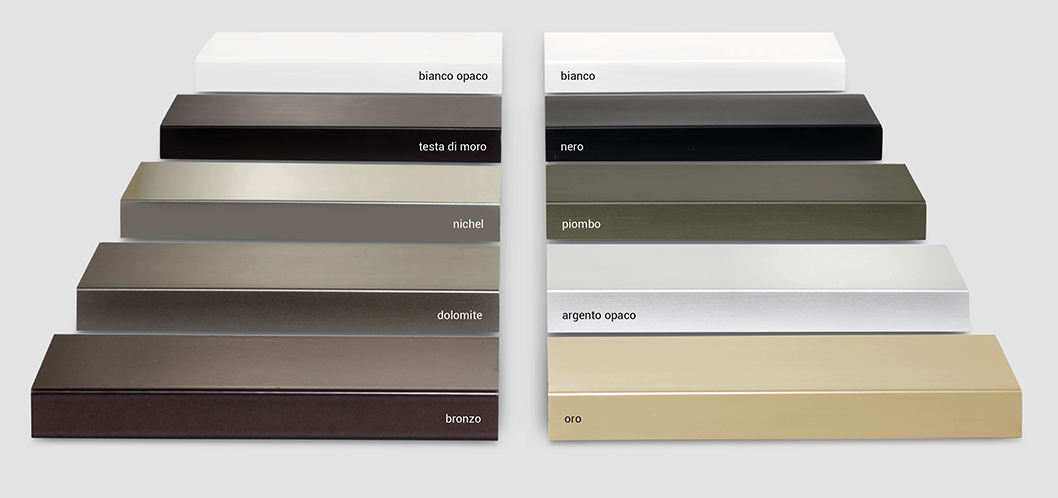

Aluminium · Frame Palette
The full aluminium palette covers anodised, painted, and brushed finishes for door frames and trim. Reference codes and physical samples are available at the showroom.
Custom finishes are quoted per project — lead times vary by glass treatment and aluminium finish. Request physical samples or book a showroom visit.
Ten systems across swing, sliding, folding and pivot.
The nine aluminium-framed glass systems from CB Systems’ Girovetro catalogue (Cellatica, Brescia): three telescopic swing frames — Life, Compact and Micro — three pocket-door casings including the frameless Filomuro, the wall-mounted Slide on one, two or three tracks, the folding Fold and the 44 mm Pivot. All share one profile palette (anodized silver; white, black and brown; bronze, champagne and gold; any RAL on request) and the same safety-glass families. Terno’s Pop Series invisible slider closes the list. Click any system for dimensions, fixing drawings and hardware.

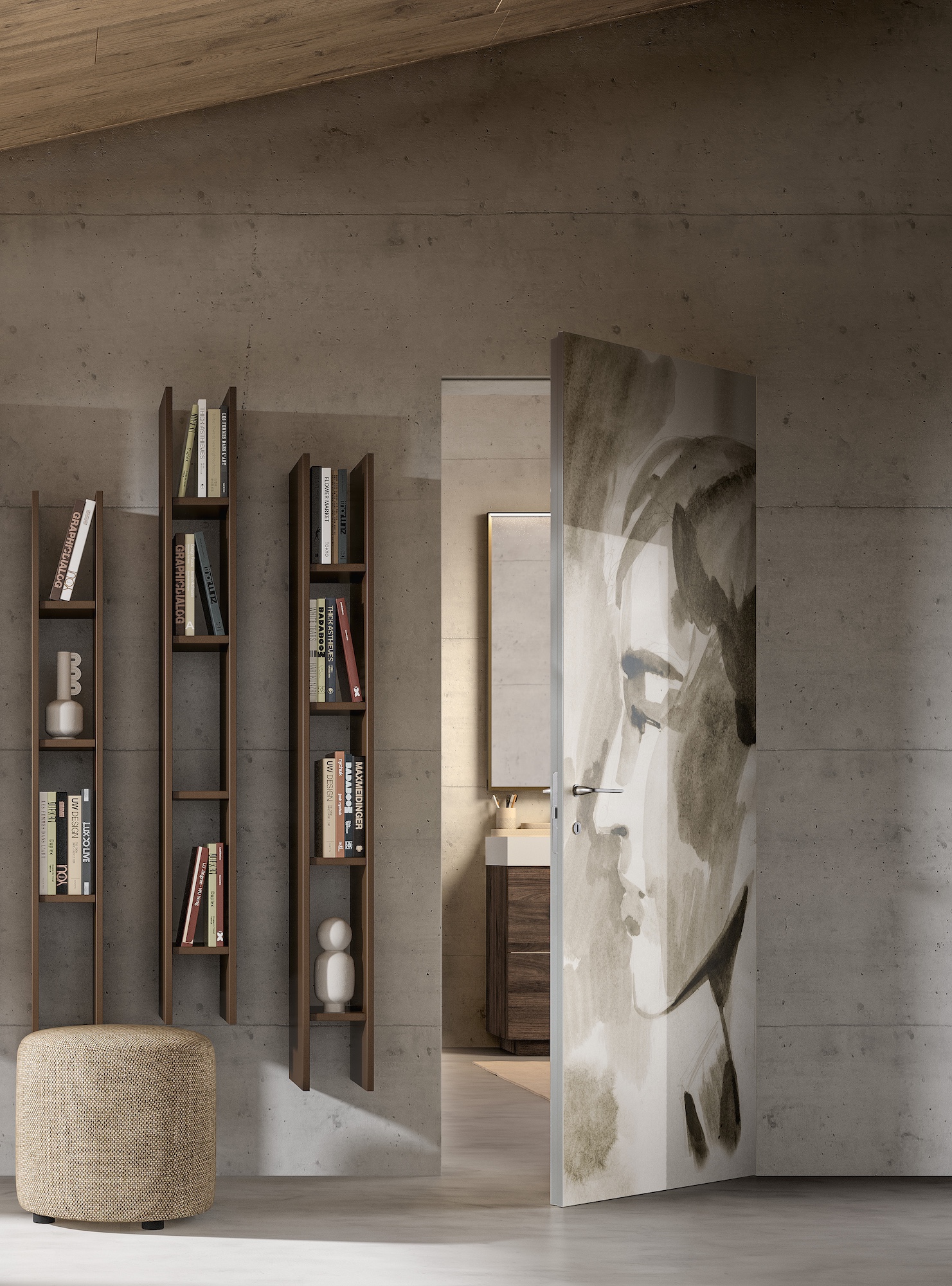

Life
CB's full-architrave swing door: a telescopic aluminium frame with an 82 mm casing that reads as a crisp, continuous line around the leaf. Clean lines, total reliability.
- 600–1000 mm single-leaf width
- 1600–2700 mm leaf height
- 82 mm architrave
Compact
The slimmer swing door: the same telescopic frame as Life with a 37 mm casing, so the aluminium almost disappears and the glass carries the room.
- 600–1000 mm single-leaf width
- 1600–2700 mm leaf height
- 37 mm architrave
Micro
The thinnest of the three swing frames: a minimal aluminium profile fitted inside the door opening with a compensator, for walls from 45 to 50 mm.
- 600–1000 mm single-leaf width
- 1600–2700 mm leaf height
- 19 mm visible frame face

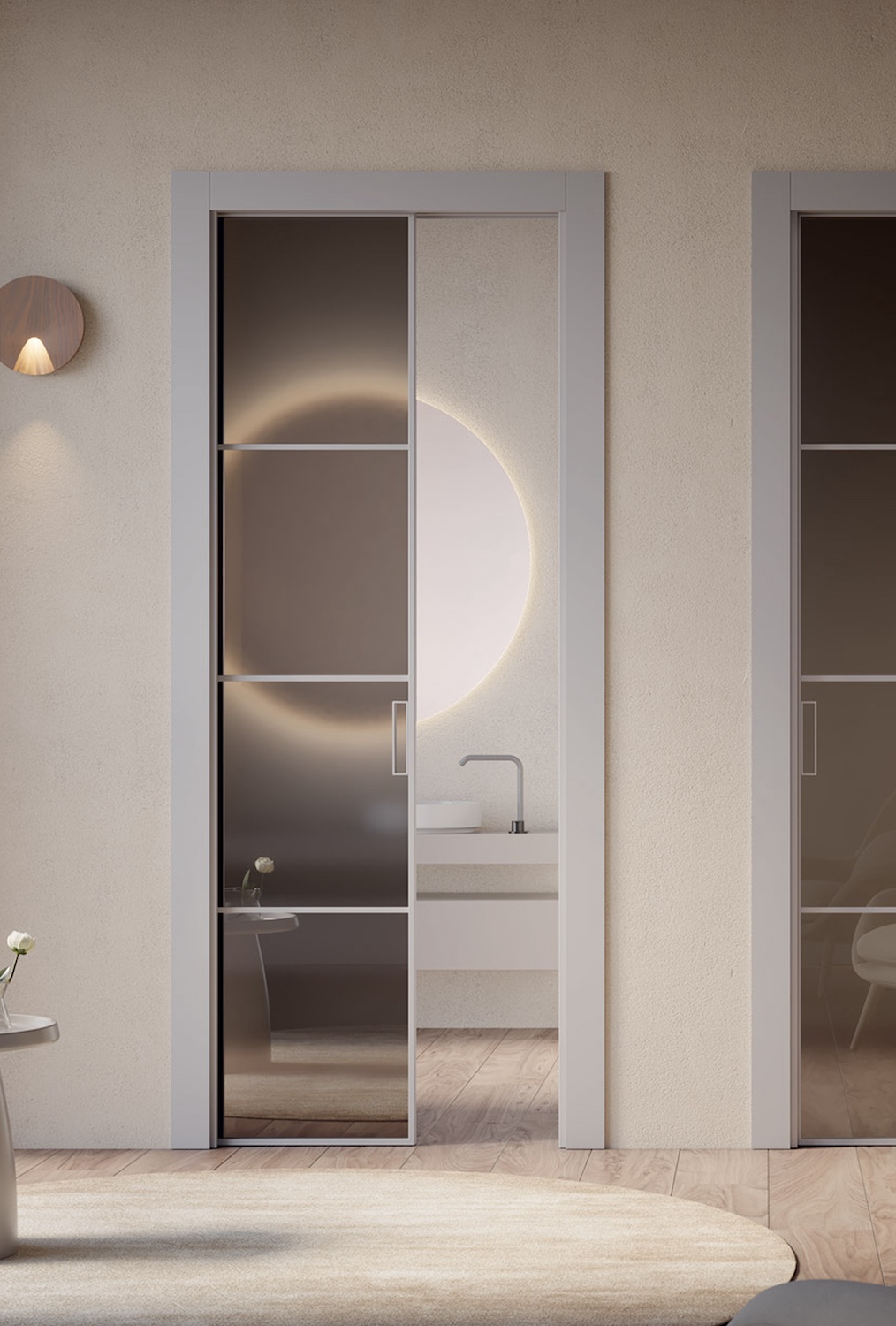

Life Pocket
The Life frame for pocket doors: a telescopic aluminium casing that finishes the wall opening while the glass leaf slides into a standard pocket box.
- 600–1100 mm single-leaf width
- 1600–2700 mm leaf height
- 44 mm leaf clearance in the box
Compact Pocket
The slimmer pocket-door casing: 50 mm of aluminium around the opening, compatible with standard pocket boxes, with the same glass and hardware as Life.
- 600–1100 mm single-leaf width
- 1600–2700 mm leaf height
- 44 mm leaf clearance in the box
Filomuro
The frameless pocket door: no casing at all. The glass leaf slides straight out of the finished wall, flush, with only the slim aluminium leaf edge visible.
- 600–1000 mm single-leaf width
- 1600–2700 mm leaf height
- 8 / 10 mm safety glass

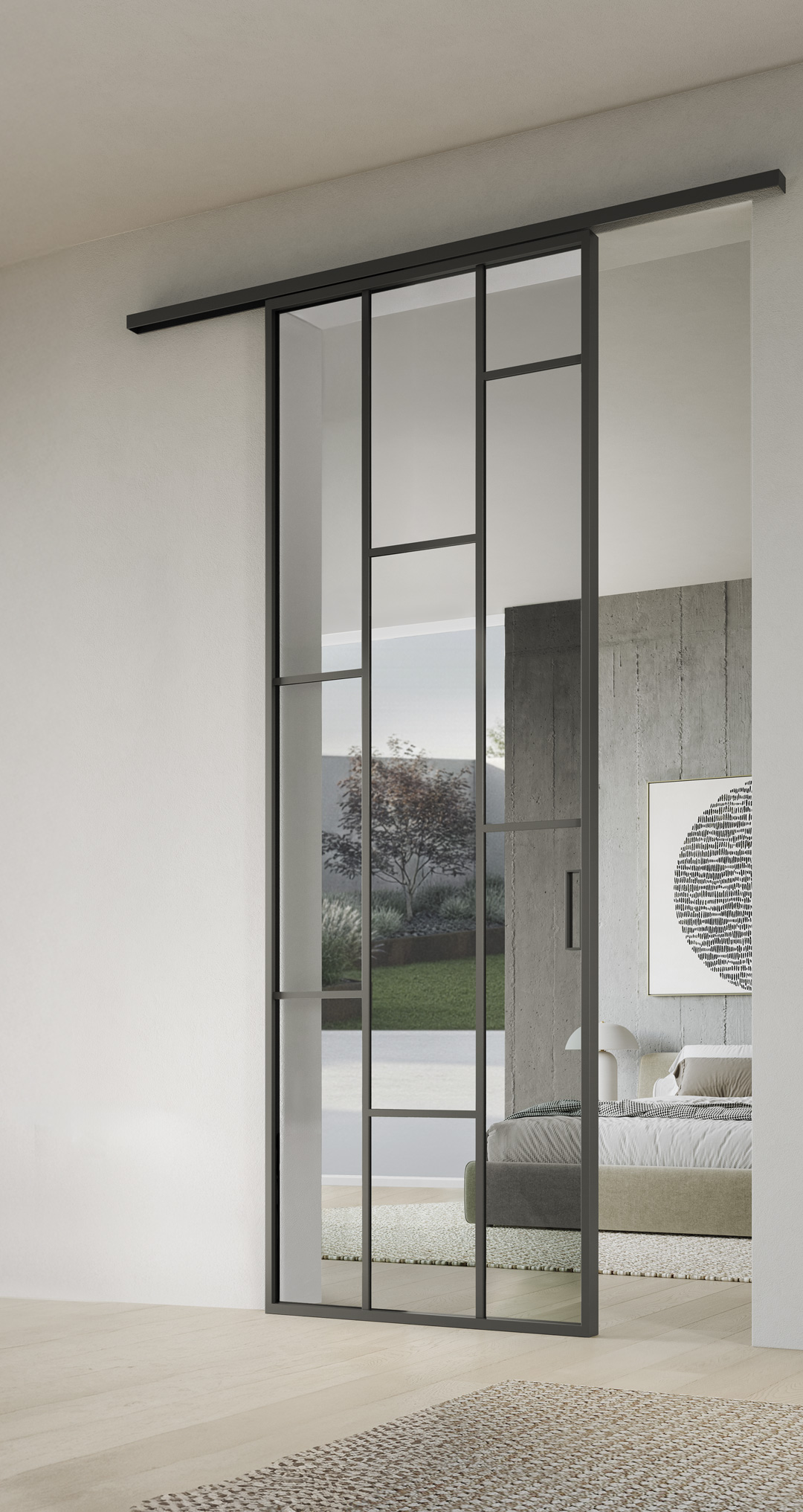

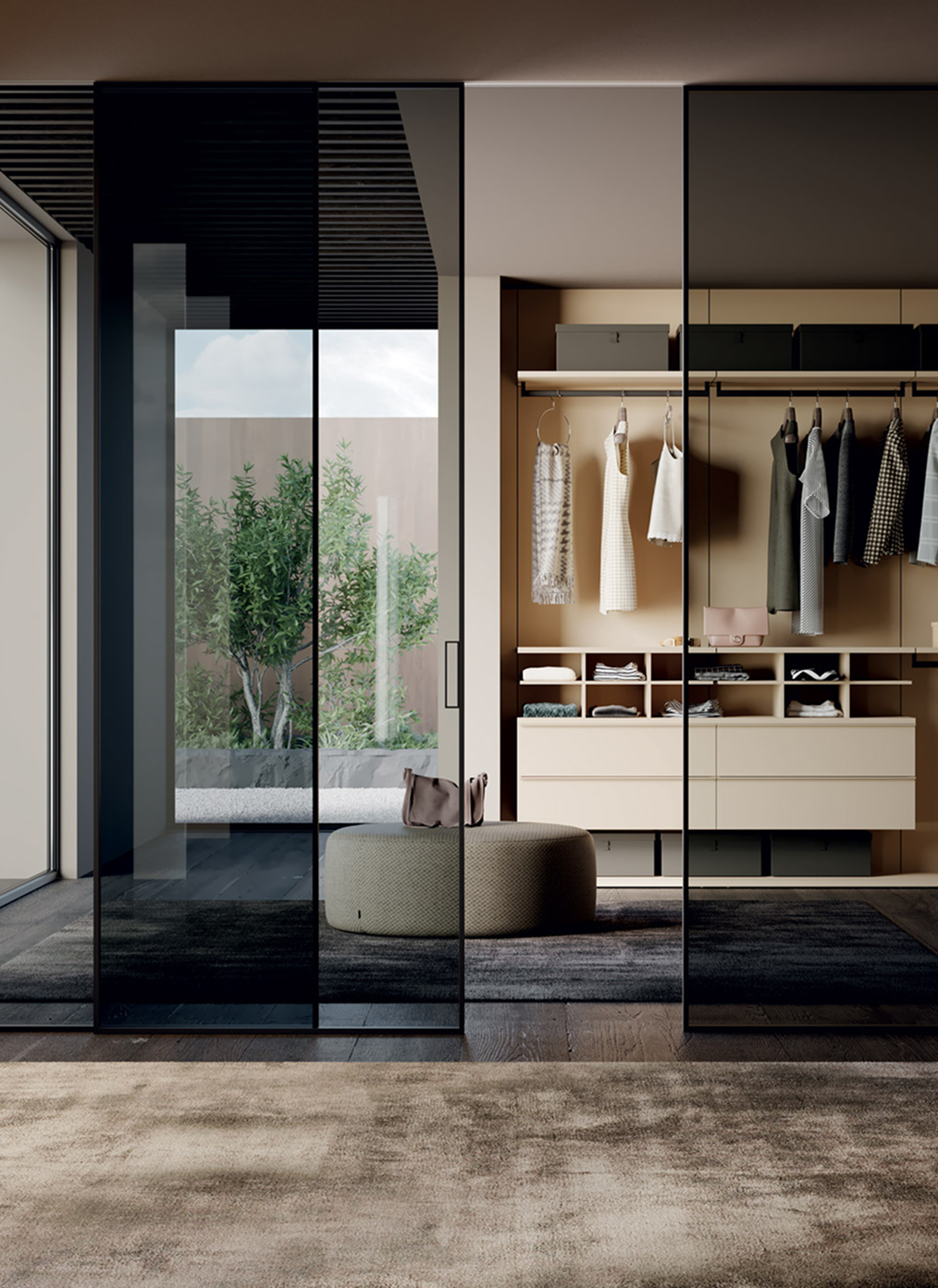

Slide
The wall-mounted slider: a recessed aluminium track for one, two or three leaves, with a quick concealed attachment to the carriages and optional soft-close.
- 600–1200 mm leaf width
- 1800–2700 mm leaf height
- up to 6000 mm track length
Fold
The folding glass door: leaf pairs that concertina along a single recessed track, inside or outside the opening, for passages from 800 to 2400 mm.
- 800–2400 mm clear opening
- 1600–2700 mm leaf height
- 2 or 4 leaves

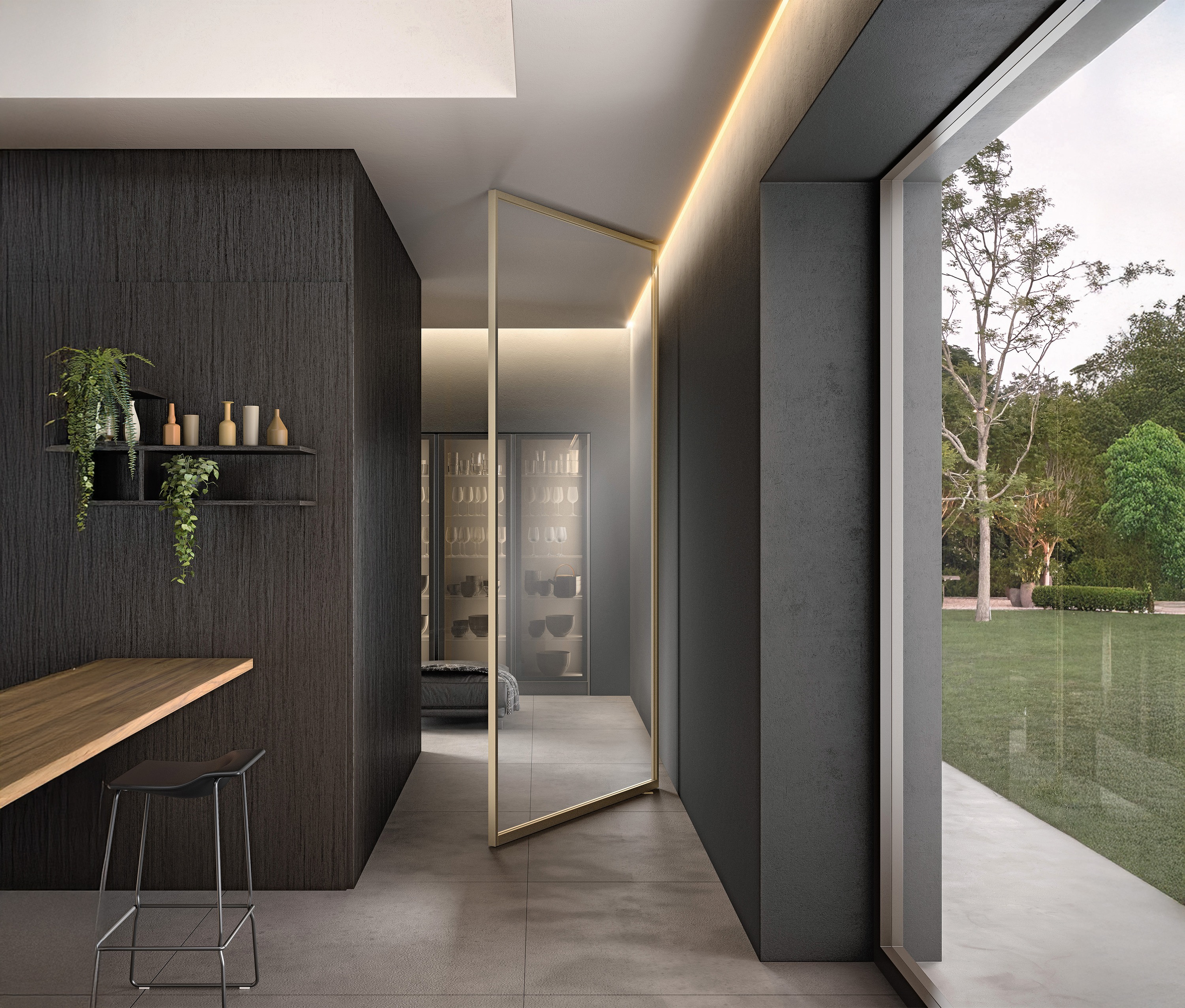

Pivot
The pivot glass door: a 44 mm aluminium-framed leaf that turns on a floor-and-head pivot to 90°, up to 3 metres tall and 1.5 metres wide.
- 600–1500 mm leaf width
- 1600–3000 mm leaf height
- 90° side opening

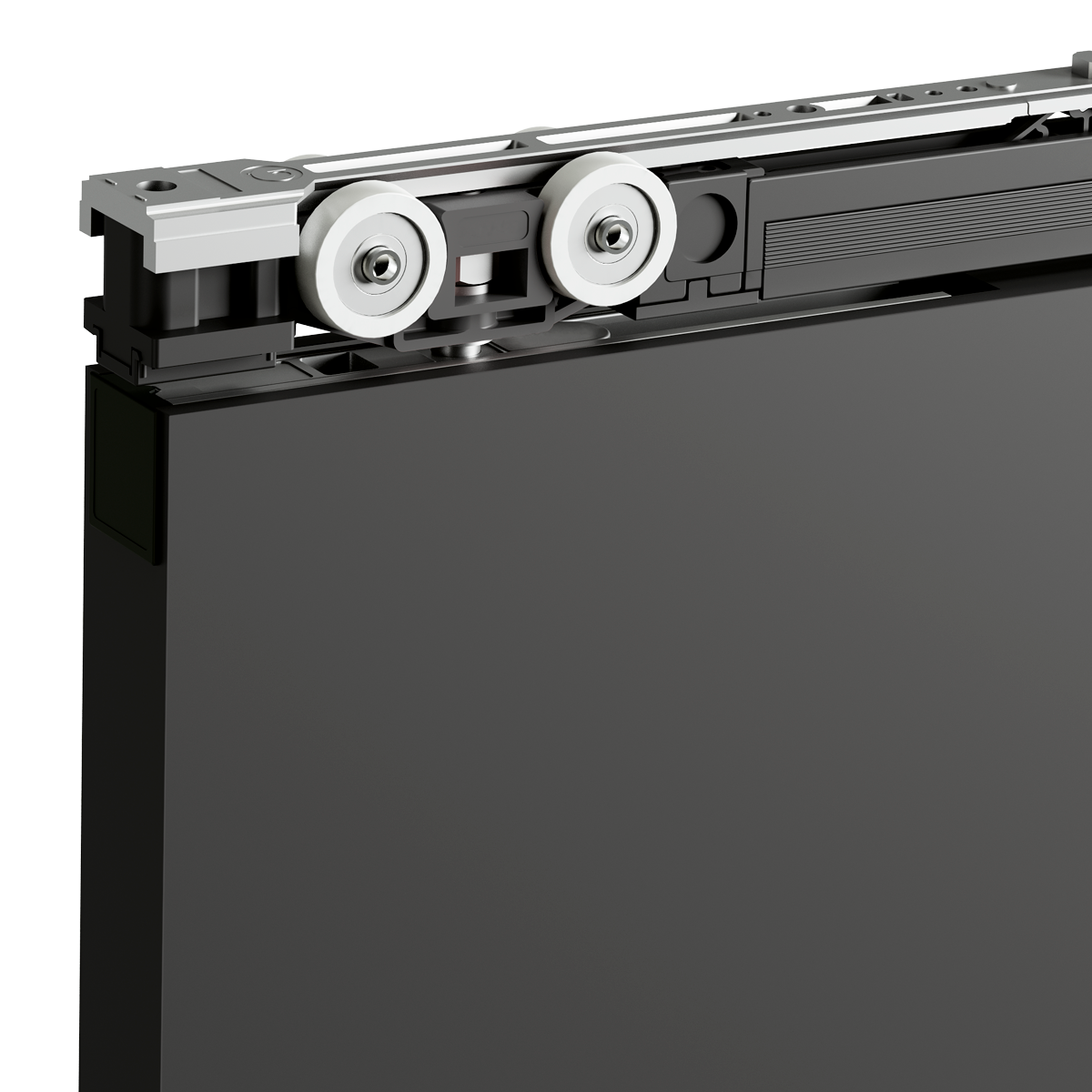

Pop Series
Magic2 invisible technology paired with a customer-specified rail color. Available in three patented variants — Upperline, Underline, and Equal — that change how the rail reads against the door edge. Soft-air closing, 38–44 mm panel range, fully customizable finish on request.
- Up to 80 kg leaf
- 38–44 mm door thickness
- Custom rail finish
- Three layout variants
The hardware that makes the door work
Locks, hinges, and closers we specify alongside our doors. AGB's mechanical, electronic, and magnetic-catch lock bodies cover the full interior catalog — Polaris for standard doors, Opera Twin and iControl for hotels, Wave for the new generation of magnetic mortises, Touch for silent passage doors, Centro for fire-rated leaves, Scivola Tre for sliders. AGB's Eclipse concealed hinges handle our CB doors; Simonswerk AN-series handles our GD invisible and fire-rated doors; Assa Abloy DC-series closers cover surface and concealed installations.
For swing, sliding, fire, and hotel doors
Polaris 2XT
AGB's standard mechanical mortise lock for interior swing doors. Latch + deadbolt, BB / PZ / WC variants. The default body on residential interior leaves.
View specs
Opera Twin
Fire-resistant mechanical hotel lock. Master-keyed cylinder system, anti-panic egress, certified for use on rated leaves. Specified on hotel and multi-family corridors.
View specs
Opera iControl
Electronic version of Opera. RFID card, mobile-key, and PIN access in a fire-rated body. Bluetooth audit trail and battery-powered — no wiring to the leaf.
View specs
Wave
New-generation mortise lock with a magnetic latch — silent close, no spring noise, full BB / PZ / WC variants. The quiet upgrade over Polaris.
View specs
Wave Sliding
Wave's magnetic technology in a sliding-door lock body — pocket and barn-door compatible, with WC and PZ entries for sliders that need a real lock.
View specs
Touch
Silent magnetic catch — no latch, no lock. The handle returns to position with a magnet rather than a spring. Specified where doors stay closed but never lock.
View specs
Touch & Close
Touch with a privacy turn — magnetic catch for the door action, manual bolt for the bathroom. Silent in passage, secure when occupied.
View specs
Centro Focus
Standard fire-door mortise — latch + deadbolt, certified to EN 1634 for rated leaves. The default keyed body on our fire-rated openings.
View specs
Scivola Tre Class
AGB's standard sliding-door lock — hook bolt, flush-pull-compatible faceplate, BB / PZ / WC entries. The body behind most pocket-door installations.
View specsAGB Eclipse — concealed for our standard frames
Eclipse 3.0
Concealed hinge for 1-3/4" thick leaves on the CB Minima frame. 3D adjustable, up to ~60 kg per pair. Standard on most of our internal swing doors.
View specs
Eclipse 2.2
High-load concealed hinge for 2-3/8" thick leaves on the CB Massima frame. 3D adjustable, up to ~80 kg per pair. Specified for oversize and acoustic doors.
View specsSimonswerk — concealed for our invisible doors
AN 140-3D
3D-adjustable concealed hinge for the GD Dorigo invisible-door system. Specified by default on flush, plaster-flush, and floor-to-ceiling passage leaves.
View specs
AN 107-3D-C60
Self-closing concealed hinge with a 60-minute fire rating, 3D adjustable. The combined hinge + closer when an invisible fire-rated leaf must close itself.
View specsAssa Abloy DC-series — surface and concealed
DC135
Surface-mount cam-action door closer for leaves up to ~38" wide. EN 2–4 strength, certified for fire doors. Specified where the closer can be visible on the head.
View specs
DC175
Surface-mount cam-action closer for wider leaves — up to ~44". EN 3–6 strength range, certified for fire doors. Specified on oversize and high-traffic openings.
View specs
DC840
Concealed cam-action closer fitted into the head of the frame — invisible from both faces. Specified on CB elevator doors and GD wood-frame fire-rated doors.
View specs
