AGB Polaris 2XT
AGB · Mechanical Mortise · Internal Doors

Polaris 2XT

AGB · Made in Italy

AGB's standard mechanical mortise lock — the body that sits behind most of our residential interior leaves. Polaris 2XT is the latch + deadbolt workhorse: low-friction action, hardened bolt, and the full BB / PZ / WC entry range so a single lock body covers passage, keyed, and bathroom doors. We default to this body whenever a project doesn't call for the magnetic Wave or the fire-rated Centro.

UseStandard interior swing doors
ActionMechanical · spring-return latch
EntriesBB · PZ · WC
Configure the finish
Bright brass plated

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Choose function
Quantity
FunctionLatch + Deadbolt
Door TypeInternal swing
VariantsBB · PZ · WC
Backset50 / 60 mm
Faceplate22 / 24 mm
Made inItaly (AGB)
In the details

The body behind most of our interior doors.

Function

Latch + deadbolt mortise. The latch is a standard spring-return for everyday passage; the deadbolt extends only when keyed (PZ), thumb-turned (BB), or in the WC privacy variant.

Variants

BB (bathroom thumb-turn), PZ (Euro-cylinder), and WC (privacy turn with emergency release). Same body, three faceplates — specified per door function.

Compatibility

Pairs with the full DND, Tupai, and Fimet handle catalogs on this site. Standard backsets and spindle sizes; no special handle prep required.

Where we specify it

The default body on our CB and GD interior swing doors when a project does not call for Wave (magnetic), Centro (fire-rated), or Touch (no-lock magnetic catch).

Highlights

What sets Polaris 2XT apart

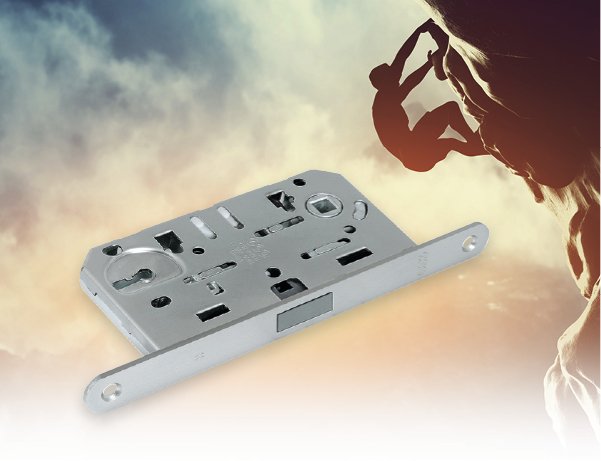

Smart magnetic lock

Smart magnetic lock

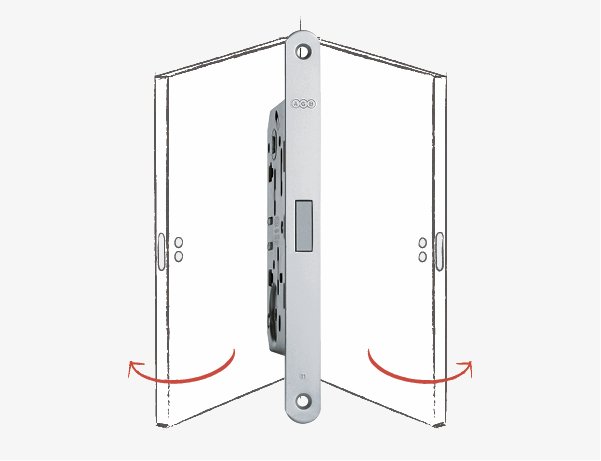

Latch symmetry

Latch symmetry

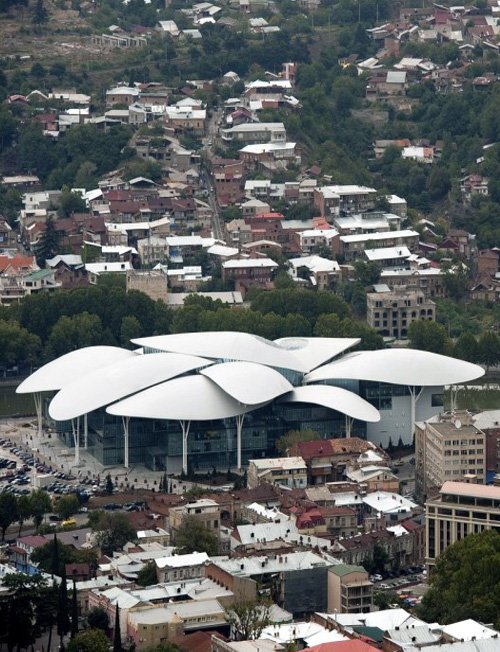

House of Justice

House of Justice

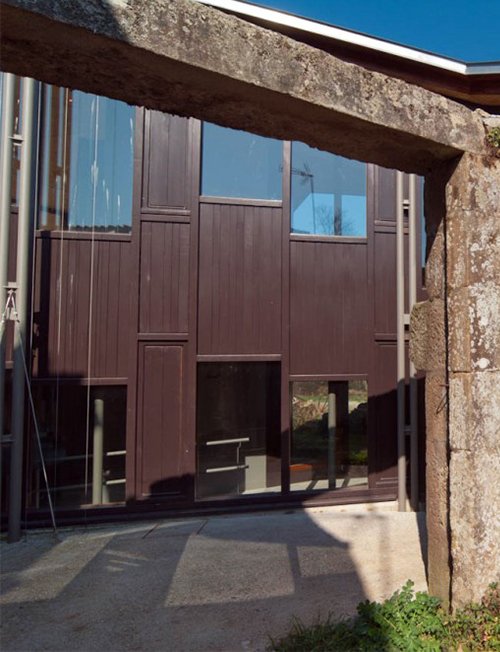

Silleda centre

Silleda centre

Technical features

Specification at a glance

Closing
Closing
Axis
Axis
Forend
Forend
Backset
Backset
Hub
Hub
Material
Material
PIV EN12209
PIV EN12209
Technical specifications

AGB Polaris 2XT — full specification

Polaris 2XT is published in three faceplate variants (BB / PZ / WC) sharing the same body and backsets. The values below are the configurations we specify by default — alternative backsets, faceplate widths, and finishes are available on request.

Closing typeMechanical · spring-return latch + deadbolt
Backset (entraxe)50 mm standard · 60 mm and 70 mm available
Spindle (hub)8 × 8 mm
Forend / faceplateStainless steel, 22 mm or 24 mm width · square or radius corners
Latch travelStandard reversible · field-changeable handing
DeadboltSingle throw · 20 mm projection
Cylinder fitEuro-profile (PZ) · standard sash key (BB) · privacy turn (WC)
MaterialZinc-die body · steel latch & deadbolt · stainless faceplate
StandardEN 12209 · Grade 7
Anti-corrosionEN 1670 · Grade 4
Available finishes

8 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Bright brass plated
Bright brass plated
Bright nickel plated
Bright nickel plated
Antique brushed brass plated
Antique brushed brass plated
Satin nickel plated
Satin nickel plated
Enamelled dark bronze plated
Enamelled dark bronze plated
Matt chromium plated
Matt chromium plated
Semi-bright black
Semi-bright black
Matt white RAL 9016
Matt white RAL 9016
Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Polaris 2XT product datasheet — variants, dimensions, certifications, and compatible cylinders — on their website. We mirror the same body and finish options through our specification.

External · Manufacturer
Polaris 2XT — AGB product page
agb.it · Opens in new tab
Specify this lock

Specify Polaris 2XT on your interior doors.

Tell us the door (CB or GD), the function (passage, keyed, bathroom), and the handle line you've chosen. We'll prep the leaf, supply the body, and ship the package together.

Inquire about Polaris 2XT
