Simonswerk · TECTUS · Self-Closing · C60

AN 107-3D-C60

Simonswerk · Made in Germany · Self-Close · Fire-Rated

AN 107-3D-C60 is a hinge and a closer combined into one body — and certified to a 60-minute fire rating on top of that. Where AN 140-3D is the standard invisible hinge, the C60 is what we specify on a GD invisible fire door that has to close itself: the spring inside the hinge body returns the door to the frame at a controlled rate, the geometry stays concealed, and the whole assembly is tested as a fire-rated system. The combined hinge + closer when an invisible fire-rated leaf must close itself.

UseGD invisible fire doors · Self-closing

FunctionHinge + Closer + Fire rating

RatingC60 · 60 min fire-resistance

Configure the finish

Satin Chrome (AN 014)

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity

In the details

Hinge, closer, and fire rating in one body.

Self-closing

An internal spring returns the leaf to the frame after every opening — speed and damping are calibrated at the factory. No surface arm, no concealed track at the head, no separate closer body.

Fire rating

Certified to EN 1634-1 for a 60-minute fire performance (C60) on rated leaves. The whole hinge-and-closer assembly is in the fire-test certification.

3D adjustment

Same 3D field adjustment as the standard AN-series — invisible fire doors must still maintain the flush reveal after install. Vertical, lateral, depth.

Where we specify it

Invisible fire doors where surface-mount closers are not acceptable — primary residence corridor, multi-family between-unit doors, garage-to-house when the spec calls for invisible.

Technical specifications

Simonswerk AN 107-3D-C60 — full specification

AN 107-3D-C60 combines the TECTUS concealed-hinge geometry with an integrated spring closer and a 60-minute fire certification. Closer speed is factory-calibrated; latch action is selectable.

Series	TECTUS / ANSELMI · Self-closing
Door Type	Invisible fire-rated leaves
Leaf thickness	40 — 50 mm (1-9/16" — 2")
Load — 3 hinges	60 kg / 132 lb
Closing strength	EN 2 / EN 3 (factory selectable)
Closing speed	Adjustable post-install
Fire rating	EI 60 (C60) per EN 1634-1
Adjustment — 3D	±3 mm vertical · ±3 mm lateral · ±1 mm compression
Surface (default)	Aluminium Chrome (AN 014)
Standard	EN 1935 · EN 1154 (closing) · EN 1634-1

Available finishes

8 finishes — specified per project

Finish swatches direct from Simonswerk. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

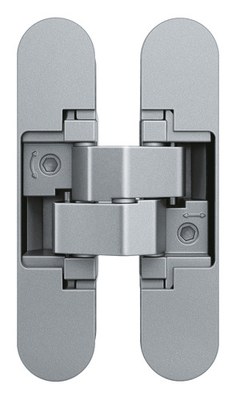

Satin Chrome (AN 014)

Black (AN 018)

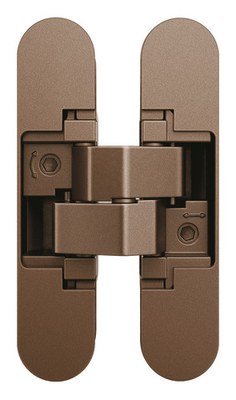

Antique Bronze (AN 035)

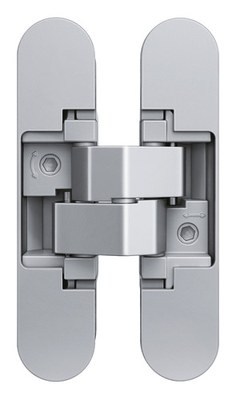

Aluminium Chrome (AN 036)

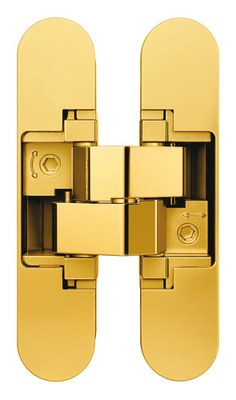

Polished Brass (AN 037)

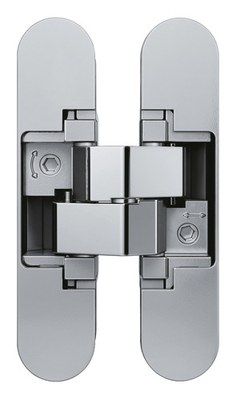

Polished Chrome (AN 039)

Satin Nickel (AN 044)

RAL 9016 Traffic White (AN 049)

Manufacturer datasheet

Full technical specification on Simonswerk Selector

Simonswerk publishes the AN 107-3D-C60 product detail through their selector tool — fire test certificates, load capacity, closer-speed setting, and frame profiles. We mirror the same hinge through our GD invisible fire-door specification.

External · Manufacturer

AN 107-3D-C60 — Simonswerk Selector

selector.simonswerk.com · Opens in new tab

Specify this hinge

Specify AN 107-3D-C60 on your invisible fire doors.

Tell us the rating you need (FD30 / FD60), the leaf weight, and the corridor traffic. We'll spec the hinge count and confirm the closer-speed factory setting before delivery.

Inquire about AN 107-3D-C60
