AN 140-3D

Simonswerk · Made in Germany · 3D Adjustable

Simonswerk AN 140-3D is the concealed hinge that makes the GD Dorigo invisible-door system actually invisible. Sized for our standard GD frame and an 80 kg leaf, the hinge fully recesses into the rebate so the door reads as a flat plane of plaster, paint, or veneer — no hinge knuckle, no metal trim, no break in the wall. The 3D adjustment is critical: invisible doors are unforgiving of a millimeter of misalignment, and the AN-series hinge corrects vertical, lateral, and depth without rehanging.

UseGD invisible doors · Flush leaves

Capacity80 kg per pair (3 hinges)

Adjustment3D · ±3 mm each axis

Configure the finish

Satin Chrome (AN 014)

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity

In the details

What makes invisible doors invisible.

Concealed body

The hinge recesses fully into both leaf and frame — when the door is closed, the wall reads continuous. No knuckle, no trim, no metal break in the surface plane.

3D adjustment

Vertical (±3 mm), lateral (±3 mm), and depth (±1.5 mm) calibration after installation. Critical for invisible doors where a 1 mm offset breaks the flush reveal.

Capacity

80 kg per pair on standard 3-hinge installations. Our invisible doors run 60–75 kg with the substrate and skin, so the AN 140-3D works well within rated capacity.

Where we specify it

Default hinge on every GD invisible door — flush passage, plaster-flush, floor-to-ceiling, hidden-bookcase doors. Any leaf where the hinge cannot read on either face.

Technical specifications

Simonswerk AN 140-3D — full specification

AN 140-3D is the standard concealed hinge in Simonswerk's TECTUS range for the GD invisible-door system. The values below match the GD Dorigo factory configuration — the standard ANSELMI Aluminium Chrome variant. Other surface finishes (satin chrome, black, antique bronze) are available on request.

Series	TECTUS / ANSELMI
Door Type	Flush invisible · plaster-flush · floor-to-ceiling
Leaf thickness	40 — 50 mm (1-9/16" — 2")
Load — 3 hinges	80 kg / 176 lb
Adjustment — vertical	+3 / -3 mm
Adjustment — lateral	+3 / -3 mm
Adjustment — compression	+1 / -1 mm
Opening angle	180°
Surface (default)	Aluminium Chrome (AN 014)
Standard	EN 1935 Grade 13 / 14

Available finishes

8 finishes — specified per project

Finish swatches direct from Simonswerk. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Satin Chrome (AN 014)

Black (AN 018)

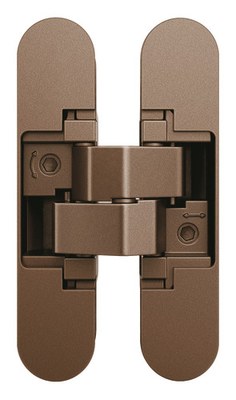

Antique Bronze (AN 035)

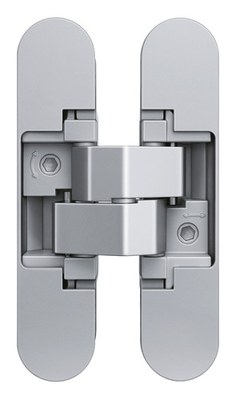

Aluminium Chrome (AN 036)

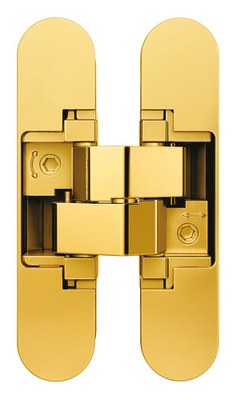

Polished Brass (AN 037)

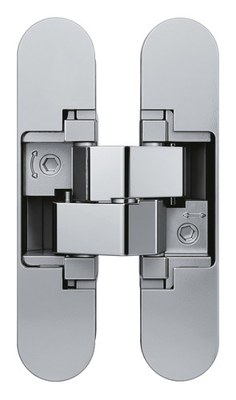

Polished Chrome (AN 039)

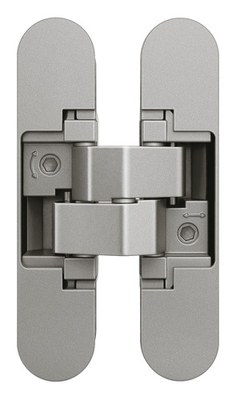

Satin Nickel (AN 044)

RAL 9016 Traffic White (AN 049)

Manufacturer datasheet

Full technical specification on Simonswerk Selector

Simonswerk publishes the AN 140-3D product detail through their selector tool — load curves, frame profiles, adjustment, and certifications. We mirror the same hinge through our GD door specification.

External · Manufacturer

AN 140-3D — Simonswerk Selector

selector.simonswerk.com · Opens in new tab

Specify this hinge

Specify AN 140-3D on your invisible doors.

Tell us the leaf height, width, and finish system (paint, plaster, veneer). We'll spec the hinge count and confirm the frame against the GD invisible-door schedule.

Inquire about AN 140-3D
