AGB · High-Load Concealed · Massima Frame

Eclipse 2.2

AGB · Made in Italy · 3D Adjustable · High-Load

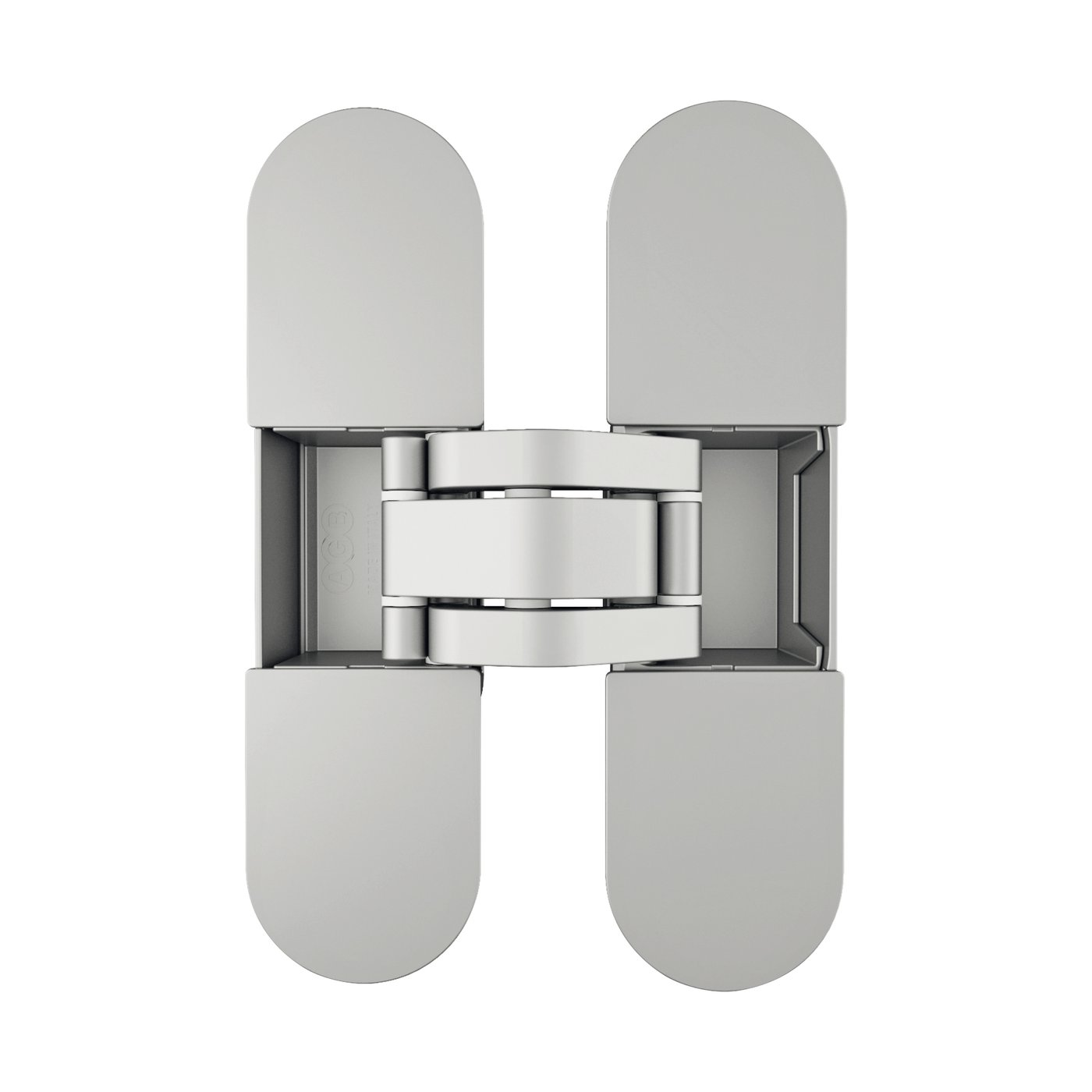

Eclipse 2.2 is the high-load version of Eclipse, sized for the CB Massima frame and 2-3/8 inch leaves (oversize, acoustic, and primary suite doors). Same concealed body, same 3D adjustment, but a heavier-gauge hinge mechanism that handles up to 80 kg per pair — the threshold for 8-foot solid-core leaves and acoustic-rated doors that approach 60 kg before hardware. Specified whenever the door exceeds the standard residential leaf weight.

FrameCB Massima · 2-3/8" leaf

Capacity80 kg per pair (2 hinges)

Adjustment3D · ±3 mm each axis

Configure the finish

Brass plated PVD

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity

In the details

Same hinge, more weight.

Heavier mechanism

Larger pivot bearings and a deeper-section body let Eclipse 2.2 carry 80 kg per pair vs Eclipse 3.0's 60 kg — the upgrade for solid-core, acoustic-rated, or oversize leaves.

Same adjustment

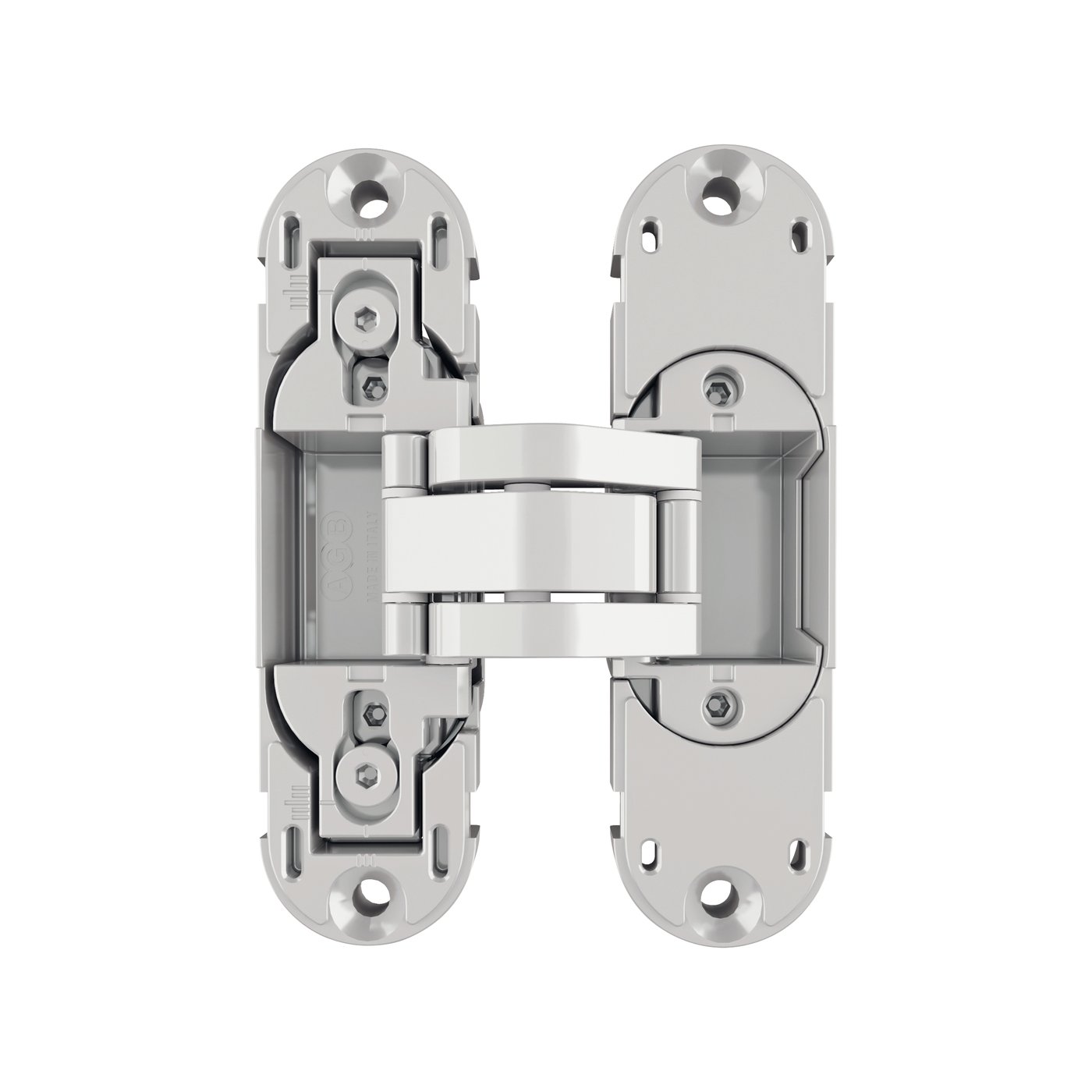

The same 3D ±3 mm adjustment as Eclipse 3.0 — vertical, lateral, depth. Field calibration after installation works identically.

Frame compatibility

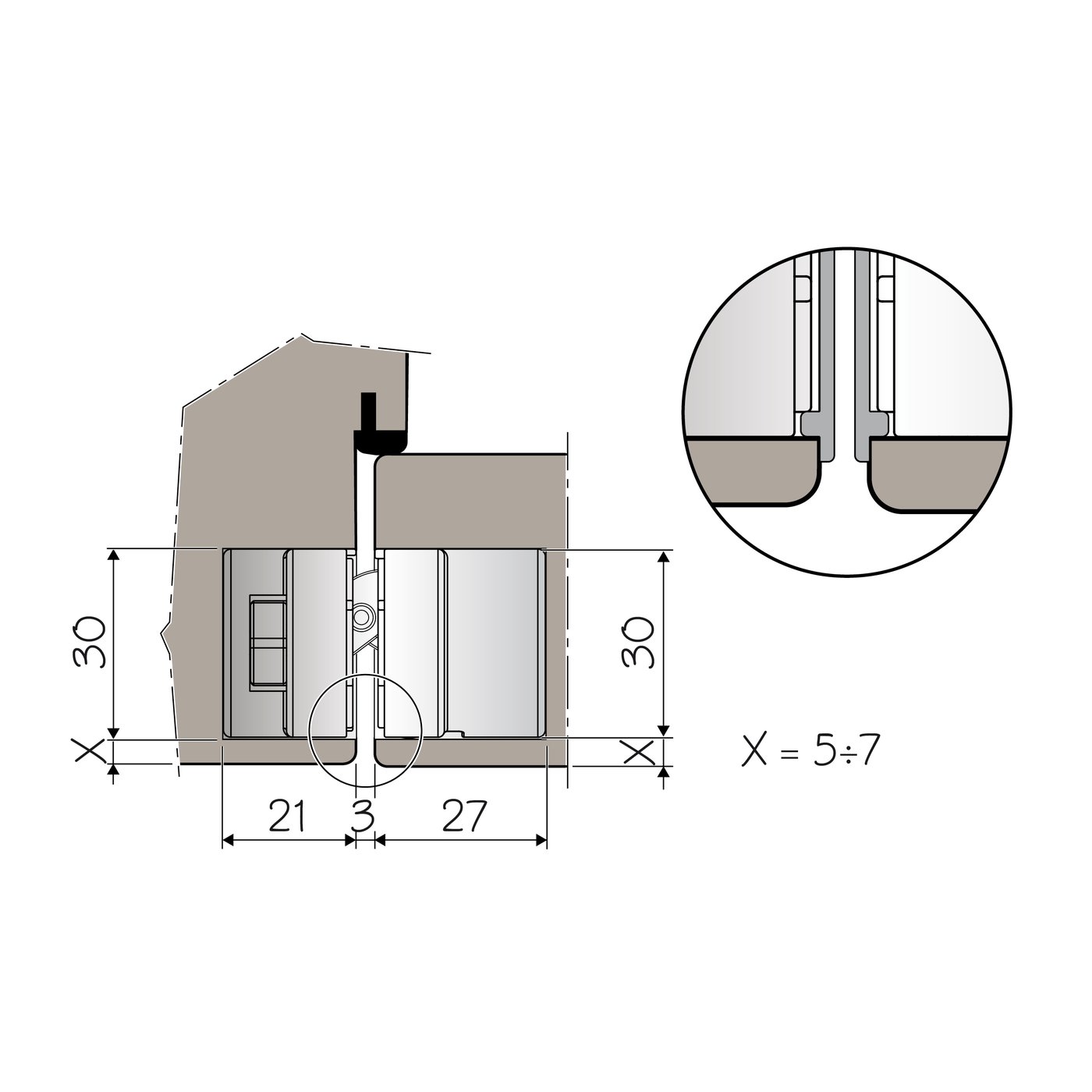

Sized for the CB Massima frame profile (2-3/8 inch leaf rebate). Not interchangeable with the Minima frame — the depth and width are larger.

Where we specify it

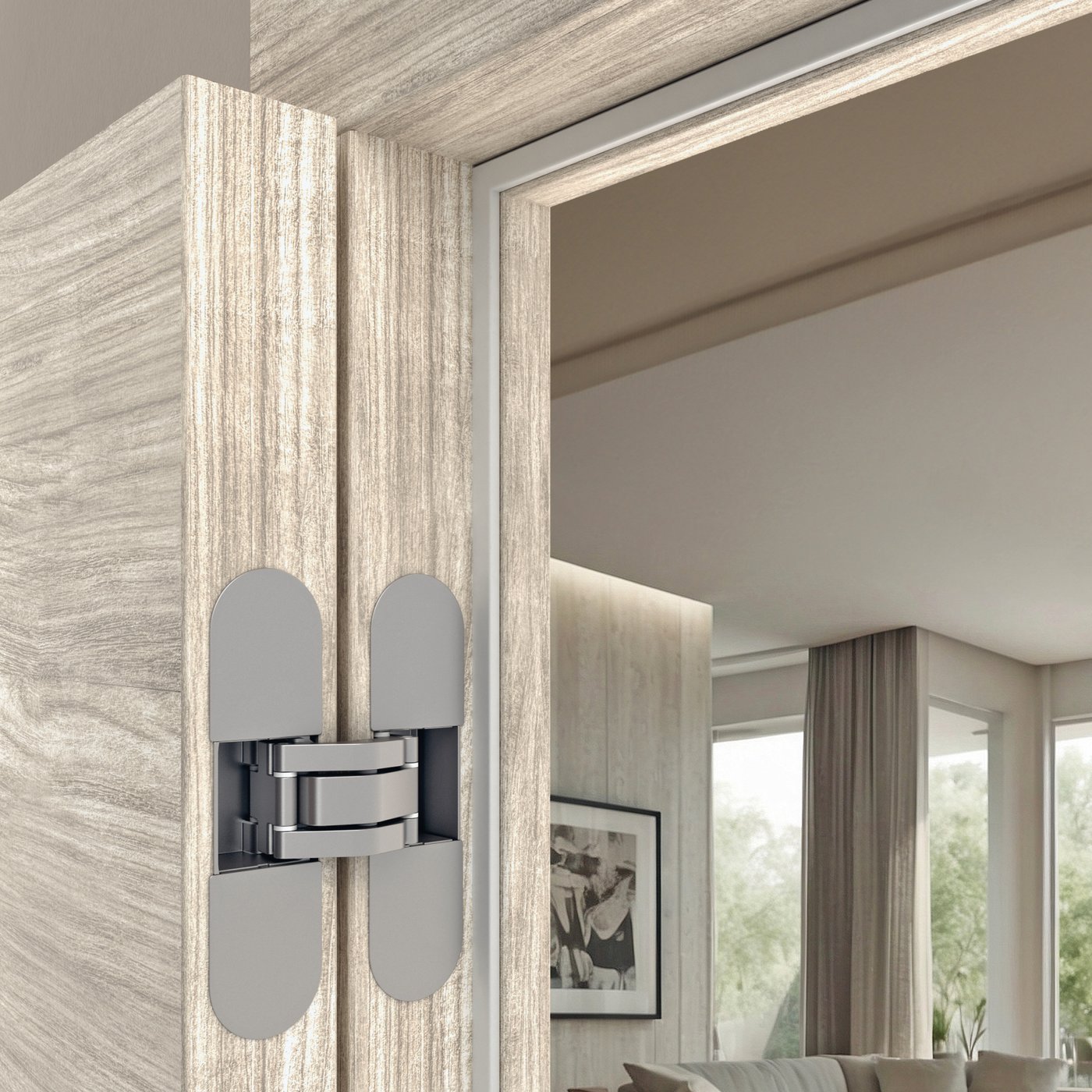

Oversize doors (over 84 inch tall, over 36 inch wide), acoustic-rated leaves, primary-suite doors that need to read substantial, and any leaf with embedded glass or LED that adds significant mass.

Technical specifications

AGB Eclipse 2.2 — full specification

Eclipse 2.2 is sized for the CB Massima frame and 60 mm (2-3/8") interior leaves. The 80 kg pair load covers the bulk of oversize and acoustic-rated doors; for >120 kg leaves, a third hinge is added.

Frame compatibility	CB Massima only (60 mm leaf rebate)
Leaf thickness	60 mm (2-3/8")
Load — 2 hinges	80 kg / 176 lb (per pair)
Load — 3 hinges	120 kg / 264 lb (heavy leaves)
Adjustment — vertical	±3 mm
Adjustment — lateral	±3 mm
Adjustment — depth	±1.5 mm
Opening angle	180°
Material	Steel + zinc alloy · plated
Standard	EN 1935 Grade 14

Available finishes

7 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Brass plated PVD

Nickel plated PVD

Enamelled dark bronze plated

Matt chromium plated

Light bronze

White RAL 9010

Semi-bright black

Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Eclipse 2.2 datasheet — load curves, adjustment, frame compatibility, and certified weights — on their website. We mirror the same hinge through our CB Massima door specification.

External · Manufacturer

Eclipse 2.2 — AGB product page

agb.it · Opens in new tab

Specify this hinge

Specify Eclipse 2.2 on your oversize doors.

Tell us the leaf height, width, weight, and any acoustic or fire rating. We'll spec the pair count and confirm the Massima frame against the door schedule.

Inquire about Eclipse 2.2
