AGB Eclipse 3.0
AGB · Concealed Hinge · Minima Frame

Eclipse 3.0

AGB · Made in Italy · 3D Adjustable

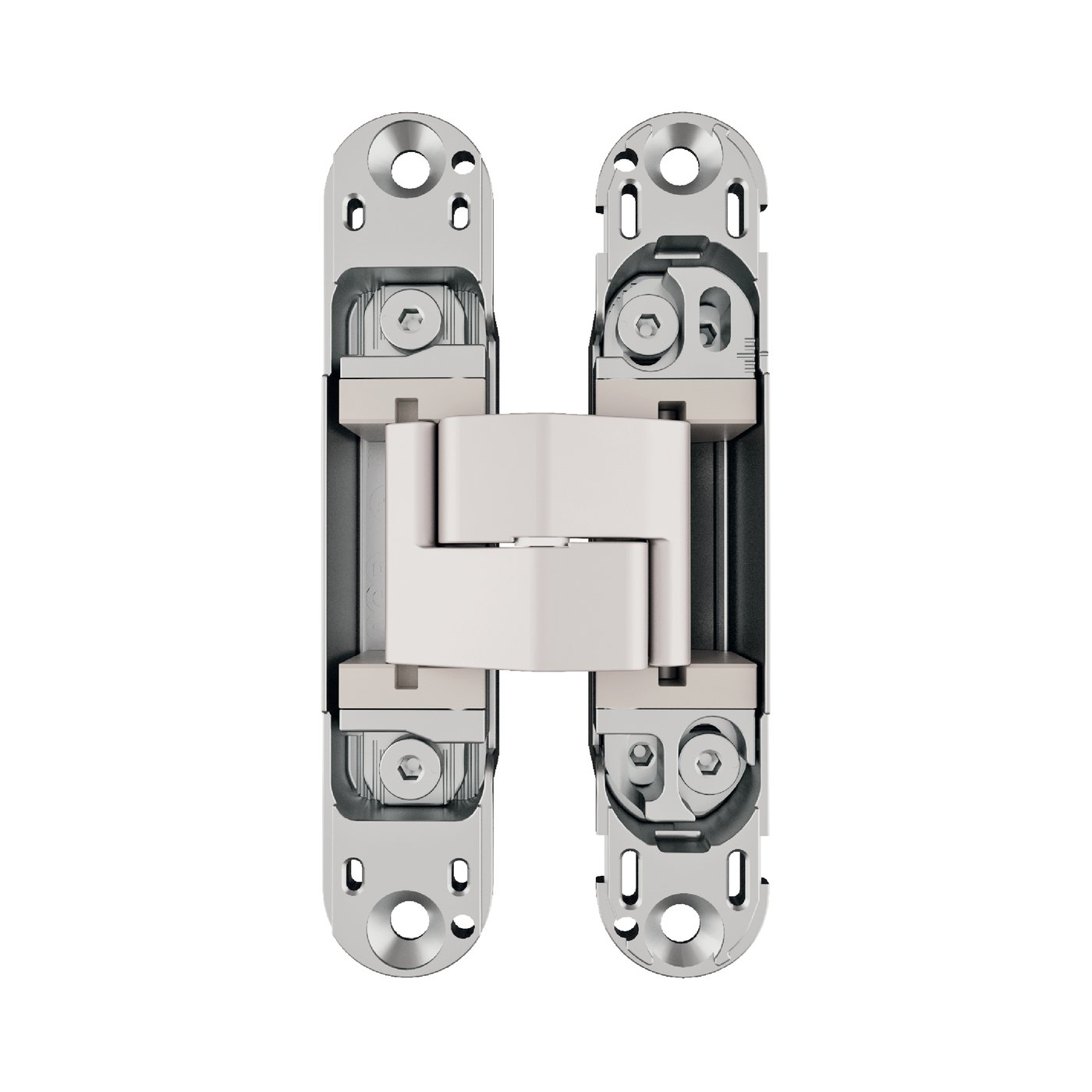

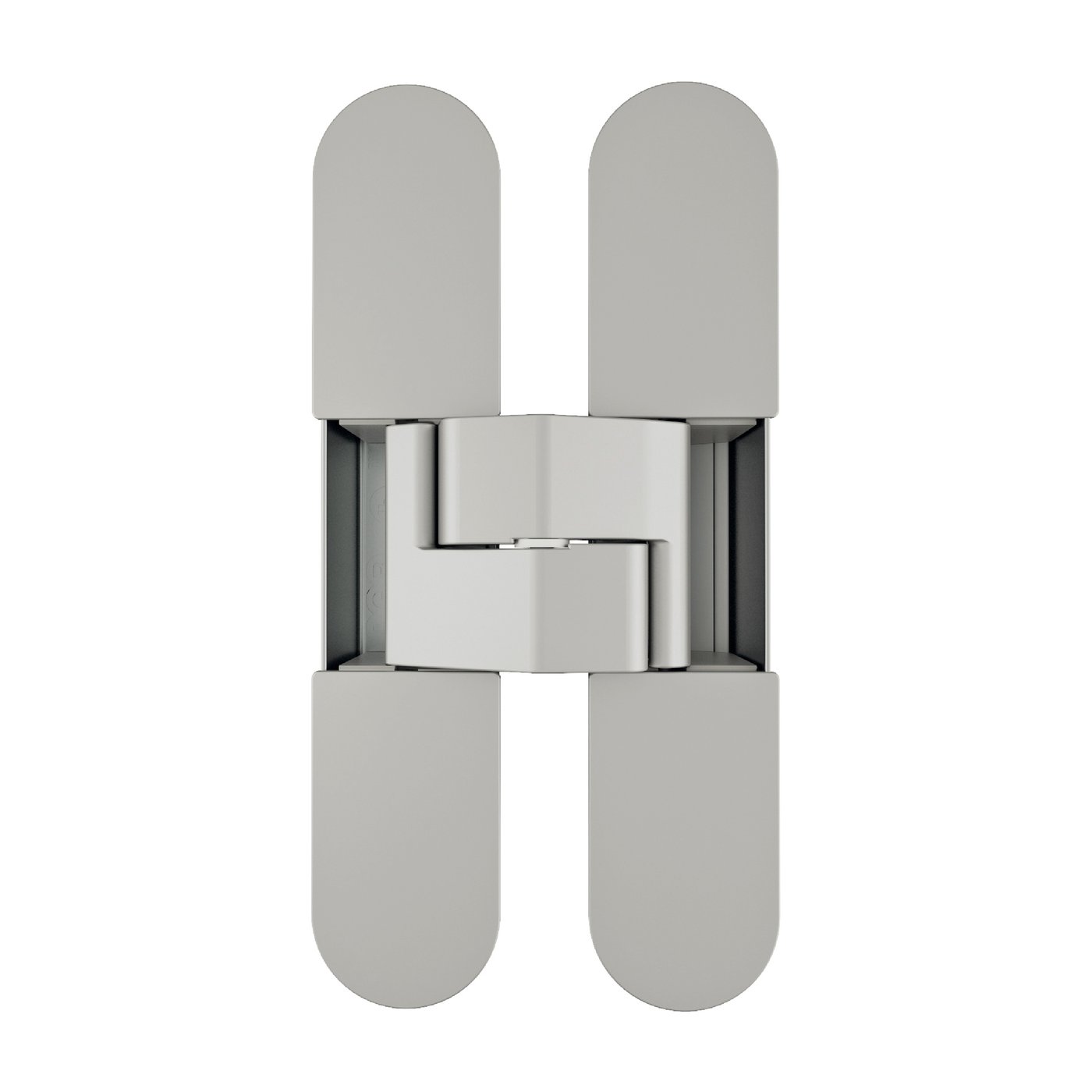

Eclipse 3.0 is AGB's concealed hinge for our standard CB doors — the version sized for the Minima frame profile and 1-3/4 inch leaves (the residential default). The hinge body recesses fully into the leaf and frame; the door reads as flush metal, no hinge knuckles, no exposed pin. Three-dimensional adjustment after installation lets the door be aligned without rehanging — vertical, lateral, and depth — by 3 mm in each axis.

FrameCB Minima · 1-3/4" leaf
Capacity60 kg per pair (2 hinges)
Adjustment3D · ±3 mm each axis
Configure the finish
Brass plated PVD

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity
FrameCB Minima
Leaf Thickness1-3/4" (44 mm)
Capacity60 kg / 132 lb
Adjustment3D · ±3 mm
Hinge Pairs2 standard · 3 tall
Made inItaly (AGB)
In the details

Concealed and fully adjustable.

Concealed body

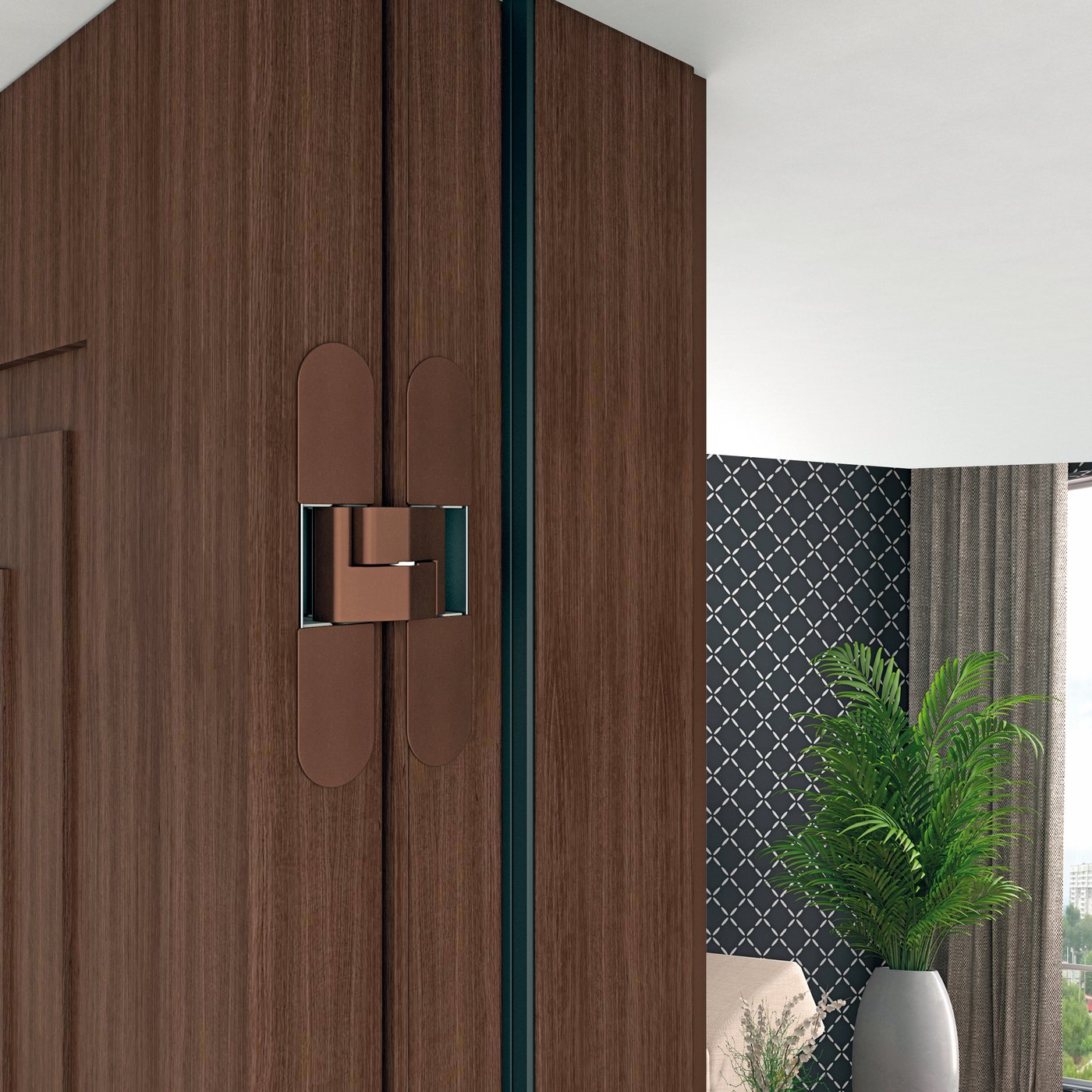

The hinge fully recesses into the leaf and the frame — no knuckle reads on either face when the door is closed. The leaf reads as flush metal.

3D adjustment

After installation, the door can be moved ±3 mm in three axes (vertical, lateral, depth) using three independent screws — no rehang, no shimming, no second visit.

Capacity

60 kg (132 lb) per pair on standard 1-3/4 inch leaves. We add a third hinge for leaves over 84 inches tall or with heavy mass — solid wood, glass insets, embedded LED.

Where we specify it

Default hinge on every CB internal swing door we ship — modern flush leaves, painted leaves, veneered leaves. Pairs with the full DND, Tupai, and Fimet handle catalogs.

Highlights

What sets Eclipse 3.0 apart

Concealed hinges for internal doors

Concealed hinges for internal doors

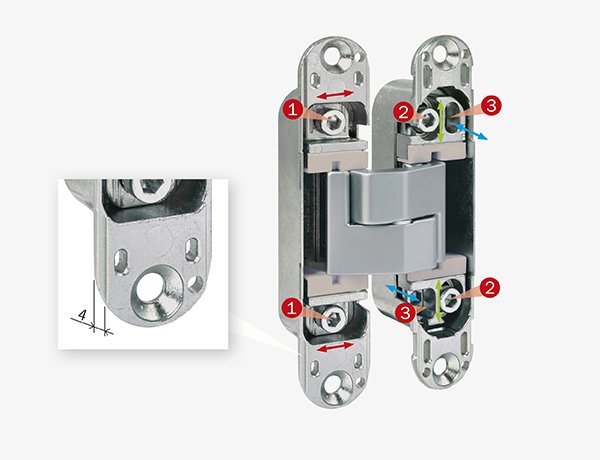

For aluminium doors

For aluminium doors

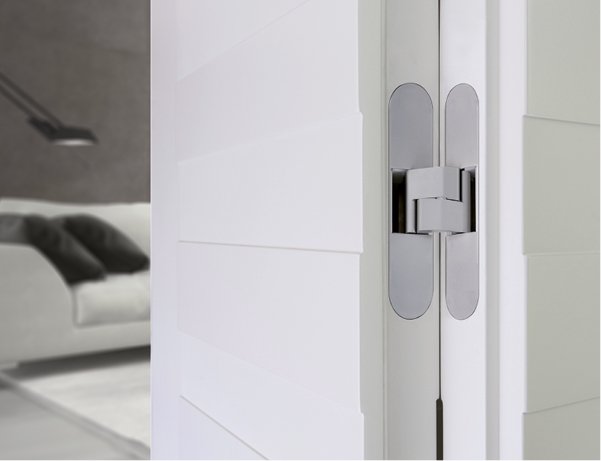

Invisible from outside, refinement in door design

Invisible from outside, refinement in door design

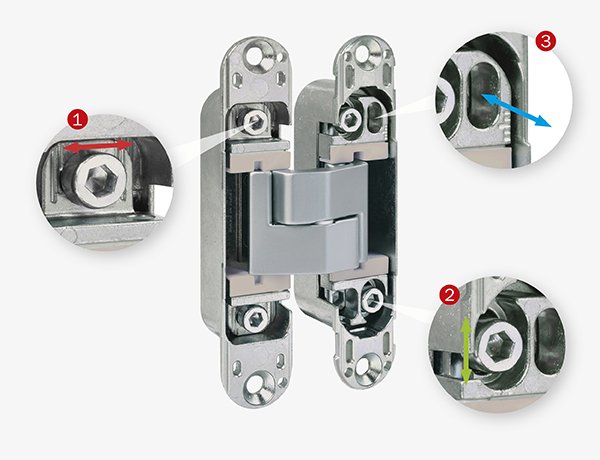

Adjustments

Adjustments

Technical features

Specification at a glance

Material
Material
Technical specifications

AGB Eclipse 3.0 — full specification

Eclipse 3.0 is sized for the CB Minima frame and standard 44 mm (1-3/4") interior leaves. The values below cover the 60 kg pair-load configuration. Heavier leaves use a 3-hinge installation; oversize doors should use Eclipse 2.2 on the Massima frame.

Frame compatibilityCB Minima only (44 mm leaf rebate)
Leaf thickness44 mm (1-3/4")
Load — 2 hinges60 kg / 132 lb (per pair)
Load — 3 hinges80 kg / 176 lb (recommended for tall leaves)
Adjustment — vertical±3 mm
Adjustment — lateral±3 mm
Adjustment — depth±1.5 mm
Opening angle180°
MaterialZinc alloy + steel · plated
StandardEN 1935 Grade 13
Available finishes

8 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Brass plated PVD
Brass plated PVD
Nickel plated PVD
Nickel plated PVD
Enamelled dark bronze plated
Enamelled dark bronze plated
Enamelled matt brass plated
Enamelled matt brass plated
Matt chromium plated
Matt chromium plated
Light bronze
Light bronze
White RAL 9010
White RAL 9010
Semi-bright black
Semi-bright black
Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Eclipse 3.0 datasheet — load capacity, adjustment screws, frame compatibility, and certified weights — on their website. We mirror the same hinge through our CB door specification.

External · Manufacturer
Eclipse 3.0 — AGB product page
agb.it · Opens in new tab
Specify this hinge

Specify Eclipse 3.0 on your CB doors.

Tell us the leaf height, weight, and finish. We'll spec the right pair count (2 vs 3) and confirm the frame profile against the door schedule.

Inquire about Eclipse 3.0
