AGB · Hook Lock · Sliding Doors

Scivola Tre Class

AGB · Made in Italy · Sliding Hook

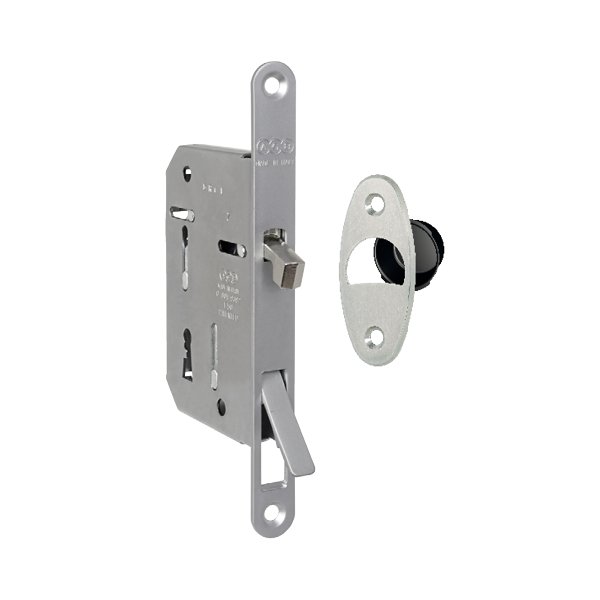

Scivola Tre Class is AGB's standard sliding-door lock — the body behind most pocket-door installations on the site. A hook bolt deploys from the leaf into the strike when the door reaches the closed position, anchored by a manual cam (BB), a Euro cylinder (PZ), or a privacy turn (WC). The faceplate is dimensioned to sit inside the cutout of any standard flush sliding pull, so the lock disappears into the geometry of the door rather than reading as separate hardware.

UsePocket · Barn · Sliding doors

ActionMechanical hook · Cam-driven

EntriesBB · PZ · WC

Configure the finish

Bright brass plated

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity

In the details

The body behind most of our pocket doors.

Hook geometry

A two-stage hook: the latch engages on close, the deadbolt portion deploys when the cam is turned. Resists pull-out under leverage on the leaf — the bolt is anchored against the strike top and bottom.

Variants

BB (cam thumb-turn), PZ (Euro-cylinder), and WC (privacy turn with emergency release). Same body, three faceplates — specified per door function.

Pull integration

Faceplate is dimensioned for the standard 96 × 18 mm cutout — fits inside Tupai 4181, DND sliding pulls, and AGB's own flush-pull range. The lock reads as part of the pull, not as separate hardware.

Where we specify it

The default body on every pocket and barn door we ship unless the project calls for Wave Sliding (silent magnetic). Bedrooms, baths, studies, walk-ins.

Technical specifications

AGB Scivola Tre Class — full specification

Scivola Tre Class is the workhorse mechanical sliding lock. The faceplate cutout matches the industry-standard 96 × 18 mm flush-pull recess used by Tupai, DND, and AGB sliding hardware.

Closing type	Mechanical hook · Cam-driven
Door Type	Pocket · barn · sliding leaves
Backset (entraxe)	60 mm
Hook stroke	22 mm — full strike engagement
Faceplate cutout	96 × 18 mm flush-pull standard
Variants	BB · PZ · WC
Cylinder fit	PZ accepts Euro 30 / 35 mm; BB takes a standard sash key
Strike	Fixed steel keeper · floor & head anchorage
Material	Zinc-die body · steel hook · stainless faceplate
Anti-corrosion	EN 1670 · Grade 4

Available finishes

4 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Bright brass plated

Matt chromium plated

Semi-bright black

Matt white RAL 9016

Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Scivola Tre Class datasheet — hook geometry, faceplate dimensions, variants, and pull compatibility — on their website. We mirror the same body and finish options through our specification.

External · Manufacturer

Scivola Tre Class — AGB product page

agb.it · Opens in new tab

Specify this lock

Specify Scivola Tre on your sliding doors.

Tell us the leaf width, the flush pull, and whether the slider needs to lock (WC, PZ) or just close (BB). We'll prep the leaf and supply the lock and strike together.

Inquire about Scivola Tre Class
