alteco
AGB Centro Focus
AGB · Mechanical Lock · Fire Doors

Centro Focus

AGB · Made in Italy · EN 1634 Fire-Rated

Centro Focus is AGB's standard fire-door mortise — same latch + deadbolt geometry as Polaris, but built and certified for fire-rated leaves. The body is intumescent-padded, the bolt and latch are graded for rated openings, and the whole assembly is tested to EN 1634 for up to 60 minutes of fire performance. The default keyed body on every fire-rated swing door we ship — residential corridor doors, garage-to-house doors, mechanical-room doors.

UseFire-rated swing doors
ActionMechanical · Latch + Deadbolt
RatingEN 1634 — up to 60 min
Configure the finish
Bright brass plated

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Quantity
FunctionLatch + Deadbolt · Fire-rated
Door TypeFire-rated swing
VariantsBB · PZ · WC
Fire RatingEN 1634-1
FaceplateIntumescent-padded
Made inItaly (AGB)
In the details

Polaris geometry, certified for fire.

Same prep

Faceplate dimensions, backset, and spindle position match Polaris 2XT — the leaf and frame don't need to be different bodies for fire vs non-fire doors. The certification is in the lock, not the prep.

Fire rating

Certified to EN 1634-1 on rated wood and steel leaves up to 60 minutes (FD30 / FD60). Pads and bolt geometry resist heat-induced jam and warp.

Variants

BB, PZ, and WC entries — same range as Polaris. The fire-rated body covers passage, keyed, and bathroom configurations on rated leaves.

Where we specify it

Garage-to-house doors, mechanical-room doors, fire-rated corridor doors, multi-unit residential between-unit doors — every fire-rated leaf where we don't need Opera's hotel features.

Highlights

What sets Centro Focus apart

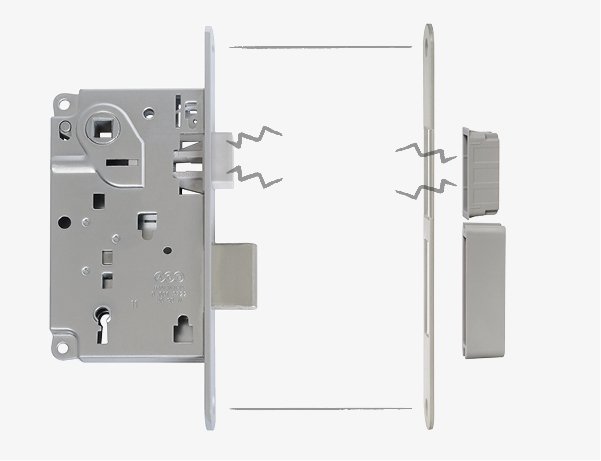

Magnetic latch

Magnetic latch

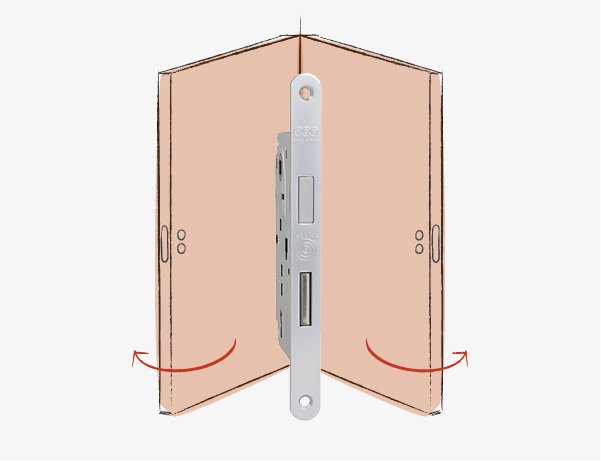

Centro…symmetrical!

Centro…symmetrical!

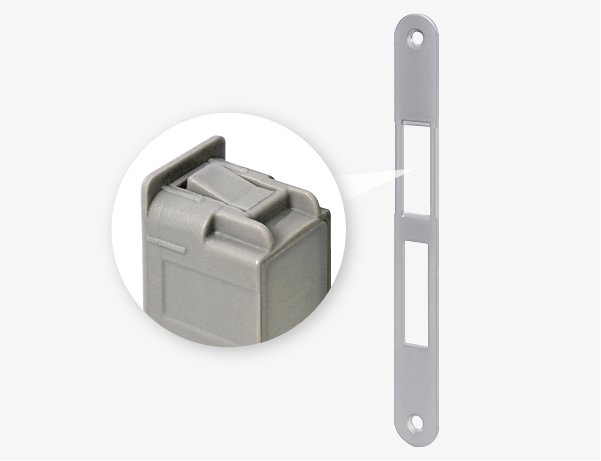

Easy-Fix XT striker

Easy-Fix XT striker

Technical features

Specification at a glance

Closing
Closing
Axis
Axis
Forend
Forend
Backset
Backset
Hub
Hub
Material
Material
Technical specifications

AGB Centro Focus — full specification

Centro Focus is the fire-rated drop-in for Polaris 2XT. Same prep dimensions, same handle/cylinder fit; the difference is internal — intumescent pads, hardened bolt geometry, and EN 1634-1 certification on rated leaves.

Closing typeMechanical · Latch + Deadbolt
Backset (entraxe)50 / 60 / 70 mm
Spindle (hub)8 × 8 mm
Forend / faceplateStainless · 22 / 24 mm · intumescent-padded
LatchSelf-aligning · reversible
DeadboltHardened · 20 mm projection · anti-saw
VariantsBB · PZ · WC
Fire ratingEI 30 / EI 60 — wood and steel leaves
StandardsEN 12209 Grade 7 · EN 1634-1 fire test
Anti-corrosionEN 1670 · Grade 4
Available finishes

4 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Bright brass plated
Bright brass plated
Bright nickel plated
Bright nickel plated
Enamelled dark bronze plated
Enamelled dark bronze plated
Matt chromium plated
Matt chromium plated
Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Centro Focus datasheet — fire-test certifications, variants, dimensions, and intumescent prep — on their website. We mirror the same body and finish options through our specification.

External · Manufacturer
Centro Focus — AGB product page
agb.it · Opens in new tab
Specify this lock

Specify Centro Focus on your fire-rated doors.

Tell us the rating you need (FD30, FD60), the entry function, and the door schedule. We'll spec the body and confirm the certification chain to permit.

Inquire about Centro Focus
