Assa Abloy DC135
Assa Abloy · Surface Closer · up to 38"

DC135

Assa Abloy · Made in Sweden · Cam-Action

DC135 is the standard Assa Abloy surface-mount closer — the body that sits visible at the head of the door with an arm to the leaf. Cam-action geometry gives a low opening force at the start (easy to push) and full closing force at the end (positive latch every time), which is the right curve for residential and light commercial traffic. Sized for leaves up to 38 inches wide, EN 2–4 strength range, and fire-door certified up to 60 minutes — the closer we specify whenever the spec doesn't call for an invisible solution.

UseSurface mount · Visible at head
Leaf widthUp to 38 inch / 950 mm
StrengthEN 2 / 3 / 4 (adjustable)
Quantity
TypeSurface · Cam-action
Leaf Width≤ 38" (950 mm)
StrengthEN 2 / 3 / 4
Fire RatingFD60
MountingStd · Parallel · Top
Made inSweden
In the details

The standard visible closer.

Cam-action

The cam profile delivers low opening force at the start and full closing force at the end — easy to push open, positive latch on close. The right curve for everyday residential and light commercial traffic.

Strength range

Field-adjustable across EN 2, 3, and 4 power sizes. One closer body can be set on site to match the leaf width and any draft conditions in the corridor.

Fire rating

Tested to EN 1634-1 for FD60 (60-minute) fire-rated leaves. Specified on rated openings where the surface arm is acceptable from a design standpoint.

Where we specify it

Standard residential and light commercial leaves up to 38 inch wide — corridor doors, garage-to-house doors, mechanical rooms. The default surface closer when the design accepts a visible arm.

Assa Abloy DC135 — full specification

DC135 is the standard cam-action surface closer in the Assa Abloy CamMotion family — sized for residential and light commercial leaves up to 950 mm. The values below cover the standard parallel-arm installation; top-jamb and parallel mounting variants are available.

TypeSurface-mount · Cam-action
StrengthEN 2 / 3 / 4 (adjustable)
Door widthUp to 950 mm (37.4")
Door weightUp to 80 kg (176 lb)
MountingStandard / Parallel arm / Top jamb
Closing speedAdjustable · independent latch speed
BackcheckAdjustable · 75°—115°
Delayed actionOptional
Fire ratingUp to FD60 (EN 1634-1)
StandardEN 1154 · CE marked

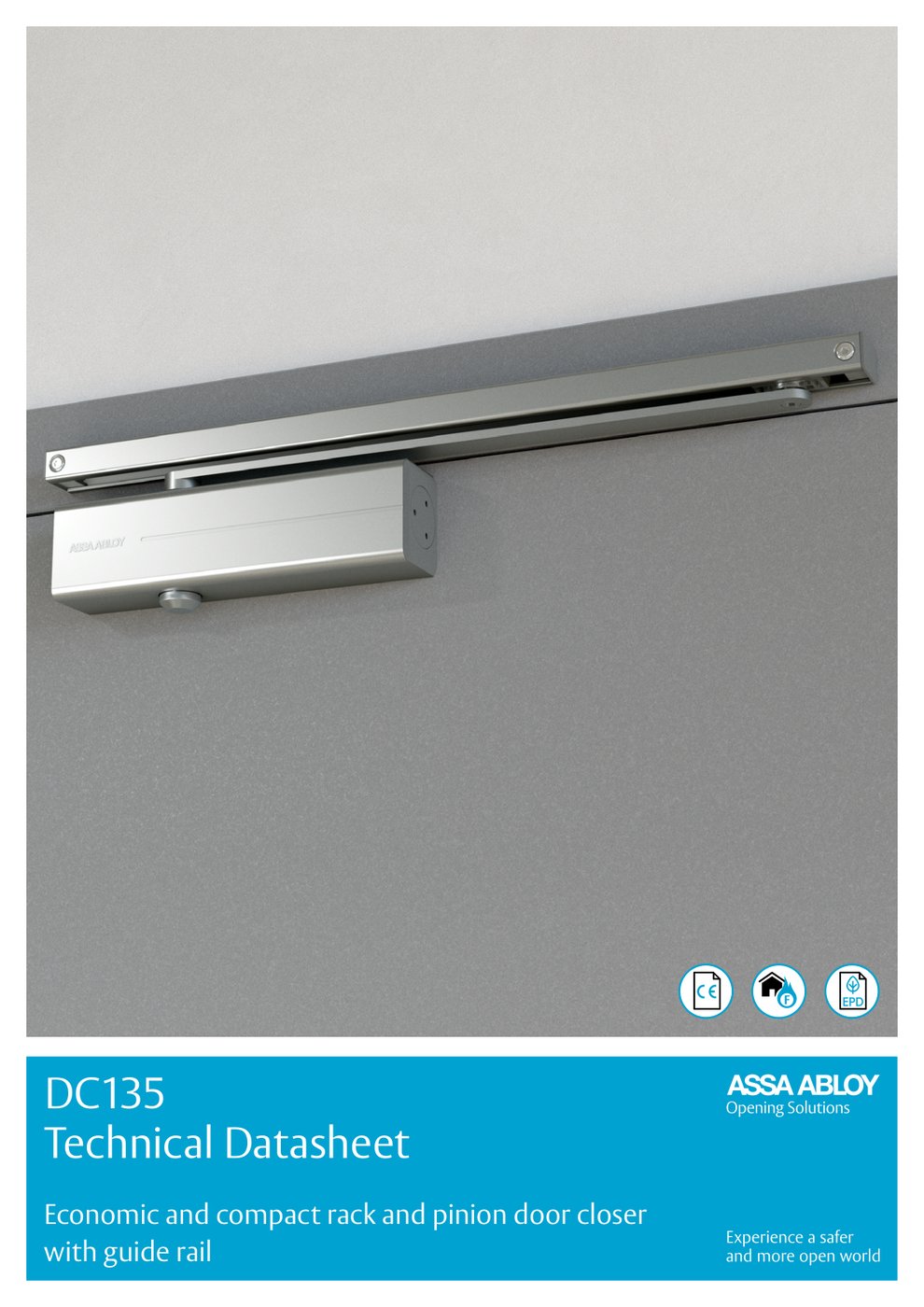

Full technical specification on Assa Abloy

Assa Abloy publishes the complete DC135 datasheet — load curves, mounting variants, certifications, and accessories — as a PDF on their EMEIA site. We mirror the same closer through our specification.

Specify this closer

Specify DC135 on your standard leaves.

Tell us the leaf width, weight, and any fire rating. We'll spec the strength size, the mounting variant (standard, parallel, top-jamb), and confirm the certification chain.

Inquire about DC135
