Assa Abloy · Surface Closer · up to 44"

DC175

Assa Abloy · Made in Sweden · Cam-Action · Heavy-Duty

DC175 is the heavier-duty sibling of DC135 — same cam-action geometry, same surface-mount arm, but built for wider and heavier leaves up to 44 inches. The strength range steps up to EN 3–6, which covers oversize residential entries, multi-family corridor doors, and the high-traffic openings in office and hospitality projects where the leaf cycles thousands of times per week. The default surface closer once the leaf gets large enough that DC135 is being run at the top of its strength range.

UseSurface mount · Heavy-duty

Leaf widthUp to 44 inch / 1100 mm

StrengthEN 3 / 4 / 5 / 6 (adjustable)

Quantity

In the details

Same closer, more leaf.

Heavier mechanism

Same cam-action geometry as DC135, but with a heavier-section body and larger spring — handles leaves up to 44 inch wide and the higher cycle counts of office and hospitality use.

Strength range

Field-adjustable across EN 3, 4, 5, and 6. The 5 and 6 sizes are needed on oversize entries (44 inch+) and on doors exposed to draft loads from corridor pressure.

Fire rating

Tested to EN 1634-1 for FD60 fire-rated leaves. Same certification chain as DC135 — drop-in replacement where the leaf size has grown.

Where we specify it

Oversize residential entries (>38 inch), multi-family corridor doors, office and hospitality interior doors with high cycle counts. The default surface closer once DC135 is undersized.

Technical specifications

Assa Abloy DC175 — full specification

DC175 is the heavy-duty cam-action surface closer in the CamMotion family — sized for residential entries, multi-family corridors, and commercial openings up to 1100 mm. Mounting variants and accessories are coordinated with the door schedule.

Type	Surface-mount · Cam-action · Heavy-duty
Strength	EN 3 / 4 / 5 / 6 (adjustable)
Door width	Up to 1100 mm (43.3")
Door weight	Up to 120 kg (264 lb)

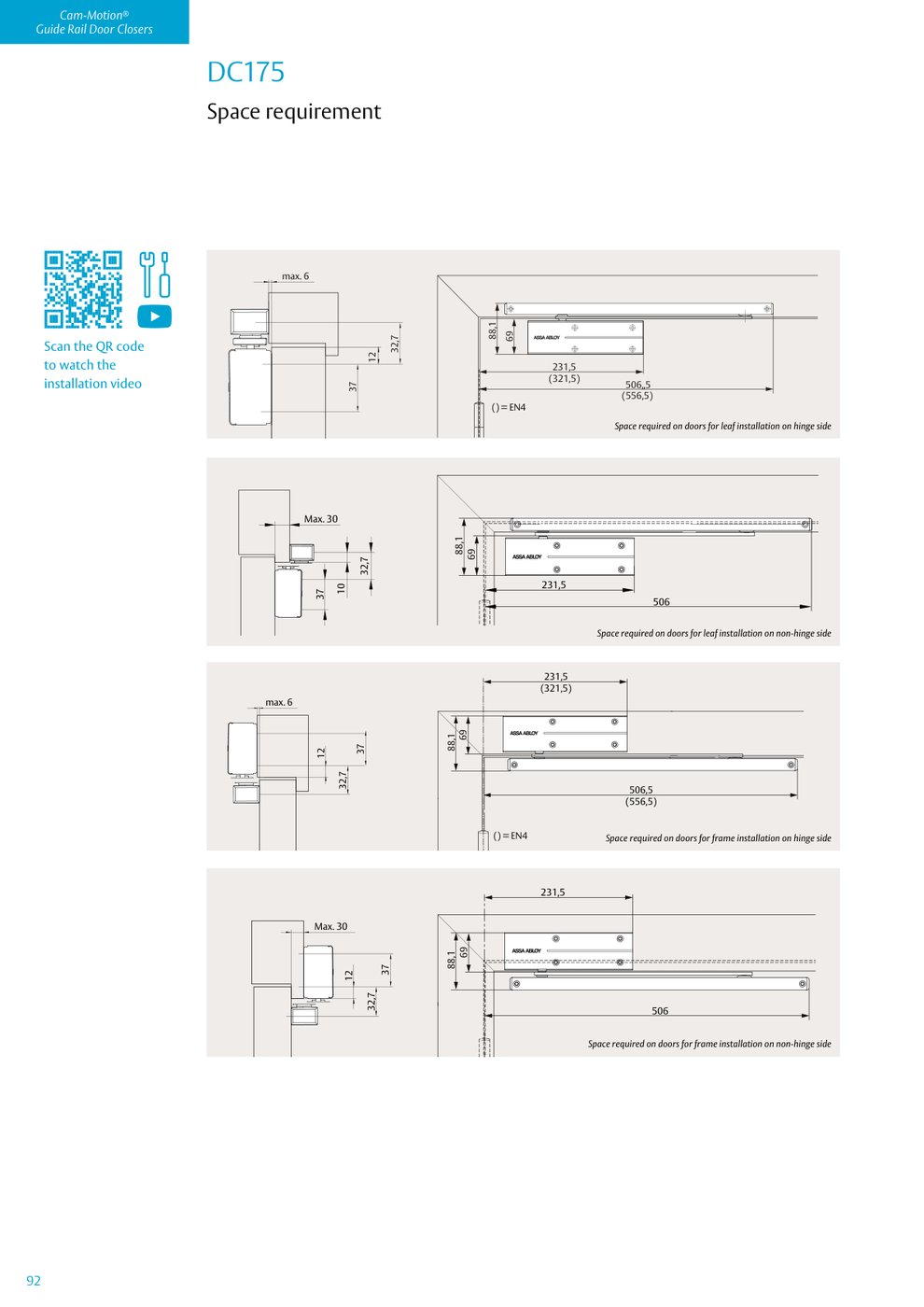

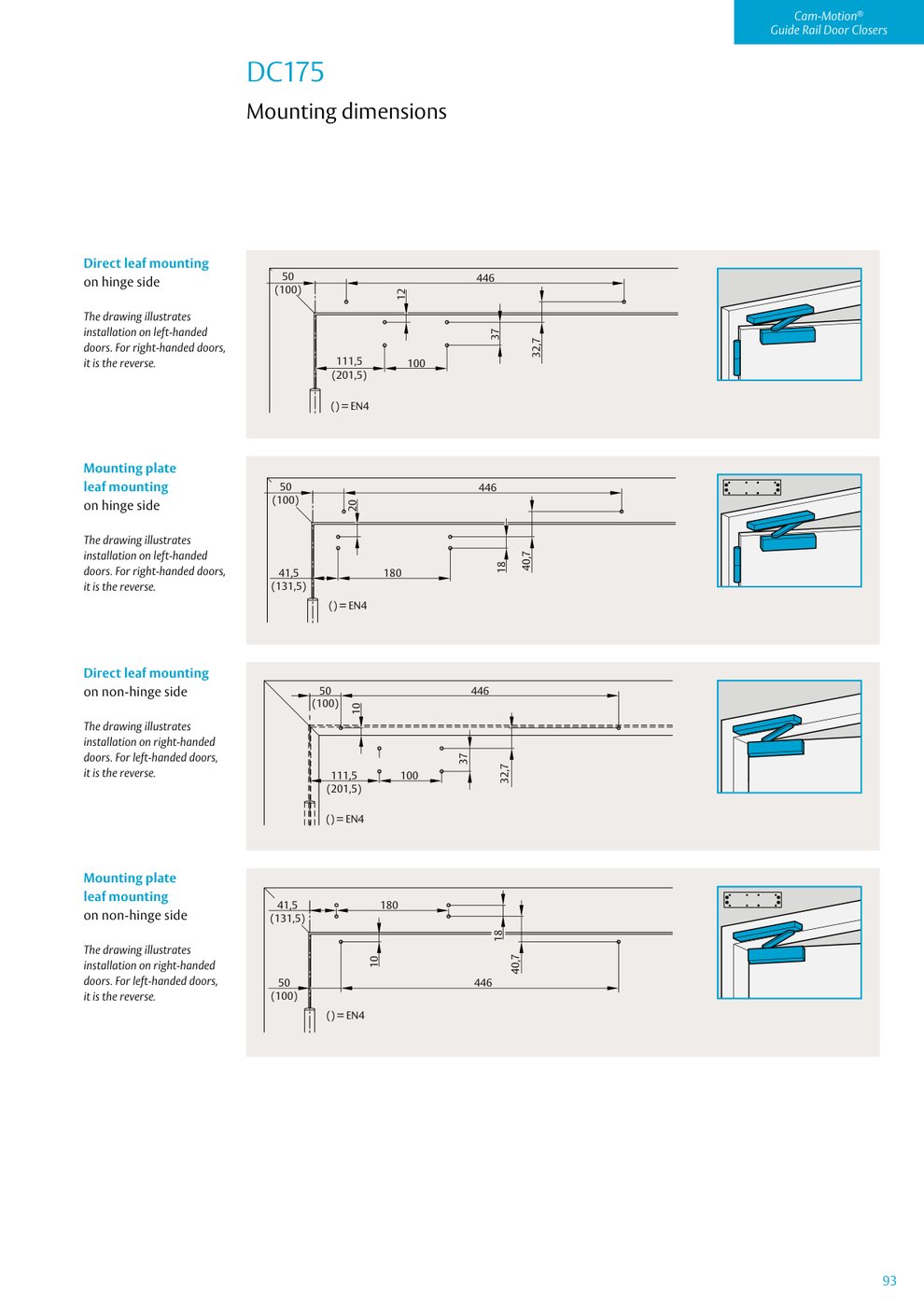

Mounting	Standard / Parallel arm / Top jamb
Closing speed	Adjustable · independent latch speed
Backcheck	Adjustable · 75°—115°
Delayed action	Available
Fire rating	Up to FD60 (EN 1634-1)
Standard	EN 1154 · CE marked

Manufacturer datasheet

Full technical specification on Assa Abloy

Assa Abloy publishes the complete DC175 datasheet — load curves, mounting variants, certifications, and accessories — as a PDF on their AE site. We mirror the same closer through our specification.

External · Manufacturer · PDF

DC175 Datasheet — Assa Abloy

assaabloy.com · Opens in new tab

Specify this closer

Specify DC175 on your oversize leaves.

Tell us the leaf width, weight, traffic level, and any fire rating. We'll spec the strength size, the mounting variant, and confirm the certification chain to permit.

Inquire about DC175
