Premium finishes and a majestic opening — the pivot door for every high-end project

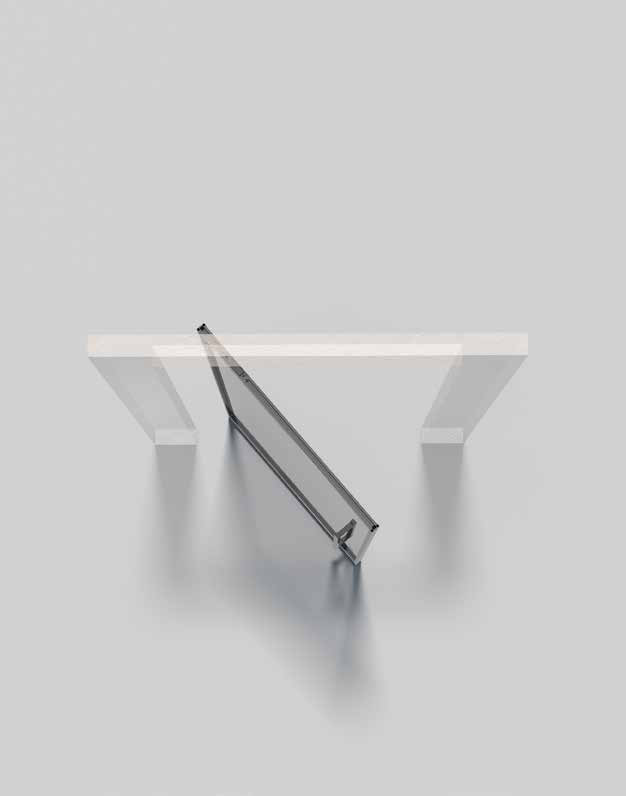

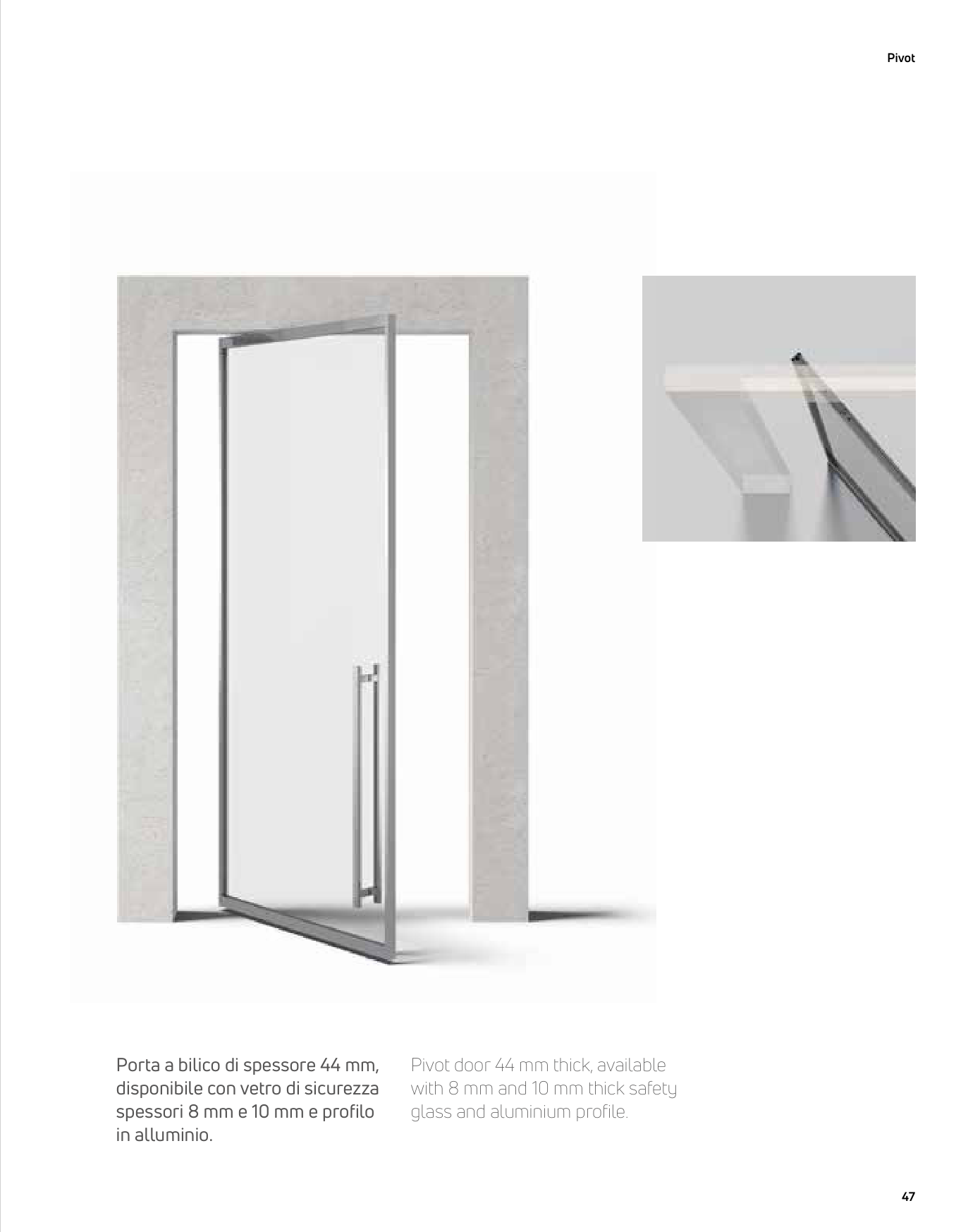

Premium finishes and a majestic opening: the pivot door for every high-end design project. A 44 mm thick leaf, available with 8 mm or 10 mm safety glass and an aluminium profile, pivoting at the side of the opening.

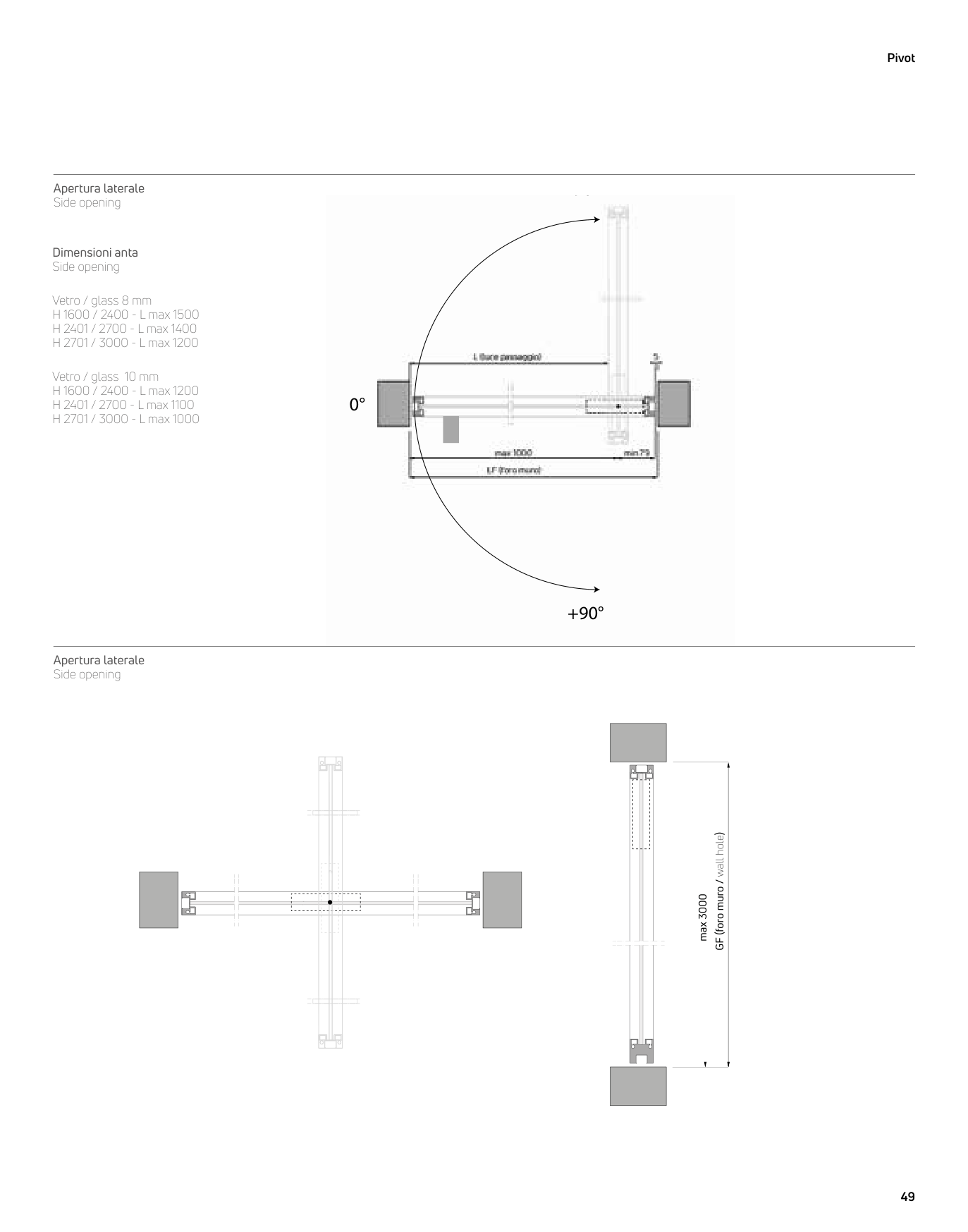

Sized for tall openings — up to 3000 mm — with the pivot axis set at least 75 mm from the jamb and a maximum of 1000 mm.
8 mm glass: up to 1500 mm (H ≤ 2400), 1400 mm (H ≤ 2700), 1200 mm (H ≤ 3000) · 10 mm glass: 1200 / 1100 / 1000 mm
1600–3000 mm
44 mm thick aluminium-framed glass leaf
75–1000 mm from the jamb
8 mm or 10 mm safety glass, F2 / F3 / F4 families
MGL 502 pull pairs in 350, 800, 1200, 1600 or 2000 mm; SLY / SQV handle standard
Finished to match the frame (finish groups A / B / C)
Anodized silver
Varnished white, Anodized black, Varnished brown
Bronze, Champagne, Gold
Any RAL colour on request
Transparent extra-clear, Satin extra-clear
Transparent grey, Transparent bronze
Satin grey, Satin bronze, Stopsol grey, Stopsol bronze
8 mm / 10 mm safety glass
Tell us the wall opening, the leaf size, the glass and the profile finish you are targeting. We quote against the project and confirm lead time with CB Systems.
Inquire about Pivot
