Glass leaves that fold in pairs along a single top track

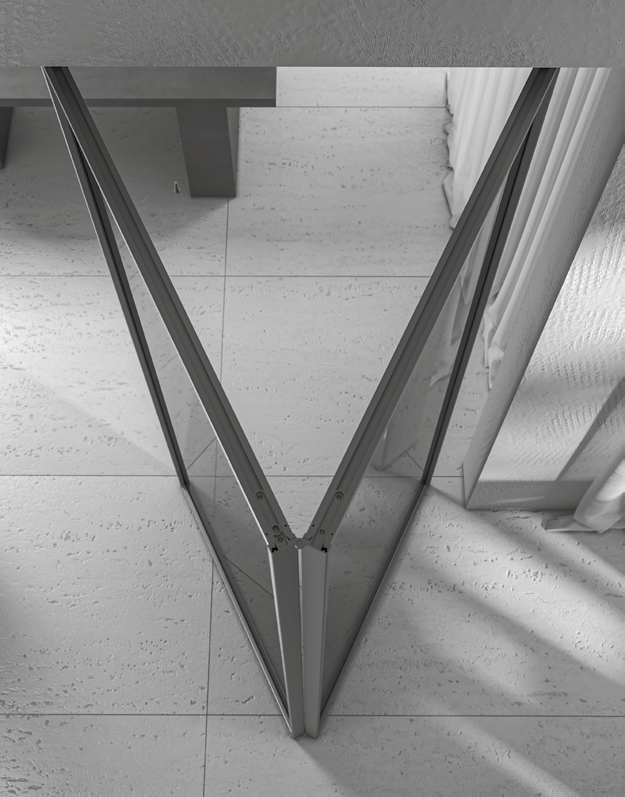

Porta pieghevole: the glass door that folds. Pairs of leaves hinge together and run on a single top track, so a wide opening clears with a short stack of glass at one side.
Fixed at the wall, at the ceiling or in a false ceiling, with the track recessed or surface-mounted; the Linear handle in three lengths or full height.
Double-leaf 800–1200 mm · four-leaf 1600–2400 mm
1600–2700 mm
1-way recessed track 2000–6000 mm with matching recess profile

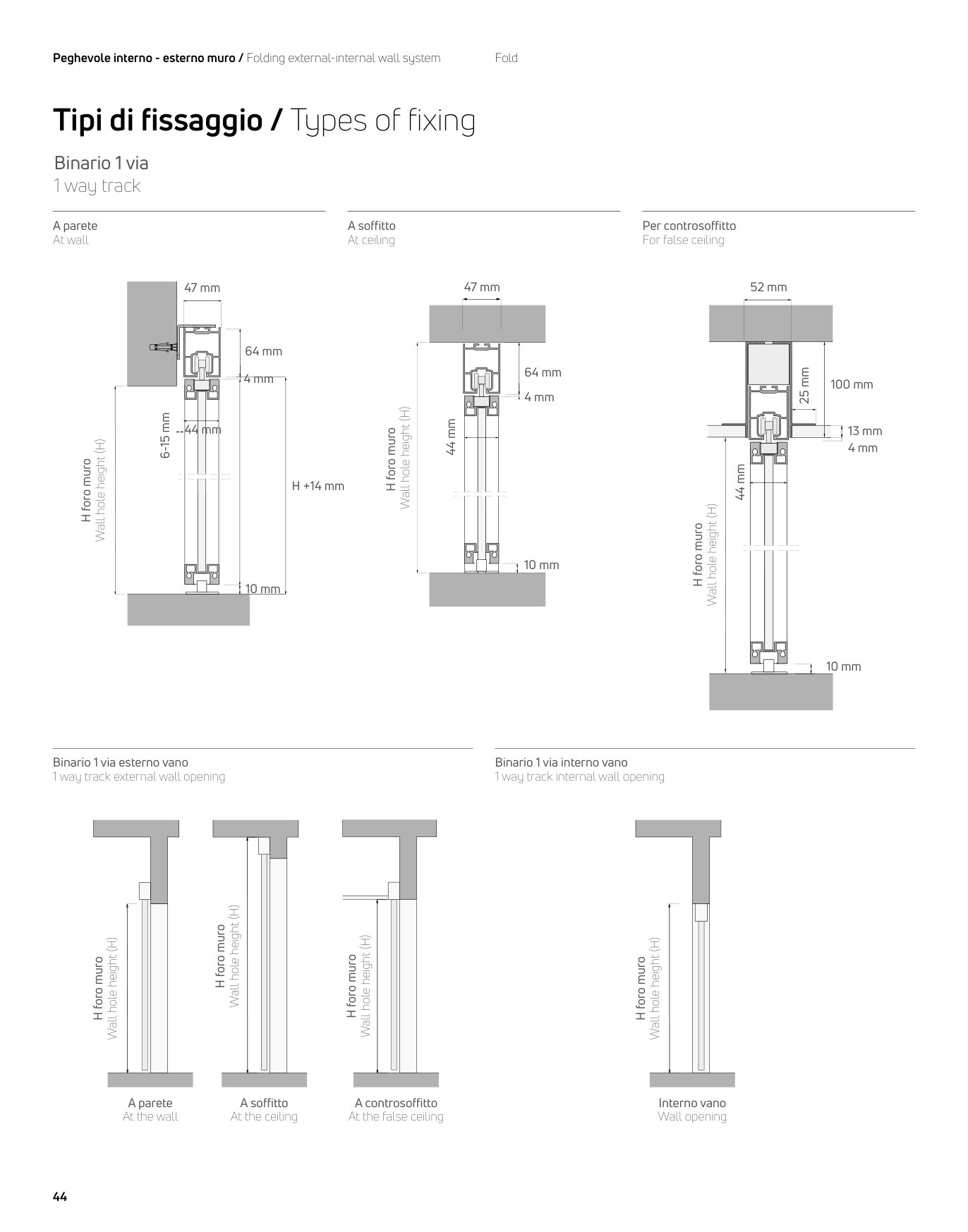

At the wall, at the ceiling or for a false ceiling; external-wall or in-opening
47 mm; 44 mm leaf, 10 mm floor clearance
8 mm or 10 mm safety glass, F2 / F3 / F4 families
Linear handle: 110, 220, 330 mm or full height
Anodized silver
Varnished white, Anodized black, Varnished brown
Bronze, Champagne, Gold
Any RAL colour on request
Transparent extra-clear, Satin extra-clear
Transparent grey, Transparent bronze
Satin grey, Satin bronze, Stopsol grey, Stopsol bronze
8 mm / 10 mm safety glass
Tell us the wall opening, the leaf size, the glass and the profile finish you are targeting. We quote against the project and confirm lead time with CB Systems.
Inquire about Fold
