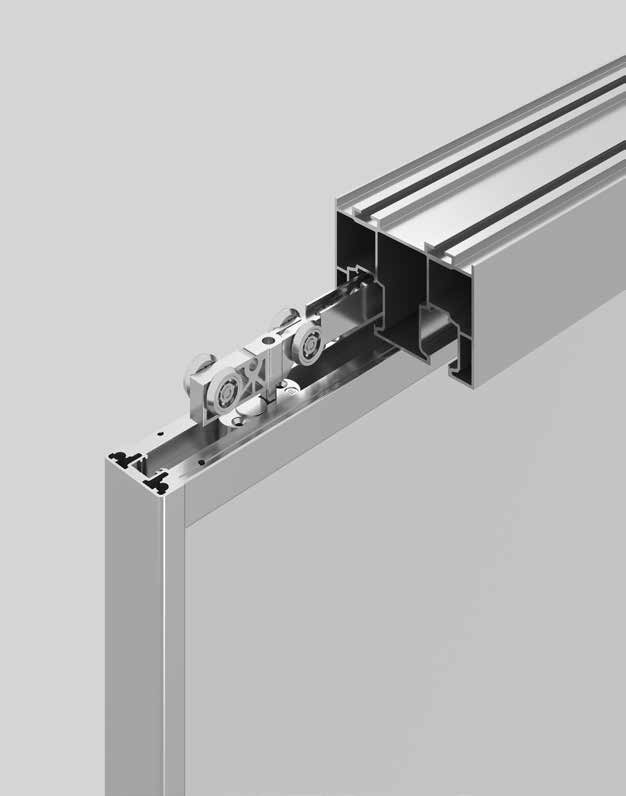

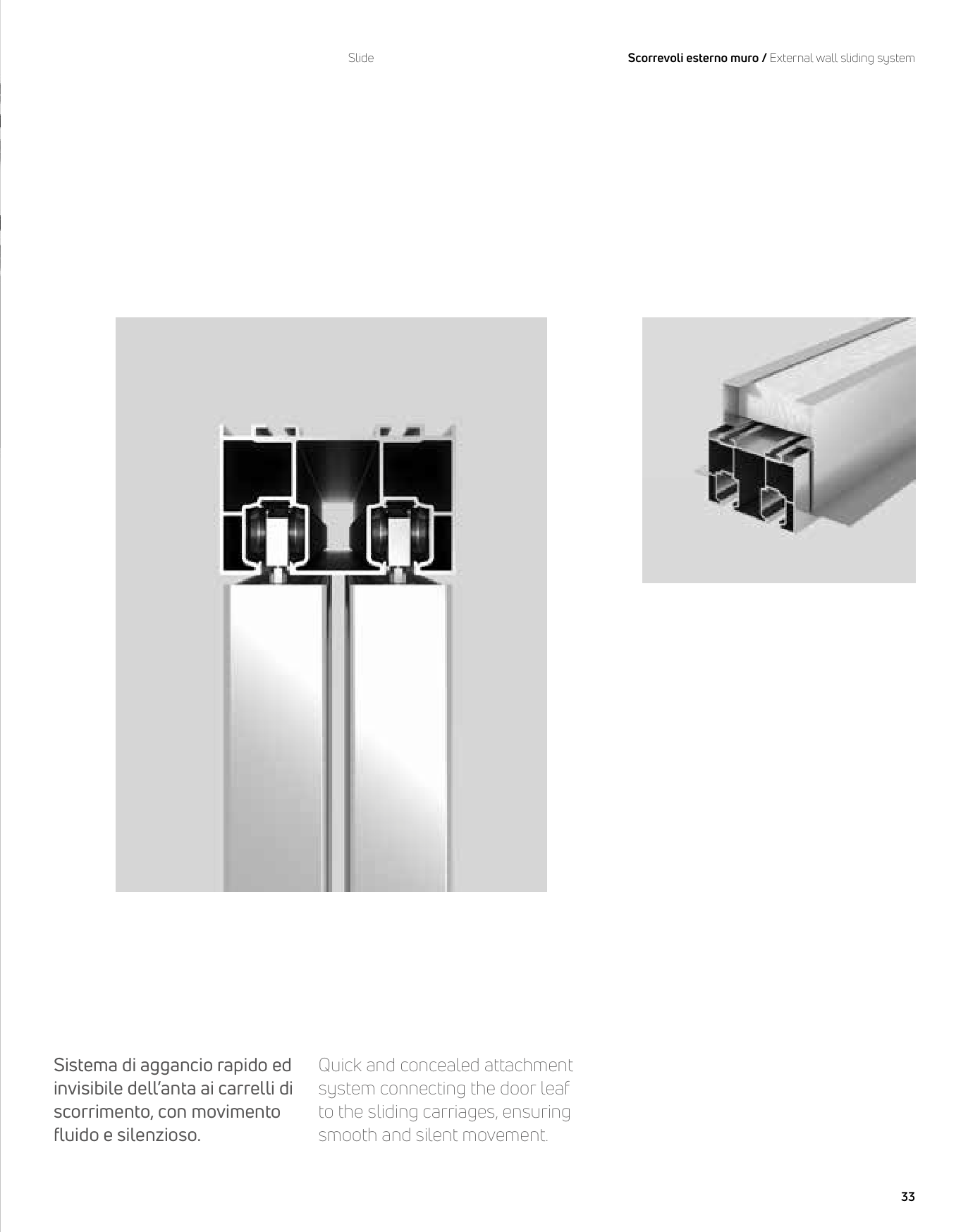

Quick, concealed attachment of the leaf to the carriages — smooth and silent
A quick and concealed attachment system connects the door leaf to the sliding carriages, ensuring smooth and silent movement. The track fixes to the wall, the ceiling or a false ceiling, recessed or surface-mounted.
One-, two- and three-track versions run single leaves, passing pairs and telescopic stacks across openings up to 6 metres of track.
Width 600–1200 mm · height 1800–2700 mm
1-, 2- or 3-way recessed track profiles, 2000–6000 mm; sliding-track recess profiles to match

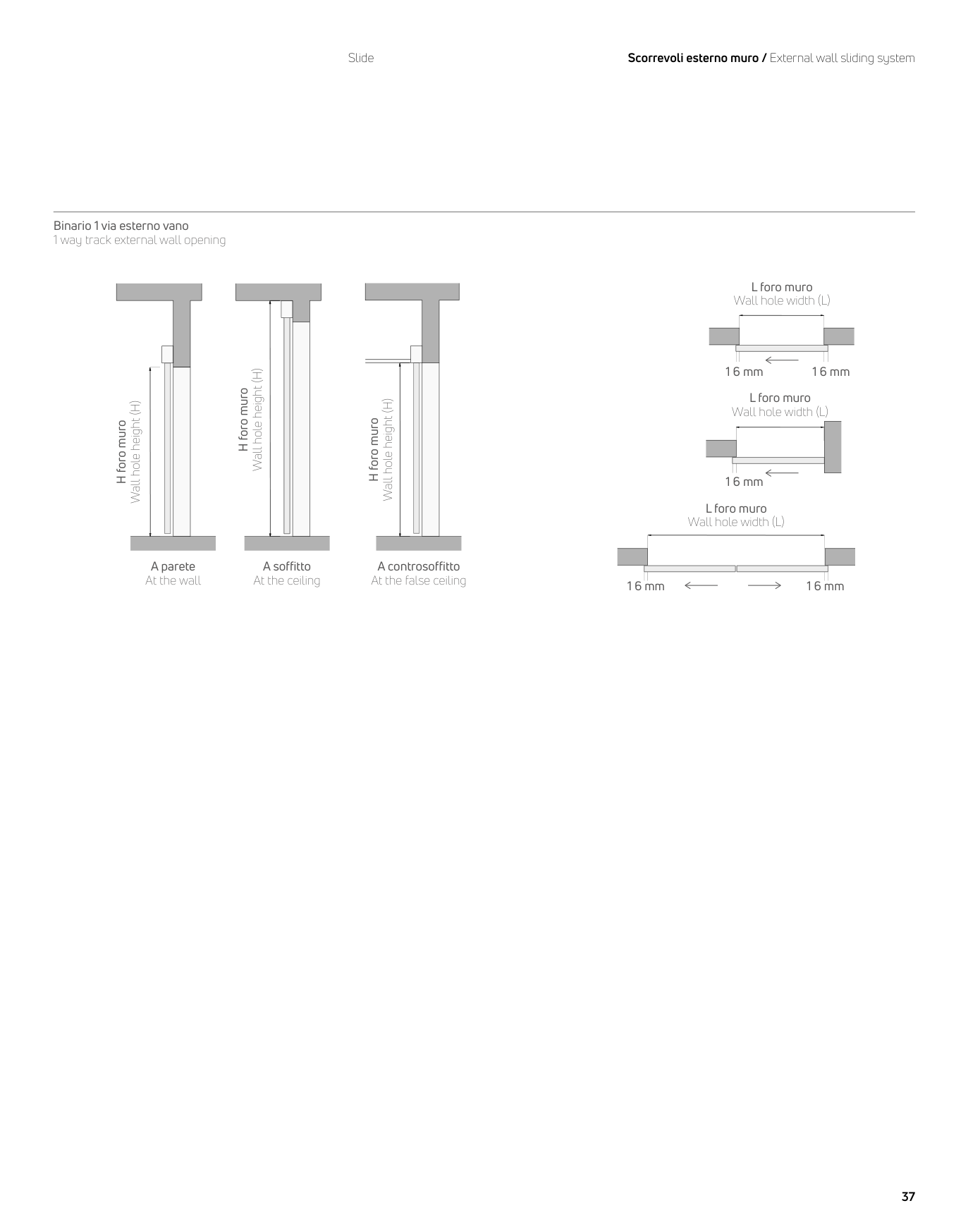

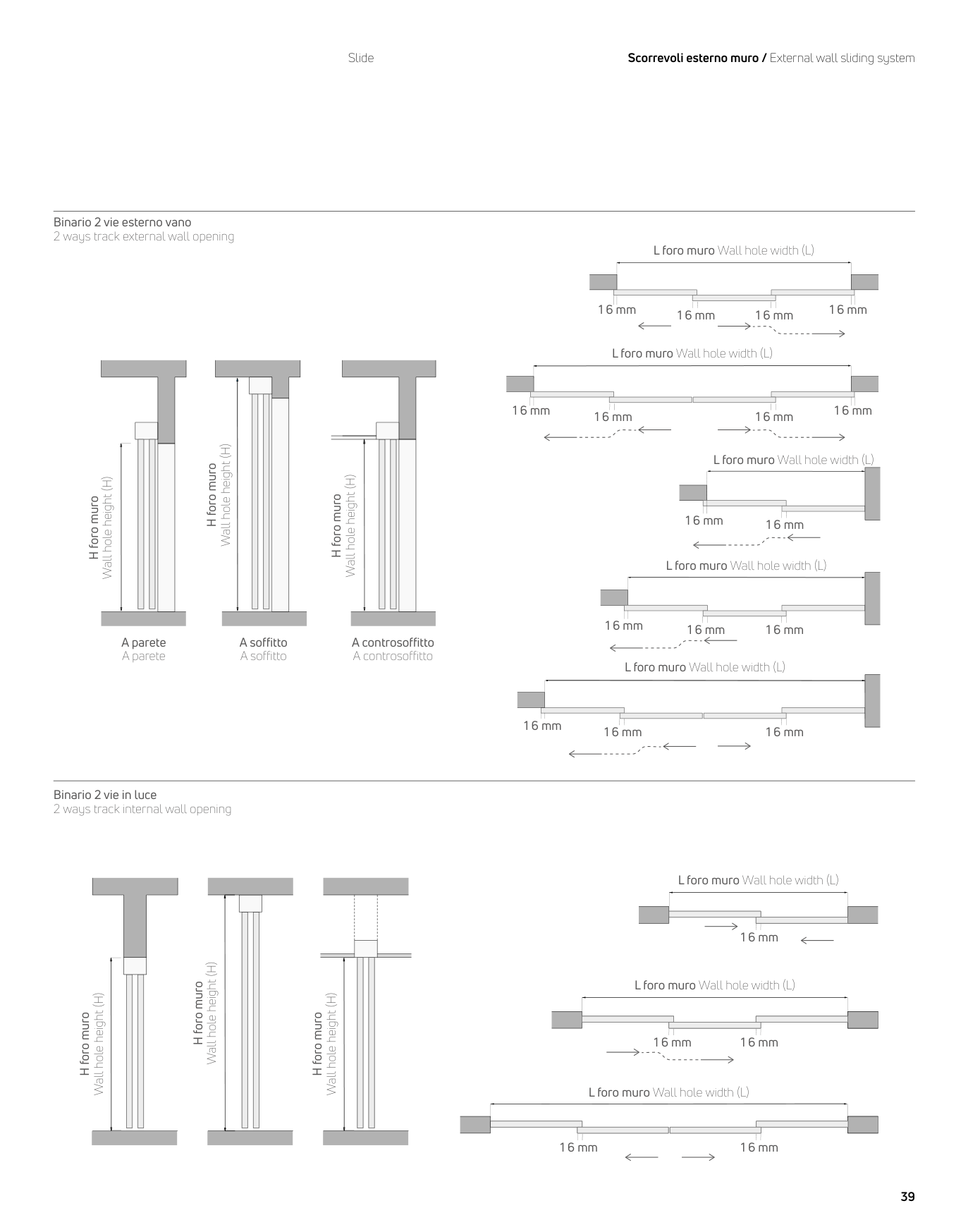

At the wall, at the ceiling or for a false ceiling; external-wall or in-opening layouts

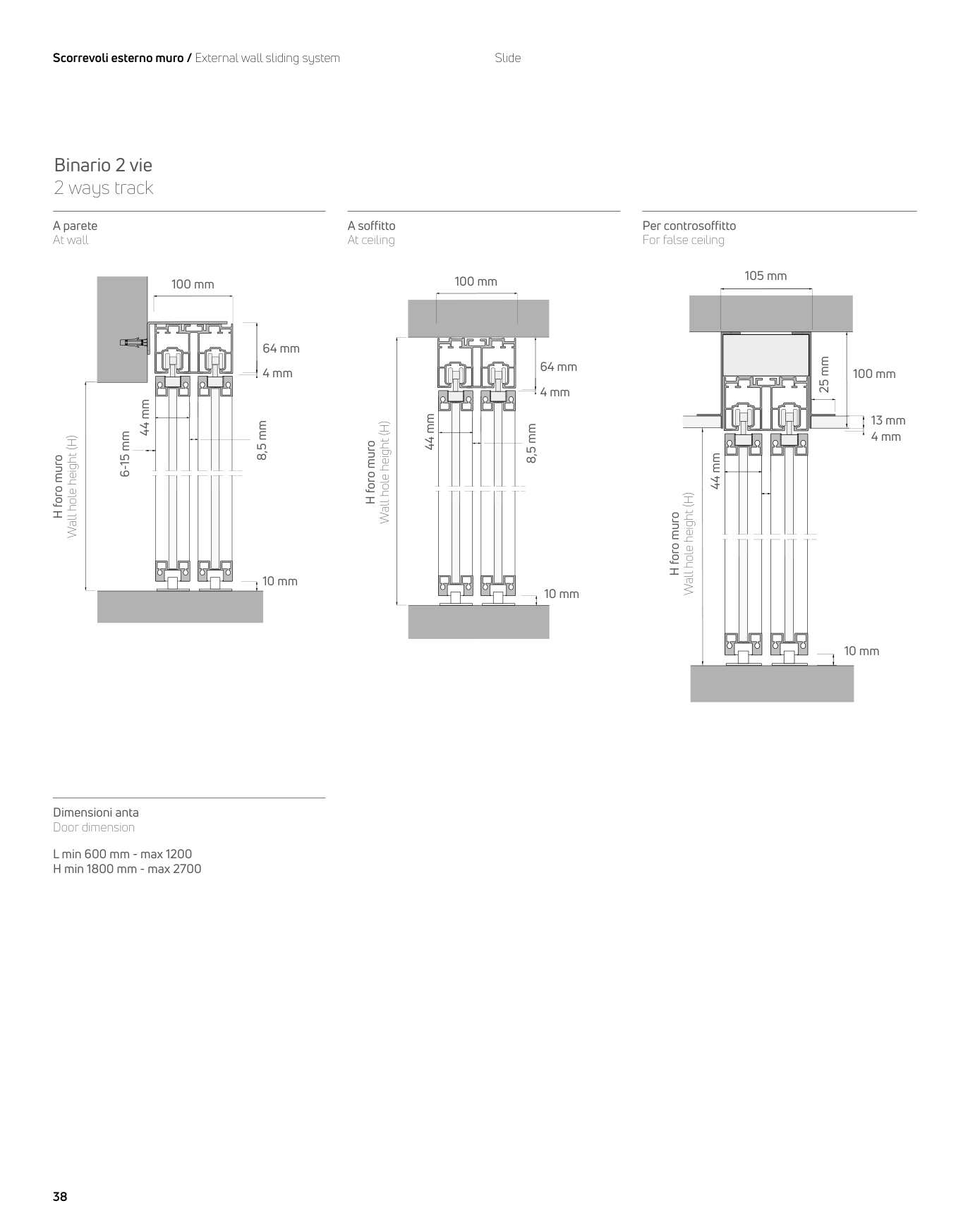

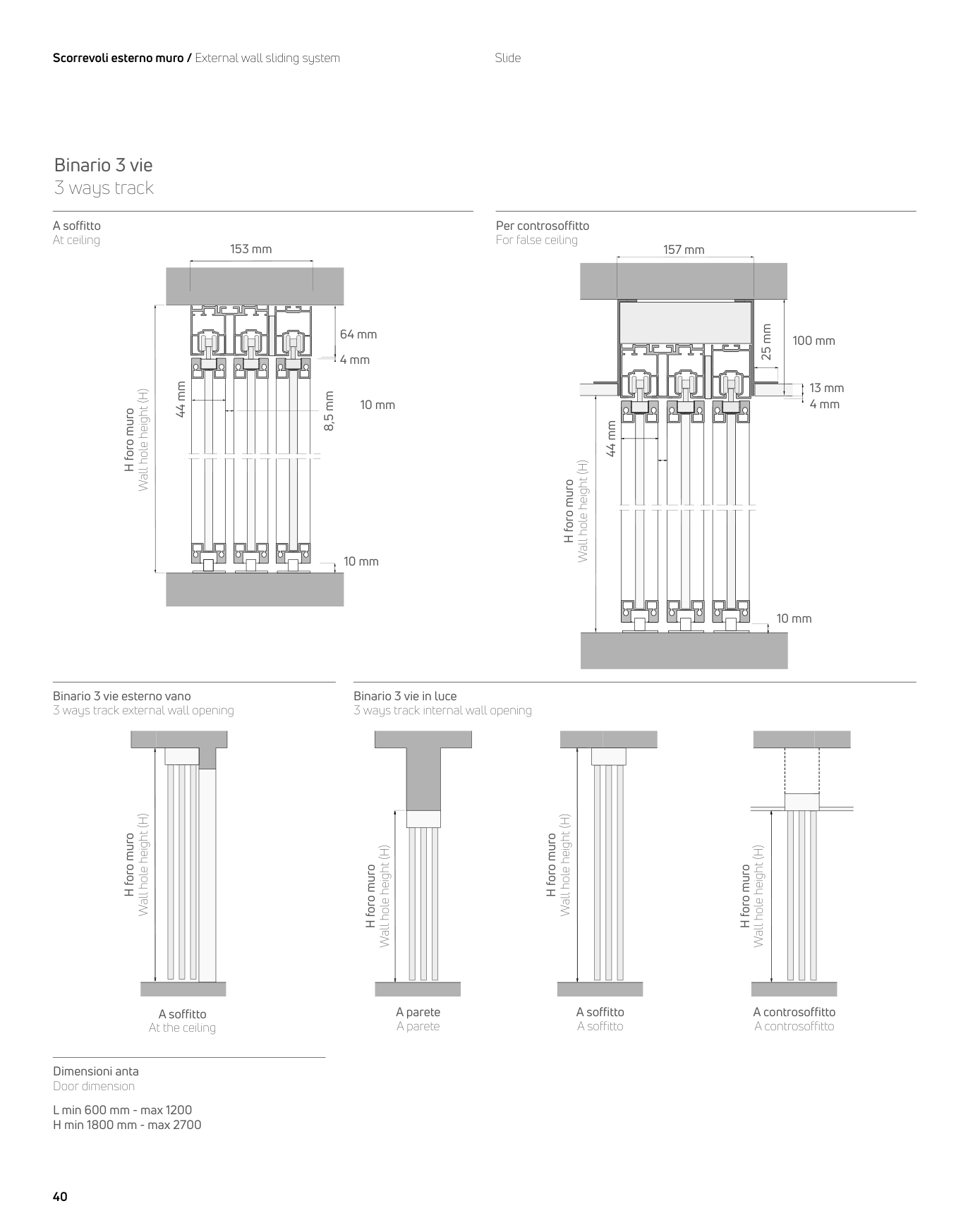

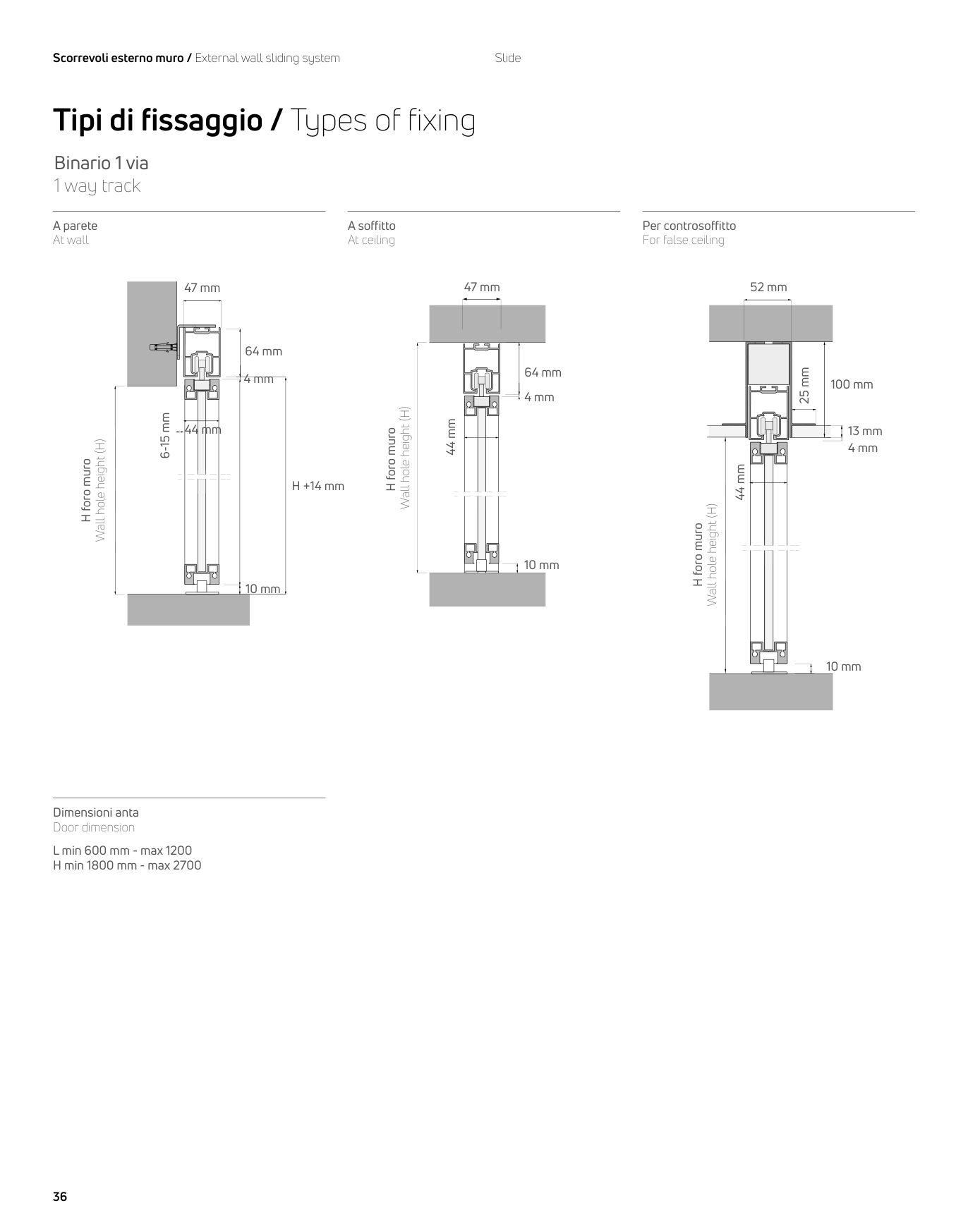

47 mm (1-way) · 100 mm (2-way) · 153 mm (3-way); 44 mm leaf, 10 mm floor clearance
Soft-close kits for 80 kg and 120 kg leaves; non-soft-close kit for leaves under 650 mm; fixed-leaf kit
8 mm or 10 mm safety glass, F2 / F3 / F4 families
MGL 116 flush pull standard; MGL 104, 116 Large, 117 Large, 119–123 available
Anodized silver
Varnished white, Anodized black, Varnished brown
Bronze, Champagne, Gold
Any RAL colour on request
Transparent extra-clear, Satin extra-clear
Transparent grey, Transparent bronze
Satin grey, Satin bronze, Stopsol grey, Stopsol bronze
8 mm / 10 mm safety glass
Tell us the wall opening, the leaf size, the glass and the profile finish you are targeting. We quote against the project and confirm lead time with CB Systems.
Inquire about Slide
