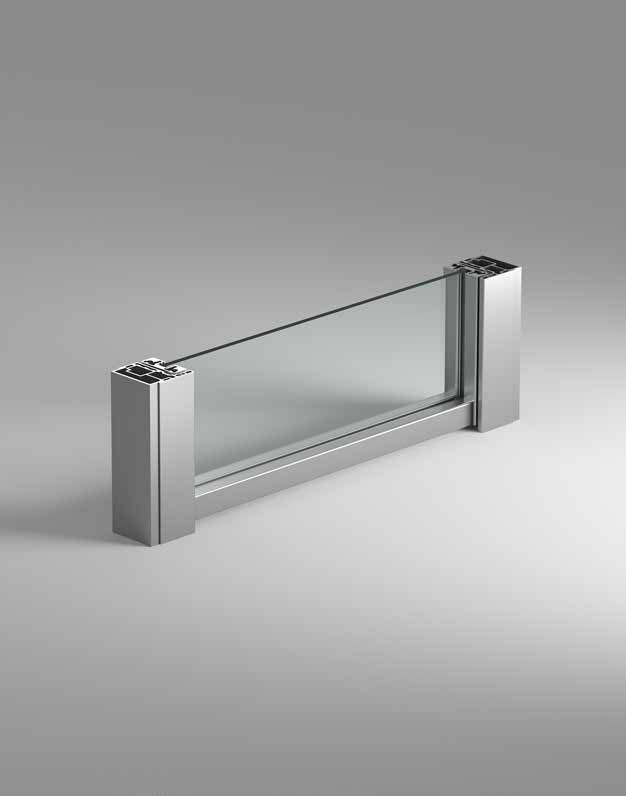

Minimalist aluminium frame with a compensation profile inside the opening

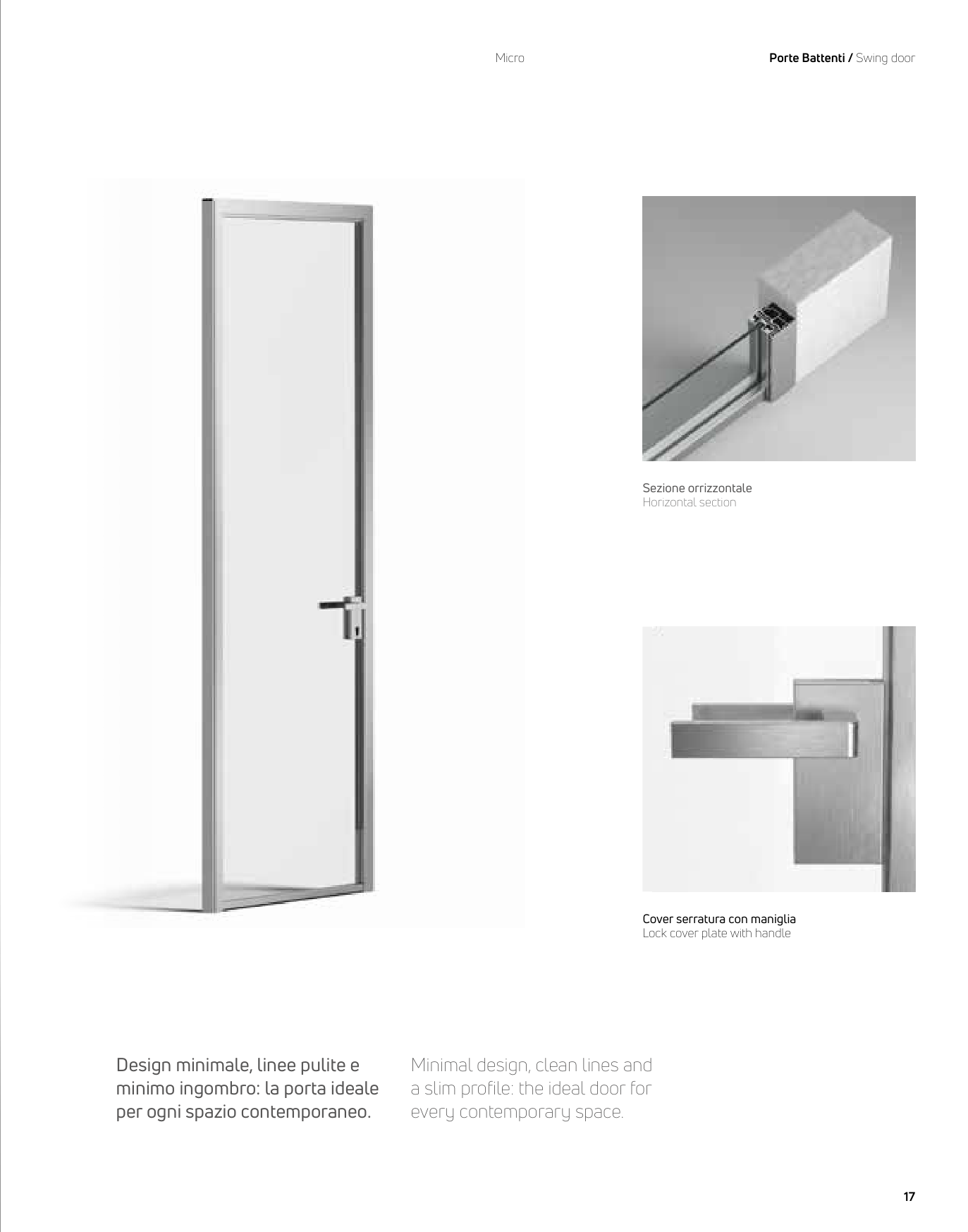

Minimal design, clean lines and a slim profile: the ideal door for every contemporary space. Micro sits inside the opening rather than wrapping it, with a 20 × 50 mm compensation profile taking up the tolerance.
The result is a frame of only 42.5 mm depth with a 19 mm face — the glass door at its most reduced.

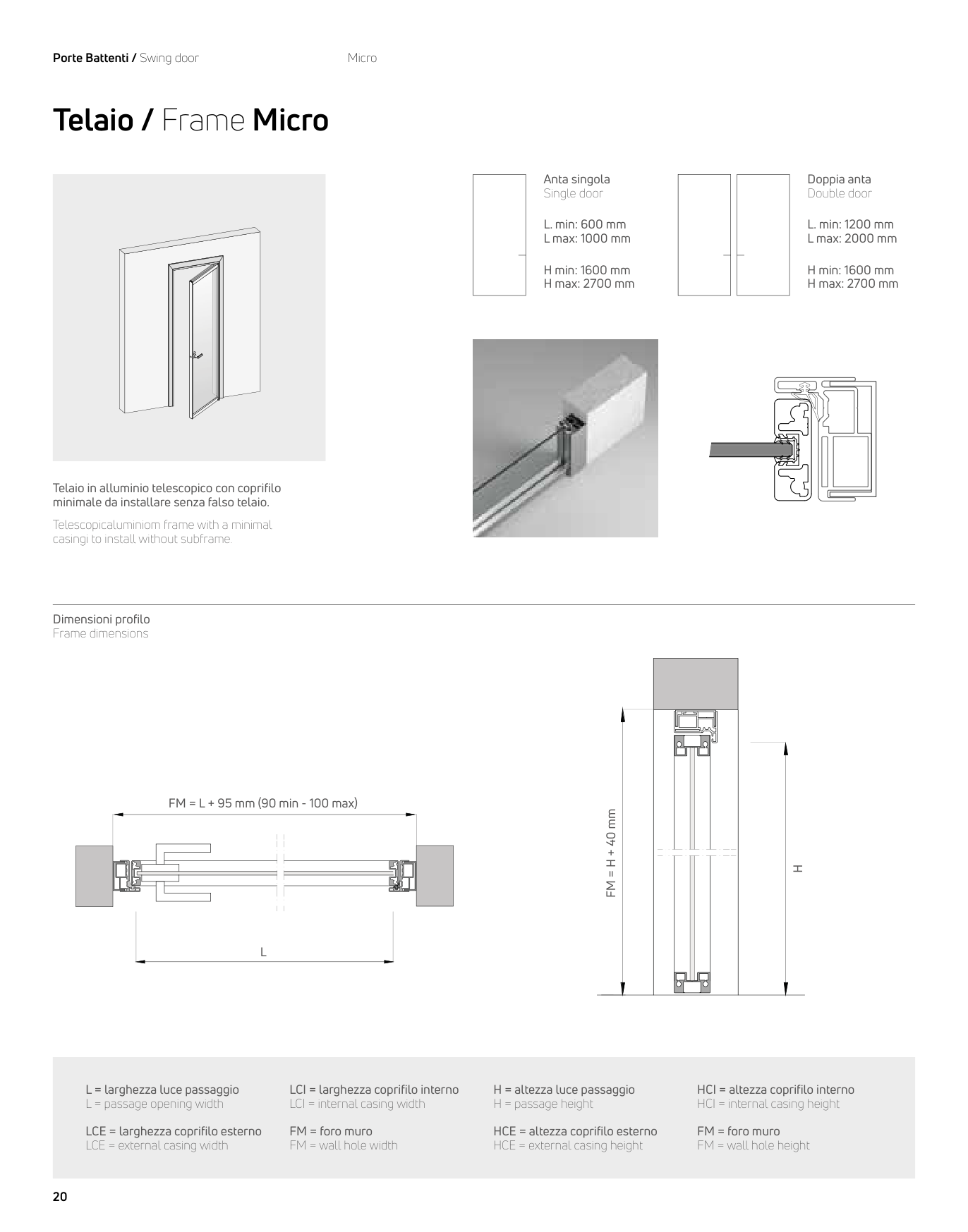

Single 600–1000 mm · double 1200–2000 mm
1600–2700 mm; transom version for openings above 2100 mm

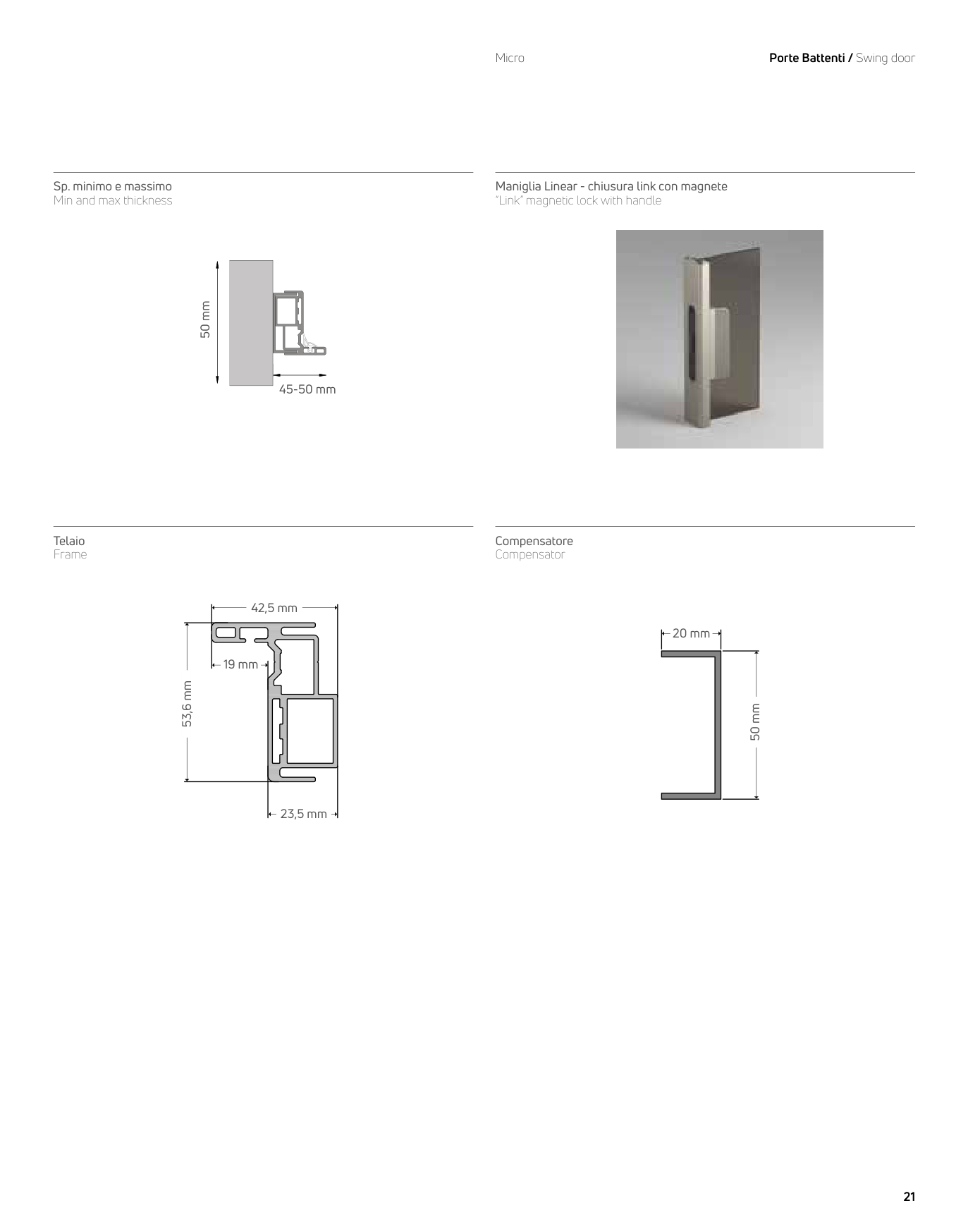

45–50 mm (frame 42.5 × 53.6 mm with a 20 × 50 mm compensator)
Minimal aluminium profile installed inside the opening, no subframe
8 mm or 10 mm safety glass, F2 / F3 / F4 families
"Link" magnetic closure with the Linear handle (standard)
Widths under 600 mm and over 1000 mm available on request
Anodized silver
Varnished white, Anodized black, Varnished brown
Bronze, Champagne, Gold
Any RAL colour on request
Transparent extra-clear, Satin extra-clear
Transparent grey, Transparent bronze
Satin grey, Satin bronze, Stopsol grey, Stopsol bronze
8 mm / 10 mm safety glass
Tell us the wall opening, the leaf size, the glass and the profile finish you are targeting. We quote against the project and confirm lead time with CB Systems.
