AGB Wave
AGB · Magnetic Mortise · Swing Doors

Wave

AGB · Made in Italy · Magnetic Latch

Wave is AGB's reinvention of the standard mortise. The latch is replaced with a recessed magnetic block that draws into the strike as the leaf approaches, eliminating the click of a spring-return tongue and the friction that wears at every cycle. Door closes silently, opens with a featherweight handle pull, and lasts longer because there's no metal-on-metal at the latch. Same BB / PZ / WC variants as Polaris — the quiet upgrade for projects where the door noise matters.

UseQuiet-spec interior swing doors
ActionMagnetic latch · Mechanical deadbolt
EntriesBB · PZ · WC
Configure the finish
Anodised silver

Click a swatch to preview the finish on the hero. The default photo is the manufacturer's reference render — ask us for physical samples mailed to your studio.

Choose function
Quantity
FunctionMagnetic latch + Deadbolt
Door TypeInternal swing
VariantsBB · PZ · WC
LatchSilent · No spring
Backset50 / 60 mm
Made inItaly (AGB)
In the details

The latch without the click.

Magnetic latch

A flush magnetic block in the leaf draws into a steel keeper in the frame. No spring, no tongue, no metal-on-metal contact — the door closes with a soft pull, not a click.

Mechanical deadbolt

The deadbolt is unchanged from the conventional mortise — same hardened steel bolt, same key turn, same security. Magnetic action only replaces the passage latch.

Variants

Same BB (bathroom), PZ (Euro), and WC (privacy turn) configurations as Polaris. Direct upgrade path — the prep is identical.

Where we specify it

Master suites, libraries, study doors, anywhere the spring-return click of a Polaris would be audible enough to register. The premium upgrade in the AGB swing range.

Highlights

What sets Wave apart

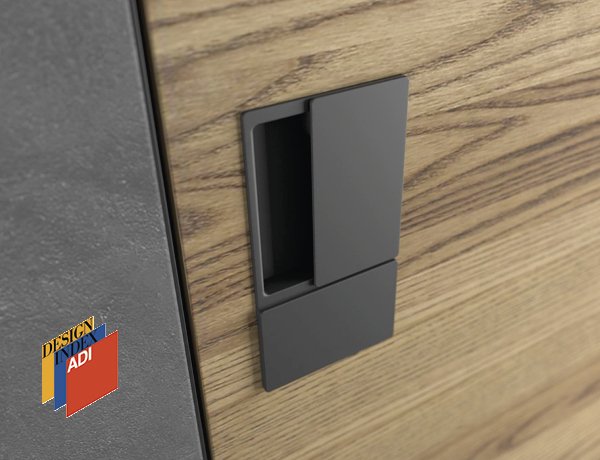

Minimal design

Minimal design

Wave movement

Wave movement

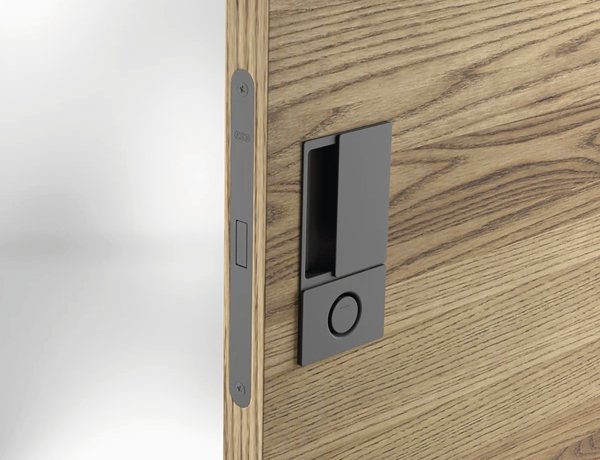

The handle that combines grip and closure

The handle that combines grip and closure

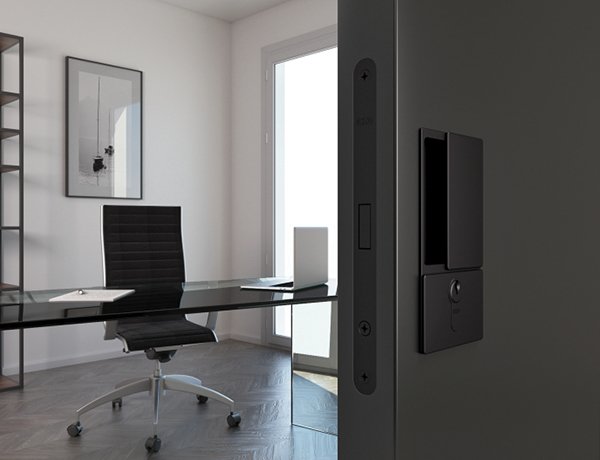

Maximum freedom

Maximum freedom

Technical features

Specification at a glance

Closing
Closing
Backset
Backset
Technical specifications

AGB Wave — full specification

Wave is a direct prep-compatible upgrade over Polaris 2XT — the leaf and frame mortise dimensions are identical. The values below are the standard configuration; specialized faceplates and finishes are available on request.

Closing typeMagnetic latch + Mechanical deadbolt
Backset (entraxe)50 / 60 mm
Spindle (hub)8 × 8 mm
Forend / faceplateStainless · 22 / 24 mm · square or radius
Latch travel0 — magnet only · no spring
DeadboltSingle throw · 20 mm projection
Cylinder fitBB · PZ · WC variants
ReversibilityField-reversible without disassembly
StandardsEN 12209 · Grade 7
Anti-corrosionEN 1670 · Grade 4
Available finishes

4 finishes — specified per project

Finish swatches direct from AGB. Configure the finish in the panel above to update the cart line, or ask us for physical samples mailed to your studio before specification.

Anodised silver
Anodised silver
Matt satin chromium plated
Matt satin chromium plated
Semi-bright black
Semi-bright black
Matt white RAL 9016
Matt white RAL 9016
Manufacturer datasheet

Full technical specification on AGB.it

AGB publishes the complete Wave datasheet — magnetic-latch geometry, deadbolt specs, variants, and dimensions — on their website. We mirror the same body and finish options through our specification.

External · Manufacturer
Wave (Swing) — AGB product page
agb.it · Opens in new tab
Specify this lock

Specify Wave for the doors that need to be quiet.

Tell us where the door lives — master suite, library, primary bath — and the function you need. We'll spec the variant and pair it with a low-friction handle.

Inquire about Wave
