T-Belt

Telescopic synchronized system for multiple doors

Built on Terno Scorrevoli's seventy years of sliding-hardware engineering, T-Belt adapts to wood, framed glass, and aluminum-framed leaves through four bracket configurations — Classic, Step, Universal frame, and Vetro 40.

Anodized silver and anodized black rail finishes are standard. The system carries up to 120 kg per leaf and accepts panels 26–47 mm thick, 600–1250 mm wide. The synchronized-movement kit is optional and coordinates 2–3 panels in one motion.

BrandTerno Scorrevoli

Made inItaly

SourceManufacturer →

CategorySliding · Specialty

Push one panel, the rest follow.

T-Belt is Terno's newest sliding system — a telescopic mechanism for multiple doors driven by a belt rather than direct surface-to-surface contact. Push one panel and the rest follow in sync, delivering fluid, silent motion that no manual multi-door system can match.

Synchronized geometry

Belt loops between trolleys

A continuous belt loops between trolleys so a push on one panel transfers force to every other panel on the same rail. The belt itself never touches a fixed surface — there's no friction load to overcome, just clean kinetic transfer.

Variants

Configurable options.

T-Belt · Classic

Wooden doors with the standard Classic bracket — milled-flush mounting.

T-Belt · Step

Wooden doors with the Step bracket — frontal automatic clamp, no-milling installation.

T-Belt · Universal

Framed glass doors via the Universal / AluFramek frame — prefabricated jamb integration.

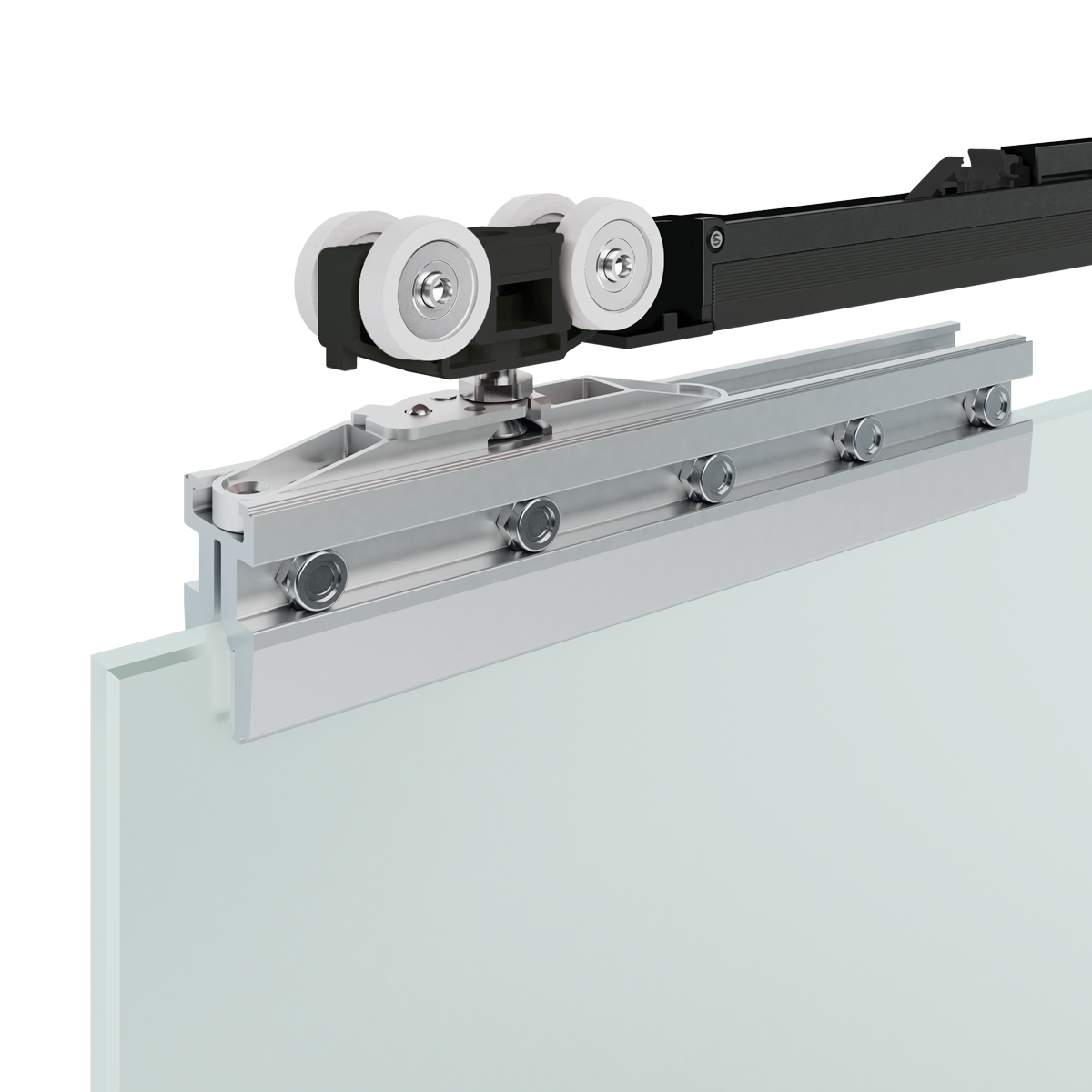

T-Belt · Vetro 40

Glass doors with the Vetro 40 bracket — designed for direct glass-leaf clamping.

Specifications

The numbers.

Maximum leaf weight

120 kg per leaf

Leaf width range

600–1250 mm

Door thickness

26–47 mm

Materials

Wood, framed glass, aluminum

Rail finishes

Anodized silver, anodized black

Movement

Telescopic · synchronized via belt

Bracket families

Classic, Step, Universal frame, Vetro 40

Applications

Where it belongs.

Multi-door installations where one motion should move all panels
Space-constrained openings requiring maximum passage width
Framed glass partitions and aluminum-leaf systems
Hospitality and commercial settings where silent operation is required
