Blum · Wall Unit Lifters

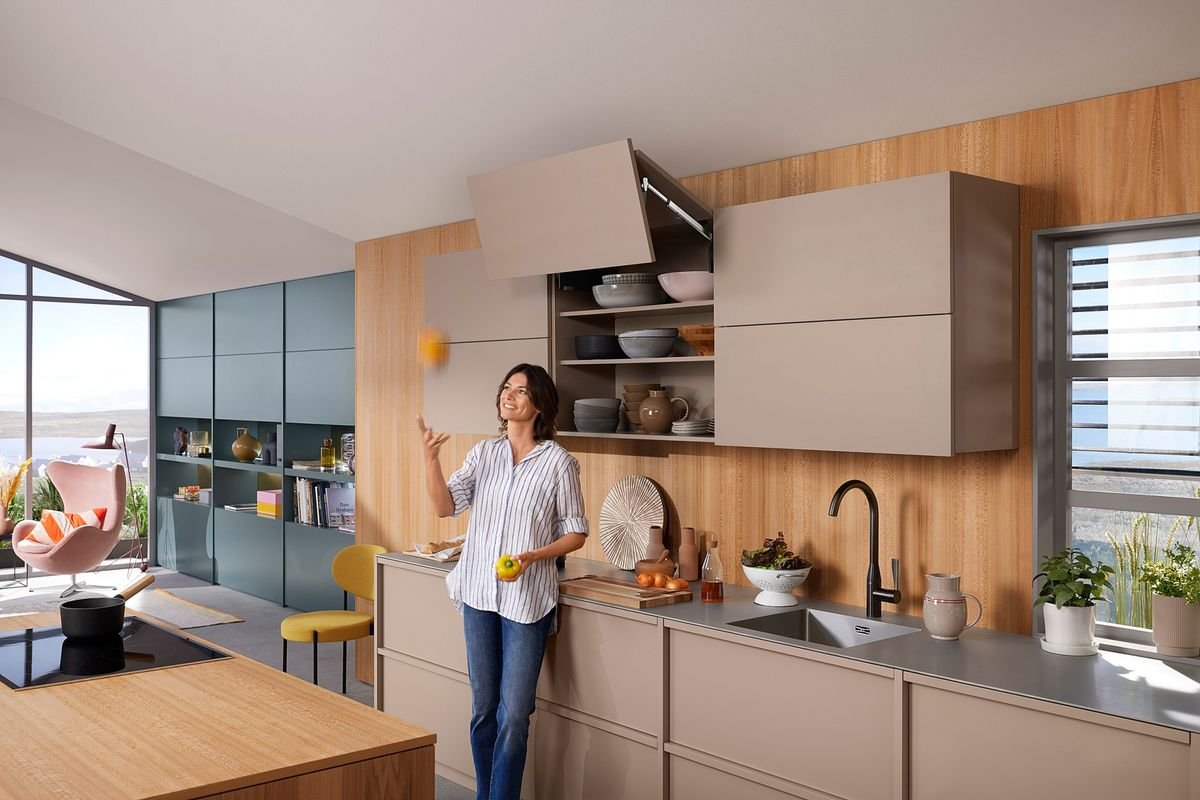

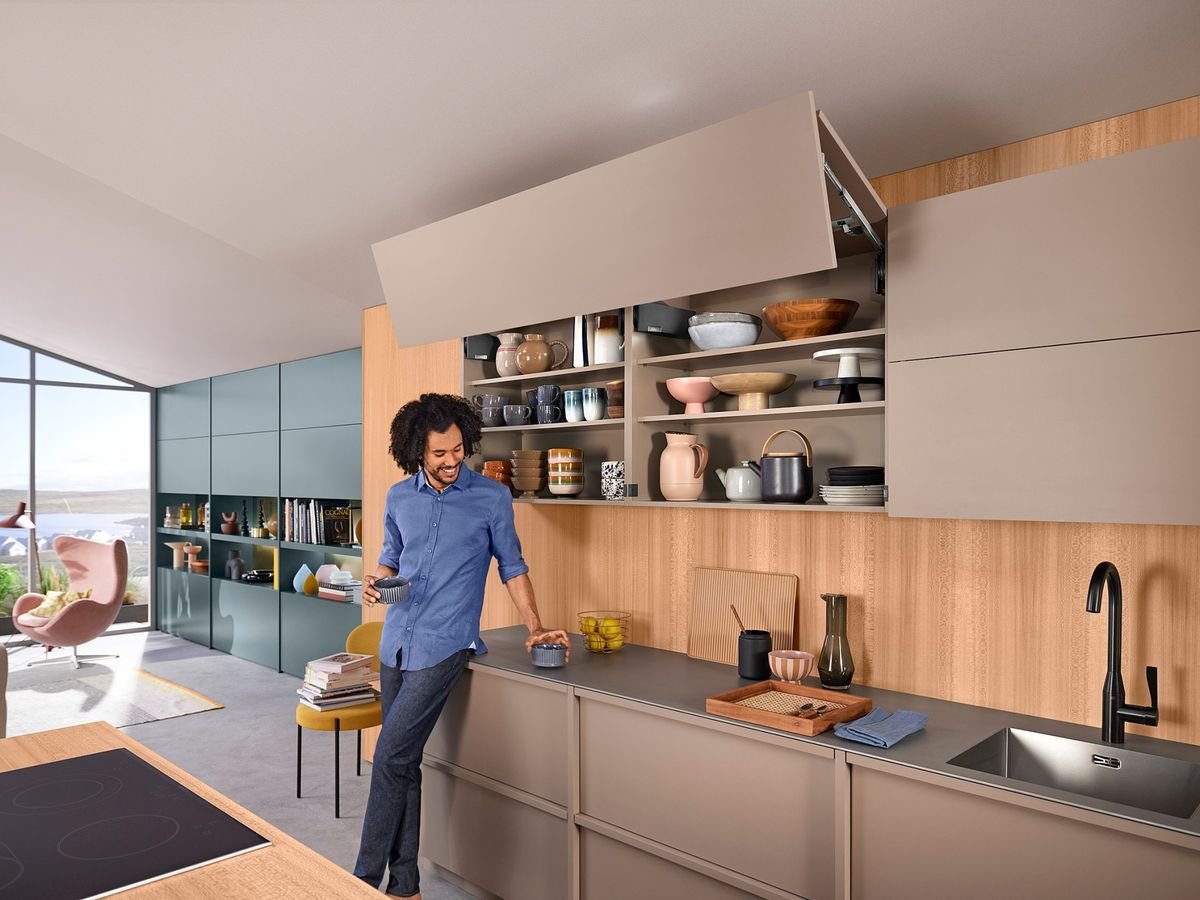

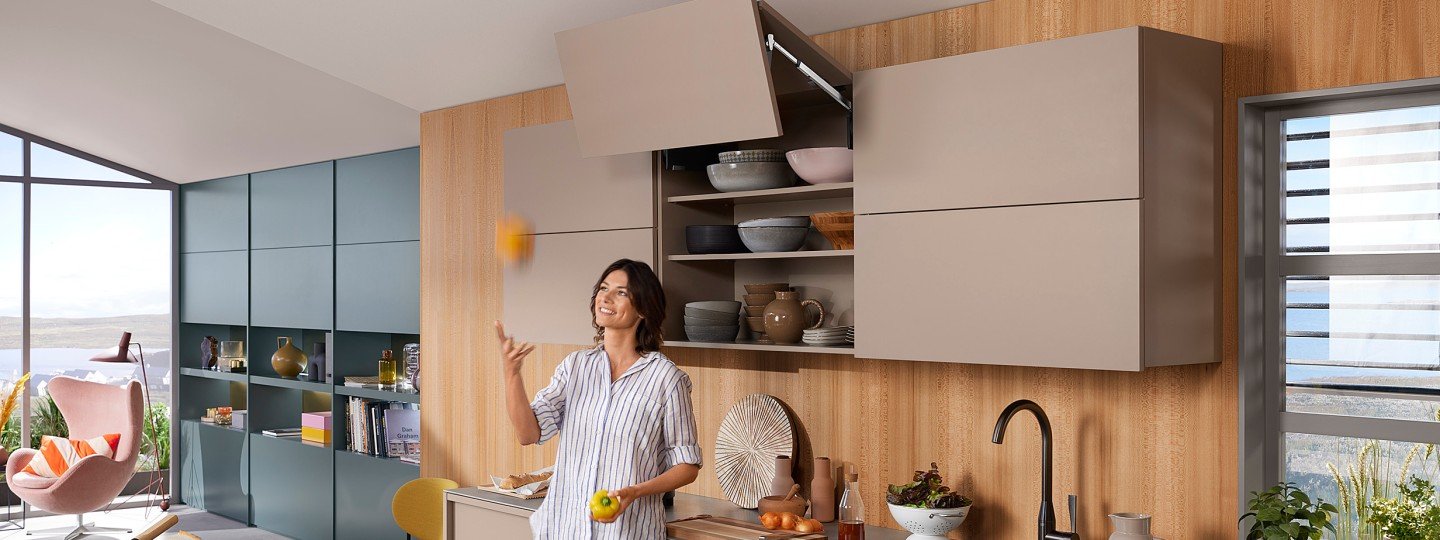

AVENTOS HF top is ideal for taller wall cabinets. It allows you to design large lift systems with two fronts, creating extensive freedom of movement — and the bi-fold lift system can remain open during use.

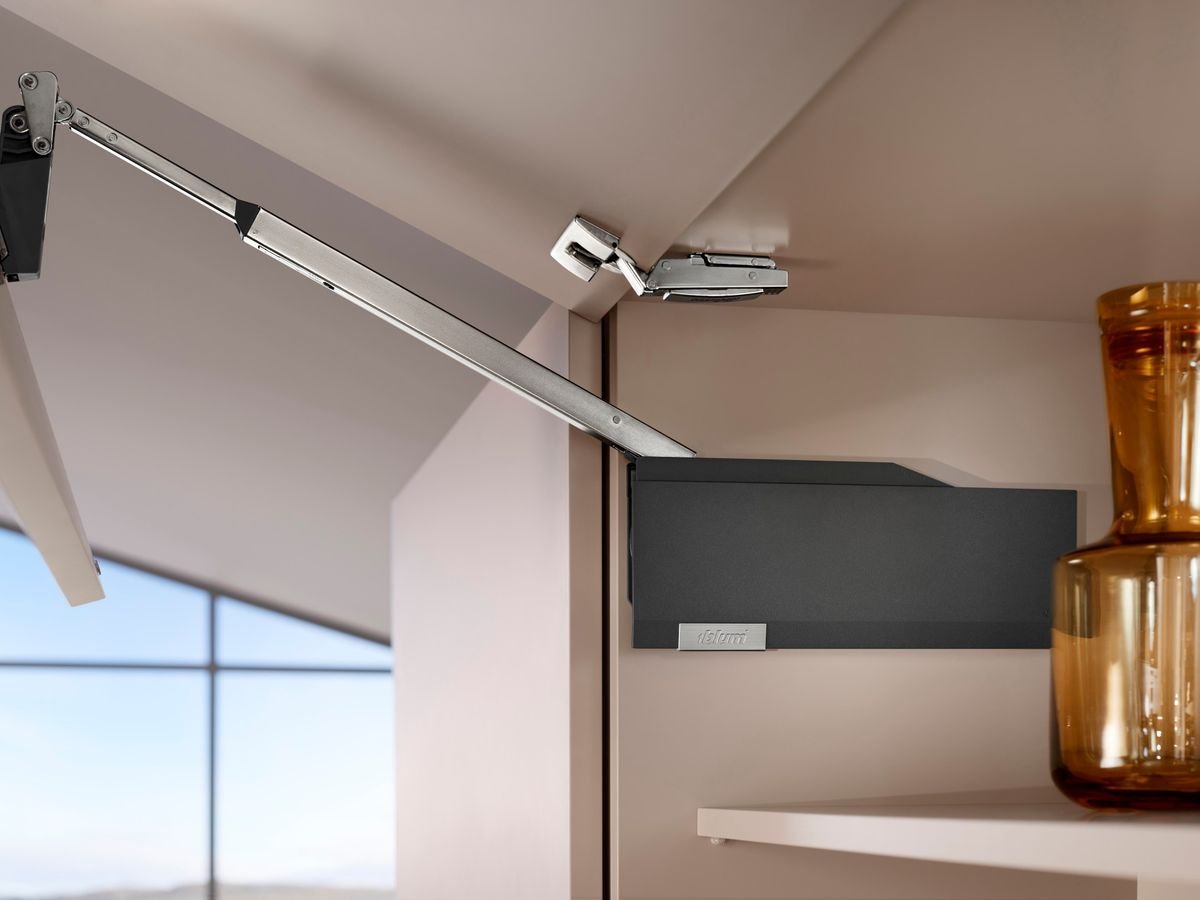

The range is deliberately compact: two lift-mechanism strengths, three telescopic levers, and front fixing brackets that can all be used symmetrically, regardless of the motion technology. The sleek, slim form of the lifts and levers leaves a small footprint in the cabinet, providing more room for storage. In the latest generation, the integrated opening-angle stop means different opening angles can be set in no time, and the door design is wide open — classic wood, aluminum frames, glass combinations, even asymmetrical doors.
Features
- Bi-fold two-part front — stays open during use
- Cabinet heights 479–1219 mm (18-7/8″–48″), widths up to 1828 mm (72″)
- Worktop-mounted cabinets possible — appliances disappear when not in use
- Two mechanism strengths, three telescopic levers, symmetric brackets
- Integrated opening-angle stop, quickly adjustable
- BLUMOTION soft close integrated; SERVO-DRIVE electrical opening optional
- Cover caps in silk white, light gray, dark gray; eclipse black hardware option
Specifications
TypeBi-fold lift (two-part front)
Cabinet heights479–1219 mm (18-7/8″–48″)
Cabinet widthsUp to 1828 mm (72″)
Mechanisms2 strengths · 3 telescopic levers, symmetric

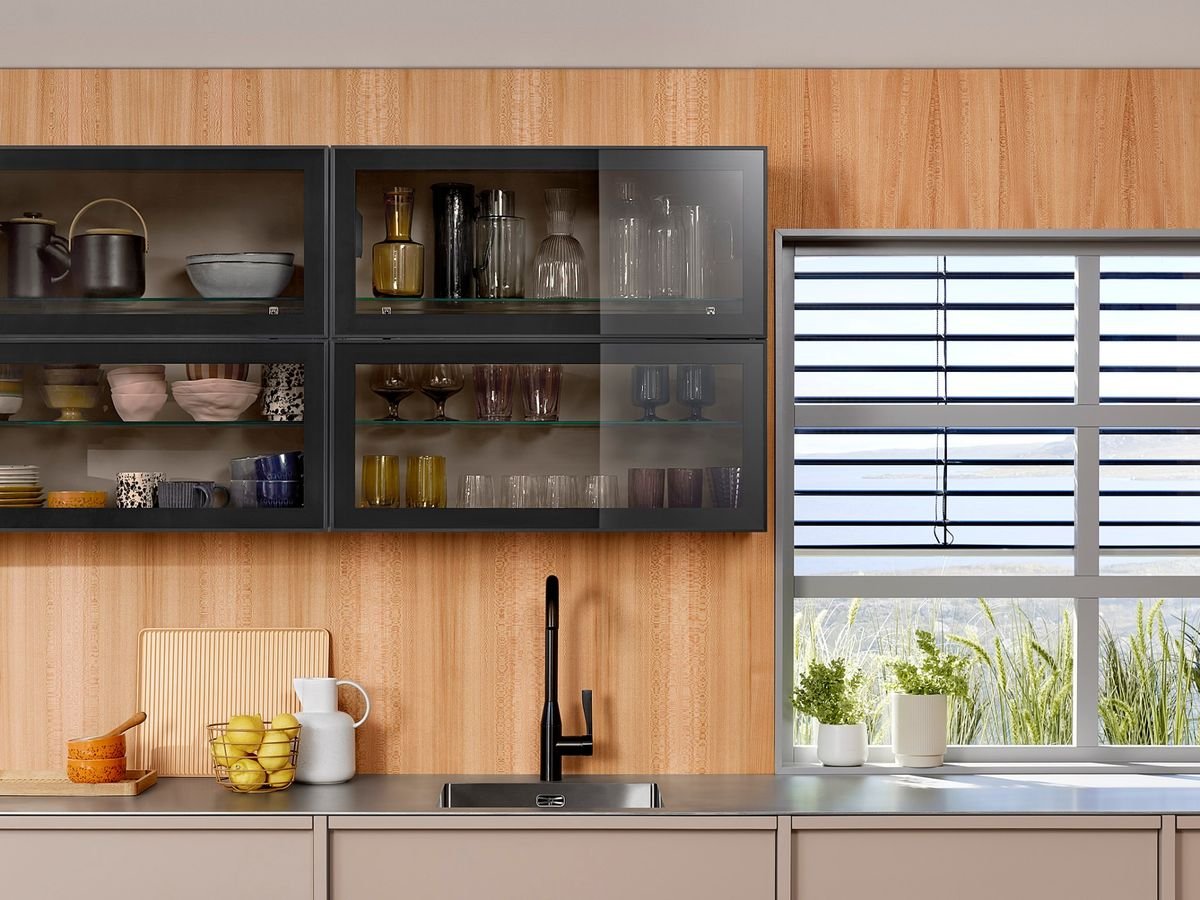

Front materialsWood, aluminum frames, glass combinations, asymmetrical doors
Motion technologiesBLUMOTION standard · SERVO-DRIVE optional
Hardware finishesNickel-plated or eclipse black · caps in silk white / light gray / dark gray
Gallery
