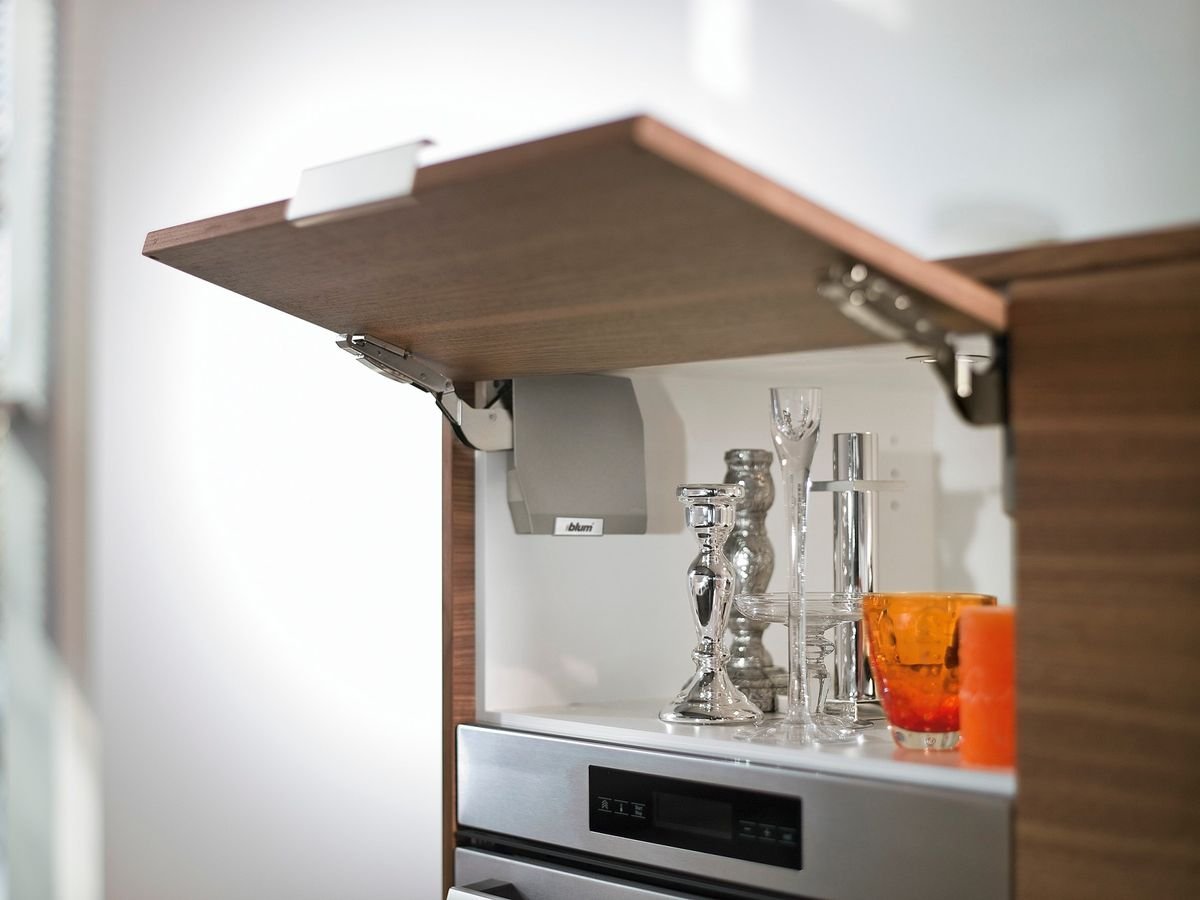

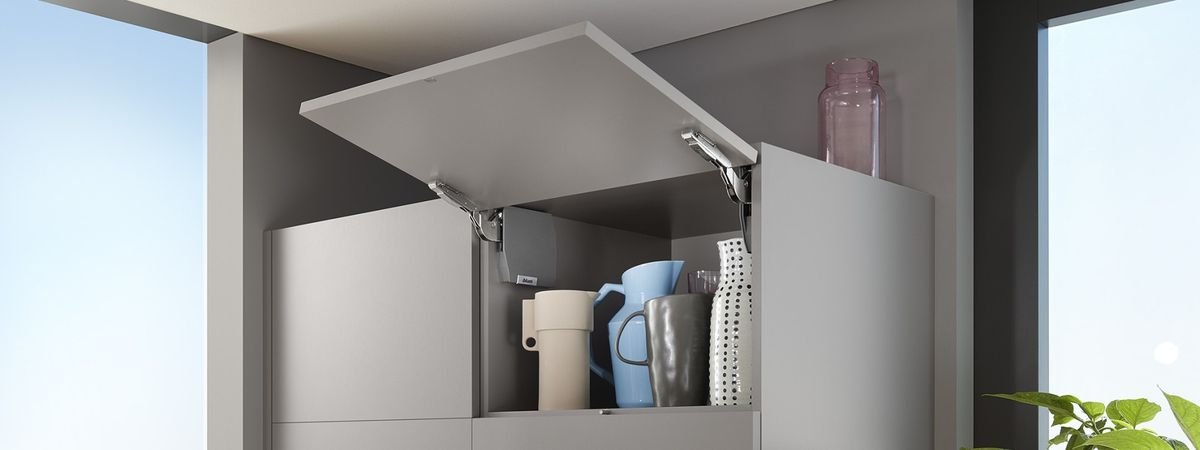

AVENTOS HK-S lift systems have been specifically designed to snugly fit smaller cabinets, and they excel above refrigerators and pantry units — the places a small flap earns its keep every day.
Three mechanisms cover the entire range of cabinet heights and widths, making choosing and ordering quick. Opening-angle restriction clips at 100° and 75° make sure the door opens to just the right height, fronts work in wood or wide and narrow aluminum frames, and BLUMOTION soft close is standard — with TIP-ON available for handle-less fronts.
Features
- Purpose-built for small wall cabinets
- Cabinet heights 186–610 mm (7-3/8″–24″), widths up to 1828 mm (72″)
- Three mechanisms cover the whole range
- 100° and 75° opening-angle restriction clips

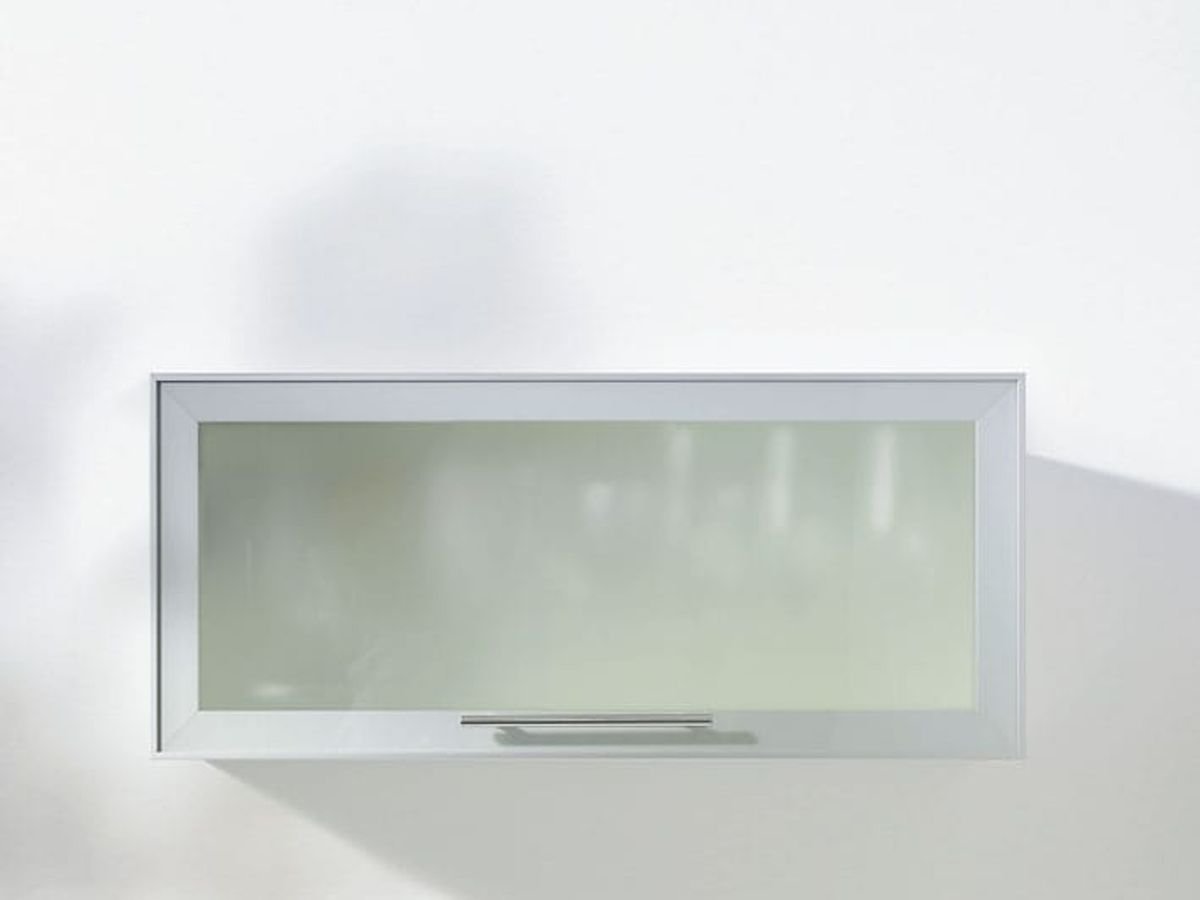

- Wood doors or aluminum frame doors

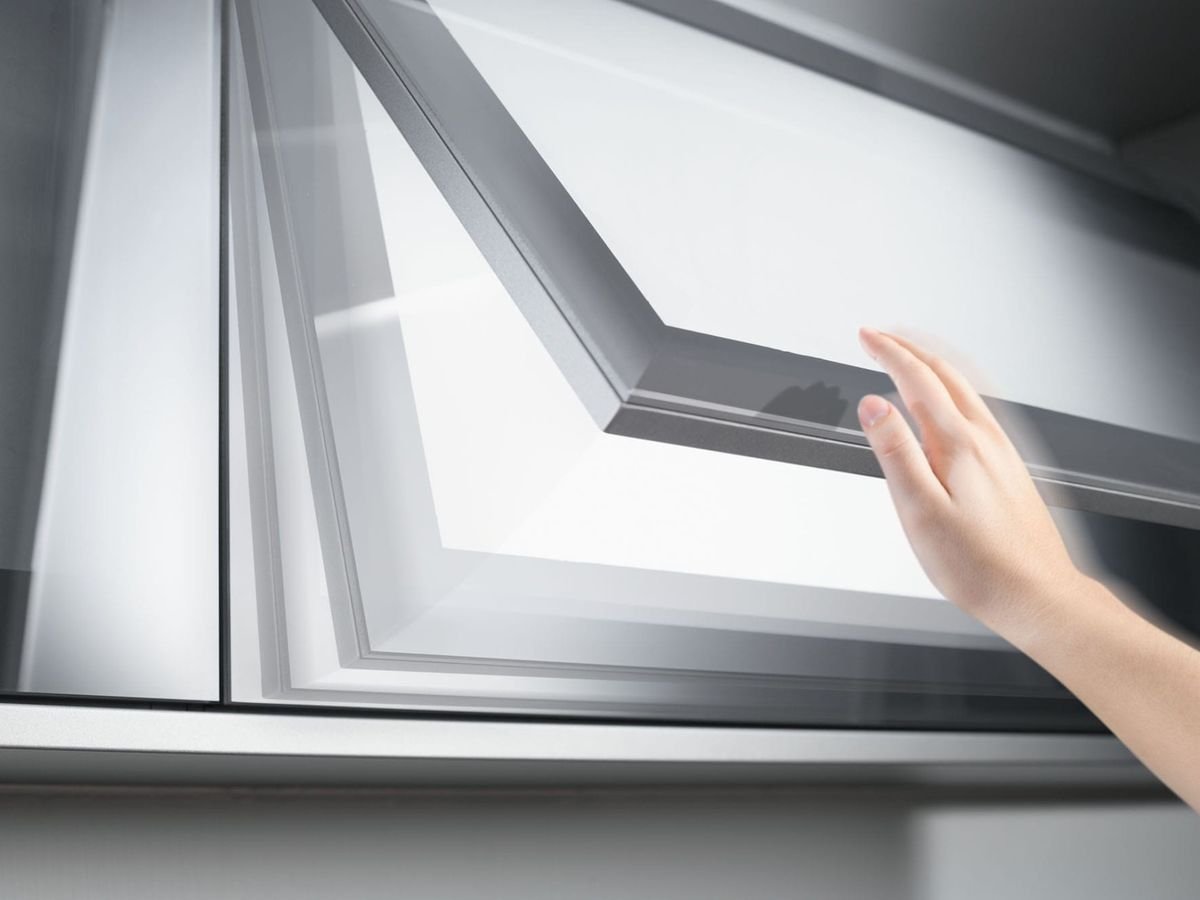

- BLUMOTION standard; TIP-ON for handle-less fronts
Specifications
TypeStay lift for small cabinets
Cabinet heights186–610 mm (7-3/8″–24″)
Cabinet widthsUp to 1828 mm (72″)
Mechanisms3 types
Angle restriction100° / 75° clips
Front materialsWood, aluminum frames
Motion technologiesBLUMOTION standard · TIP-ON optional
