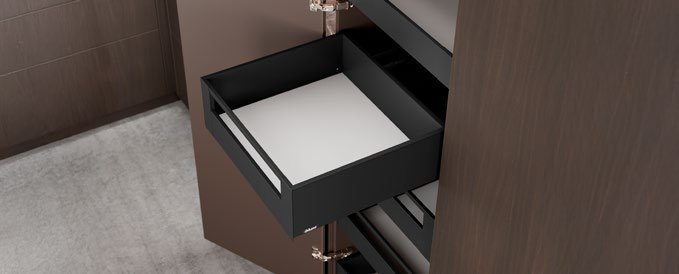

LEGRABOX C Height interior roll-out

The C Height interior roll-out is the deepest internal drawer: pantry-scale storage that stays invisible until the cabinet opens. The full 11″–26″ length range and both load classes are available.

Alongside the cut-to-size front piece, a cross gallery rail (1080 mm, cut to size) steadies tall contents; both come in the four LEGRABOX colours or brushed nickel with the matching interior bracket sets.

LEGRABOX is Blum’s statement of beauty in the drawer: flowing lines, classic colours inside and out, and impressively slim 1/2″ drawer sides that are straight on both faces. Three matte finishes — carbon black, Orion gray, silk white — suit a wide variety of cabinet aesthetics, and the anti-fingerprint stainless steel option holds its own against sticky fingers in high-traffic kitchens. The branding element can even be printed with a custom name or logo, matched to the box side or set in a contrasting colour.

The engineering is just as considered: low opening forces and a synchronized, feather-light glide, with outstanding performance even fully extended under heavy load — 125 lb standard and 170 lb heavy-duty capacities (per ANSI/BHMA A156.9) make it ideal even for wide drawers near the floor, and a special front fixing bracket keeps tall fronts rock-stable. Soft-close BLUMOTION is integrated, and the system accepts all three Blum motion technologies — BLUMOTION, SERVO-DRIVE electrical opening, and TIP-ON BLUMOTION mechanical touch-to-open — with the soft close adapting to whichever you choose.

Around the box, LEGRABOX is a complete system. The AMBIA-LINE organization programme was designed specifically for it — slim frames that keep everything ordered and easy to find — and single-drawer kits bundle every component needed to build one drawer, so nothing is ever mis-ordered. The same hardware underpins Blum’s space-saving cabinet ideas: the SPACE TOWER pantry, SPACE TWIN slim cabinets, the storage-maximising sink cabinet, and the SPACE STEP toe-kick drawer.

Features

• Drawer profile height 177 mm (7″)
• Three-dimensional drawer front adjustment
• Full-extension drawer system with soft-close BLUMOTION
• Smooth running action, even fully loaded
• Slim 1/2″ metal drawer sides, straight inside and out
• Compatible with TIP-ON BLUMOTION mechanical touch opening
• Compatible with SERVO-DRIVE electrical opening
• Four finishes: orion gray (OG-M), silk white (SW-M), carbon black (CS-M), brushed stainless (INGL)
• Three matte colours + anti-fingerprint stainless steel, inside and out
• Branding element printable with a custom name or logo
• Low opening forces with a synchronized, feather-light glide
• Special front fixing bracket stabilises tall fronts
• AMBIA-LINE slim-frame organization, purpose-designed for LEGRABOX
• Single-drawer kits bundle every component for one complete drawer
• Basis for SPACE TOWER, SPACE TWIN, SPACE STEP, and sink-cabinet solutions
• Internationally awarded design and engineering
