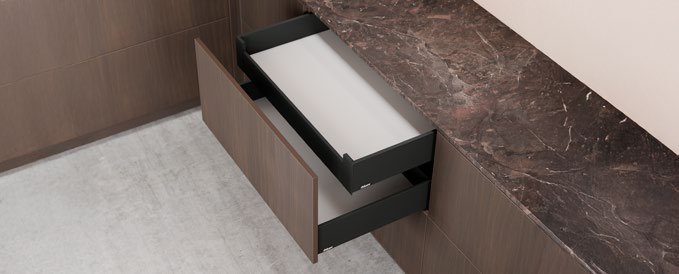

LEGRABOX K Height interior roll-out

The K Height interior roll-out is the mid-height internal drawer of the programme — enough side height for jars and boxes, still fully concealed behind the cabinet front.

It shares the cut-to-size front piece (max opening width 46″) in the four LEGRABOX colours or brushed nickel, with dedicated interior front fixing bracket sets including cover caps and locking pieces.

LEGRABOX is Blum’s statement of beauty in the drawer: flowing lines, classic colours inside and out, and impressively slim 1/2″ drawer sides that are straight on both faces. Three matte finishes — carbon black, Orion gray, silk white — suit a wide variety of cabinet aesthetics, and the anti-fingerprint stainless steel option holds its own against sticky fingers in high-traffic kitchens. The branding element can even be printed with a custom name or logo, matched to the box side or set in a contrasting colour.

The engineering is just as considered: low opening forces and a synchronized, feather-light glide, with outstanding performance even fully extended under heavy load — 125 lb standard and 170 lb heavy-duty capacities (per ANSI/BHMA A156.9) make it ideal even for wide drawers near the floor, and a special front fixing bracket keeps tall fronts rock-stable. Soft-close BLUMOTION is integrated, and the system accepts all three Blum motion technologies — BLUMOTION, SERVO-DRIVE electrical opening, and TIP-ON BLUMOTION mechanical touch-to-open — with the soft close adapting to whichever you choose.

Around the box, LEGRABOX is a complete system. The AMBIA-LINE organization programme was designed specifically for it — slim frames that keep everything ordered and easy to find — and single-drawer kits bundle every component needed to build one drawer, so nothing is ever mis-ordered. The same hardware underpins Blum’s space-saving cabinet ideas: the SPACE TOWER pantry, SPACE TWIN slim cabinets, the storage-maximising sink cabinet, and the SPACE STEP toe-kick drawer.

Features

• Drawer profile height 128.5 mm (5-1/16″)
• Three-dimensional drawer front adjustment
• Full-extension drawer system with soft-close BLUMOTION
• Smooth running action, even fully loaded
• Slim 1/2″ metal drawer sides, straight inside and out
• Compatible with TIP-ON BLUMOTION mechanical touch opening
• Compatible with SERVO-DRIVE electrical opening
• Four finishes: orion gray (OG-M), silk white (SW-M), carbon black (CS-M), brushed stainless (INGL)
• Three matte colours + anti-fingerprint stainless steel, inside and out
• Branding element printable with a custom name or logo
• Low opening forces with a synchronized, feather-light glide
• Special front fixing bracket stabilises tall fronts
• AMBIA-LINE slim-frame organization, purpose-designed for LEGRABOX
• Single-drawer kits bundle every component for one complete drawer
• Basis for SPACE TOWER, SPACE TWIN, SPACE STEP, and sink-cabinet solutions
• Internationally awarded design and engineering
