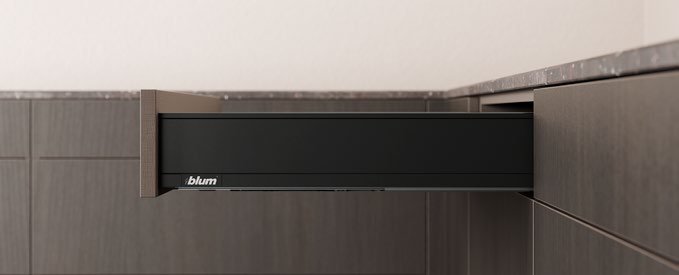

The M Height is the everyday LEGRABOX: a 90.5 mm (3-9/16″) side for prep tools, tableware, and linens. It offers the widest length range in the programme — nominal lengths from 11″ to 26″ — and both runner series: 750 at 125 lb and, from 450 mm length, the 753 series at 170 lb static load.
Three-dimensional front adjustment aligns the front precisely in height, side, and tilt, all from a T20 TORX driver. AMBIA-LINE interior organisation drops straight into the M box, and TIP-ON BLUMOTION or SERVO-DRIVE make it a handle-less front.
LEGRABOX is Blum’s statement of beauty in the drawer: flowing lines, classic colours inside and out, and impressively slim 1/2″ drawer sides that are straight on both faces. Three matte finishes — carbon black, Orion gray, silk white — suit a wide variety of cabinet aesthetics, and the anti-fingerprint stainless steel option holds its own against sticky fingers in high-traffic kitchens. The branding element can even be printed with a custom name or logo, matched to the box side or set in a contrasting colour.
The engineering is just as considered: low opening forces and a synchronized, feather-light glide, with outstanding performance even fully extended under heavy load — 125 lb standard and 170 lb heavy-duty capacities (per ANSI/BHMA A156.9) make it ideal even for wide drawers near the floor, and a special front fixing bracket keeps tall fronts rock-stable. Soft-close BLUMOTION is integrated, and the system accepts all three Blum motion technologies — BLUMOTION, SERVO-DRIVE electrical opening, and TIP-ON BLUMOTION mechanical touch-to-open — with the soft close adapting to whichever you choose.
Around the box, LEGRABOX is a complete system. The AMBIA-LINE organization programme was designed specifically for it — slim frames that keep everything ordered and easy to find — and single-drawer kits bundle every component needed to build one drawer, so nothing is ever mis-ordered. The same hardware underpins Blum’s space-saving cabinet ideas: the SPACE TOWER pantry, SPACE TWIN slim cabinets, the storage-maximising sink cabinet, and the SPACE STEP toe-kick drawer.
Features
- Drawer profile height 90.5 mm (3-9/16″)
- Three-dimensional drawer front adjustment
- Full-extension drawer system with soft-close BLUMOTION
- Smooth running action, even fully loaded
- Slim 1/2″ metal drawer sides, straight inside and out
- Compatible with TIP-ON BLUMOTION mechanical touch opening
- Compatible with SERVO-DRIVE electrical opening
- Four finishes: orion gray (OG-M), silk white (SW-M), carbon black (CS-M), brushed stainless (INGL)
- Three matte colours + anti-fingerprint stainless steel, inside and out
- Branding element printable with a custom name or logo
- Low opening forces with a synchronized, feather-light glide
- Special front fixing bracket stabilises tall fronts
- AMBIA-LINE slim-frame organization, purpose-designed for LEGRABOX
- Single-drawer kits bundle every component for one complete drawer
- Basis for SPACE TOWER, SPACE TWIN, SPACE STEP, and sink-cabinet solutions
- Internationally awarded design and engineering
Specifications
Finishes
Every LEGRABOX component is colour-coordinated — profiles, brackets, and cover caps ship in the finish you specify.
