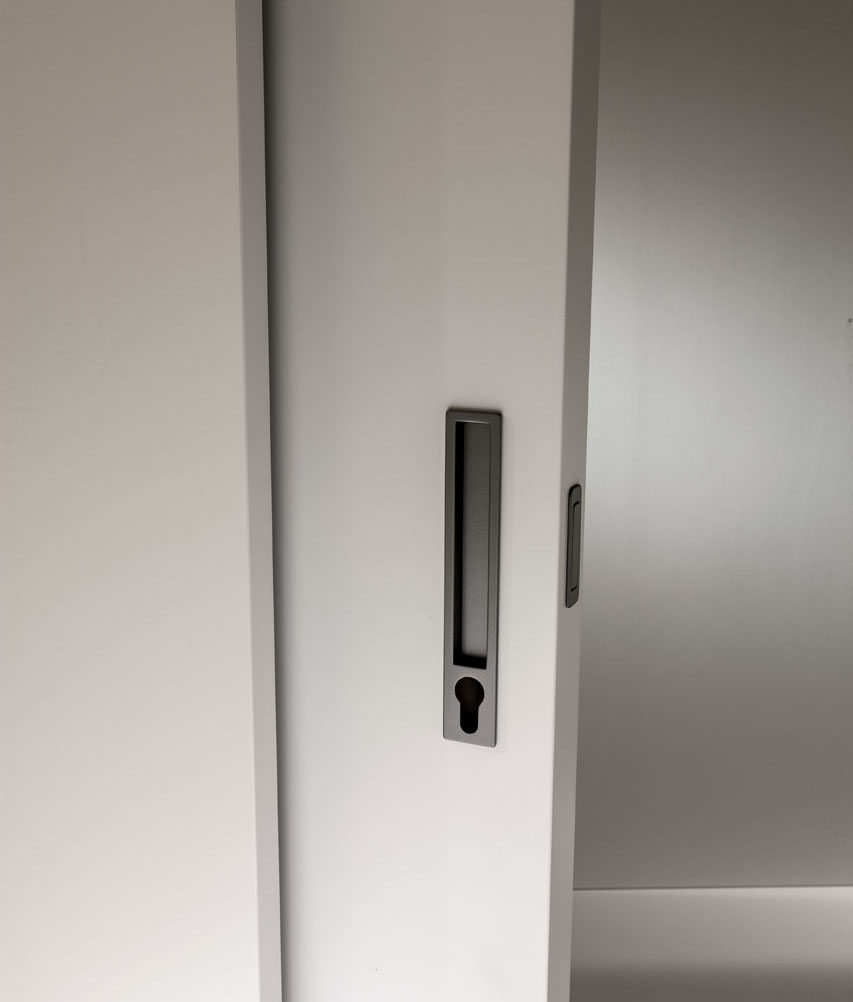

Pamar MN 1100 Z sliding-door handle
Pamar · Sliding Door · Flush Pull · Lock

MN 1100 Z

Pamar · Made in Italy · design Pinuccio Borgonovo

Borgonovo's rectangular flush pull with a thumb-turn on one face and a coin release on the other, fitted back to back, for partially built-in sliding doors on wood and metal from 40 mm.

Configure the finish
Choose a finish

Pamar’s catalogue finishes — galvanic and epoxy — are applied to order; the photograph shows the model’s standard finish. We confirm finish availability for this model on quote.

In the details

Italian hardware for the sliding leaf.

Material

Die-cast zinc alloy (Pamar’s Z series), finished in Pamar’s galvanic or epoxy palette.

Finishes

15 catalogue finishes: Metallized alluminium, Metallized silver, Metallized zinc, Mat black, Mat white, Metallized pearl nickel, Satin black nickel, Istanbul bronze, Cooper copper, Bright chromium, Bright satin nickel, Satin mat pewter, Mat satin bronze, Mat shaded bronze, Mat shaded pewter.

Mounting

Sliding door, partly exposed (partial built-in); Back-to-back (both faces). Door minimum thickness 40 mm. Assembly on wood and metal doors.

Made in

Italy. Designed by Pinuccio Borgonovo and manufactured by Pamar in Renate, Brianza.

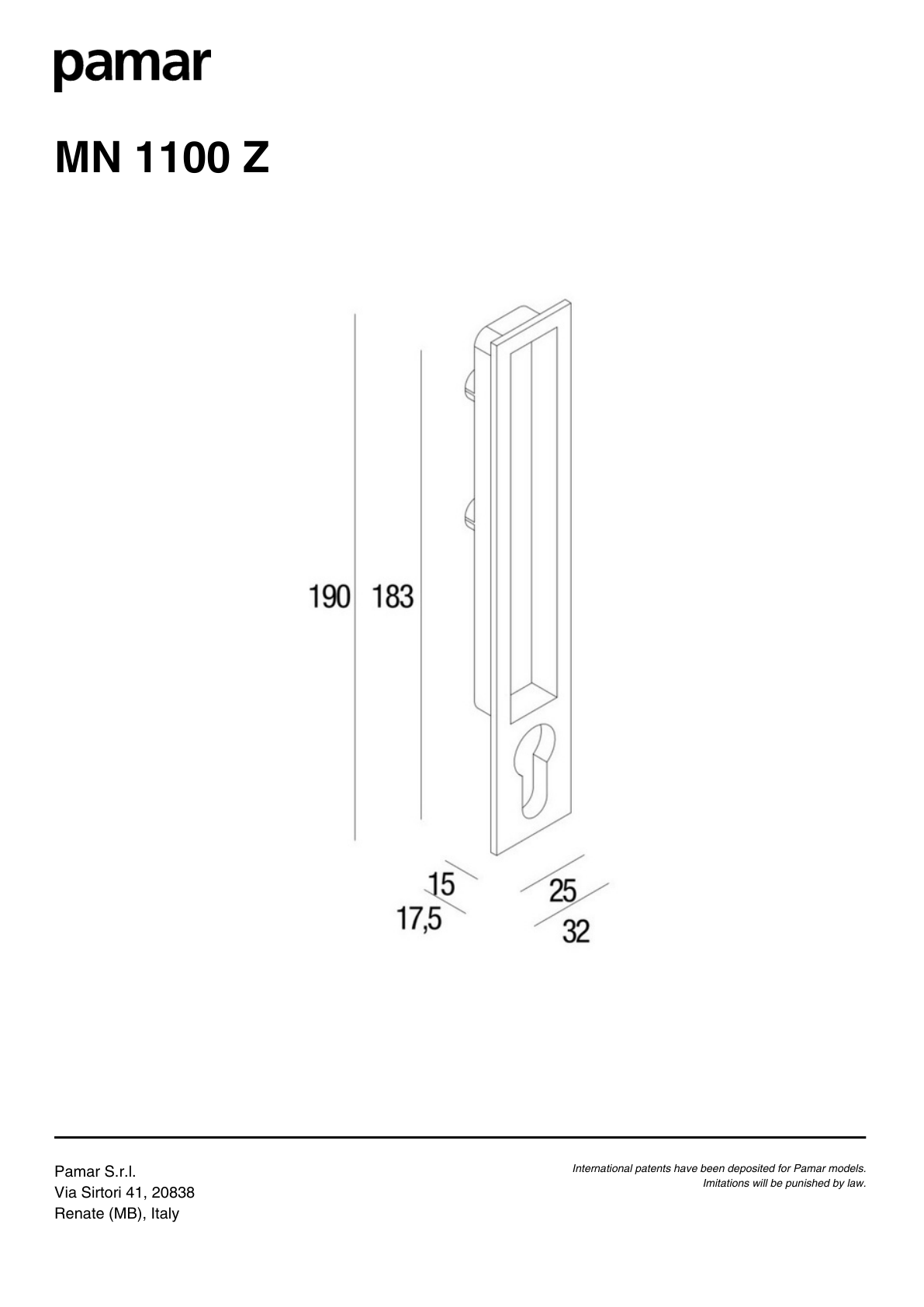

Pamar MN 1100 Z technical drawing with dimensions
Technical drawing

Dimensions and mounting for MN 1100 Z.

  • Sliding door, partly exposed (partial built-in)
  • Back-to-back (both faces)
  • Door minimum thickness 40 mm.
  • Assembly on wood and metal doors.
Specification downloads

Drawings & technical sheet

Pamar’s technical sheet for MN 1100 Z — dimensions and mounting. Provided by Pamar; shared here for project specification.

Technical sheet (Pamar)

MN 1100 Z · Technical sheet

PDF · Opens in new tab
Specify this handle

Specify MN 1100 Z for your project.

Tell us the door — leaf thickness, pocket or exposed track, wood, metal or glass — and the finish you want. We quote against the project and confirm lead time with Pamar.

Inquire about MN 1100 Z
