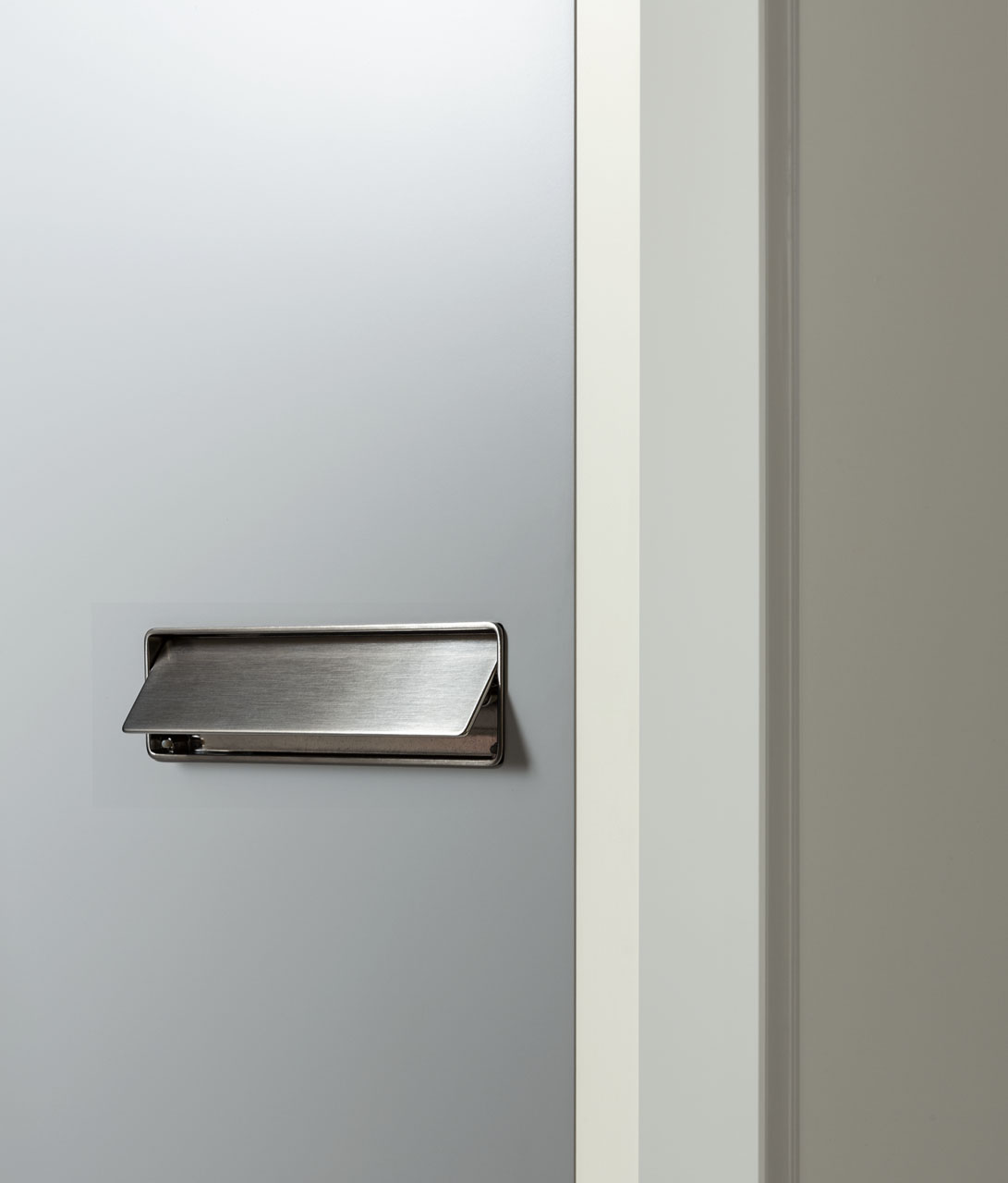

Pamar MN 2242 Z sliding-door handle
Pamar · Sliding Door · Fold-down Pull

MN 2242 Z

Pamar · Made in Italy · design CRP

CRP's fold-down pull: a flat plate recessed into the face that flips out into a grip, then folds back flush. Total built-in mounting as a front handle; also specified on push-pull doors. Wood and metal.

Configure the finish
Choose a finish

Pamar’s catalogue finishes — galvanic and epoxy — are applied to order; the photograph shows the model’s standard finish. We confirm finish availability for this model on quote.

In the details

Italian hardware for the sliding leaf.

Material

Die-cast zinc alloy (Pamar’s Z series), finished in Pamar’s galvanic or epoxy palette.

Finishes

15 catalogue finishes: Metallized alluminium, Metallized silver, Metallized zinc, Mat black, Mat white, Metallized pearl nickel, Satin black nickel, Istanbul bronze, Cooper copper, Bright chromium, Bright satin nickel, Satin mat pewter, Mat satin bronze, Mat shaded bronze, Mat shaded pewter.

Mounting

Sliding door, fully pocketed (total built-in); Push-pull door; Front handle (one face). Assembly on wood and metal doors.

Made in

Italy. Designed by CRP and manufactured by Pamar in Renate, Brianza.

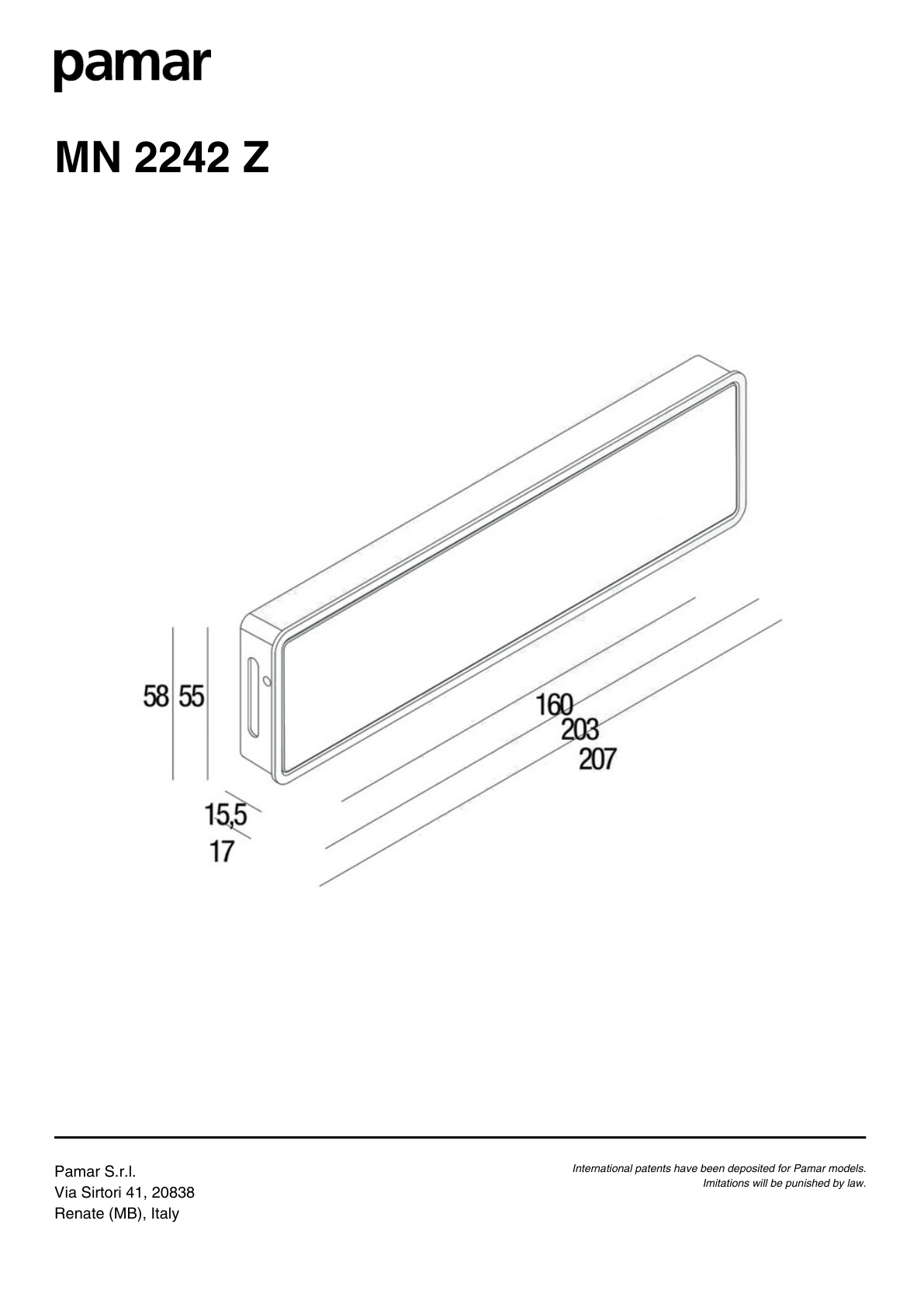

Pamar MN 2242 Z technical drawing with dimensions
Technical drawing

Dimensions and mounting for MN 2242 Z.

  • Sliding door, fully pocketed (total built-in)
  • Push-pull door
  • Front handle (one face)
  • Assembly on wood and metal doors.
Specification downloads

Drawings & technical sheet

Pamar’s technical sheet for MN 2242 Z — dimensions and mounting. Provided by Pamar; shared here for project specification.

Technical sheet (Pamar)

MN 2242 Z · Technical sheet

PDF · Opens in new tab
Specify this handle

Specify MN 2242 Z for your project.

Tell us the door — leaf thickness, pocket or exposed track, wood, metal or glass — and the finish you want. We quote against the project and confirm lead time with Pamar.
