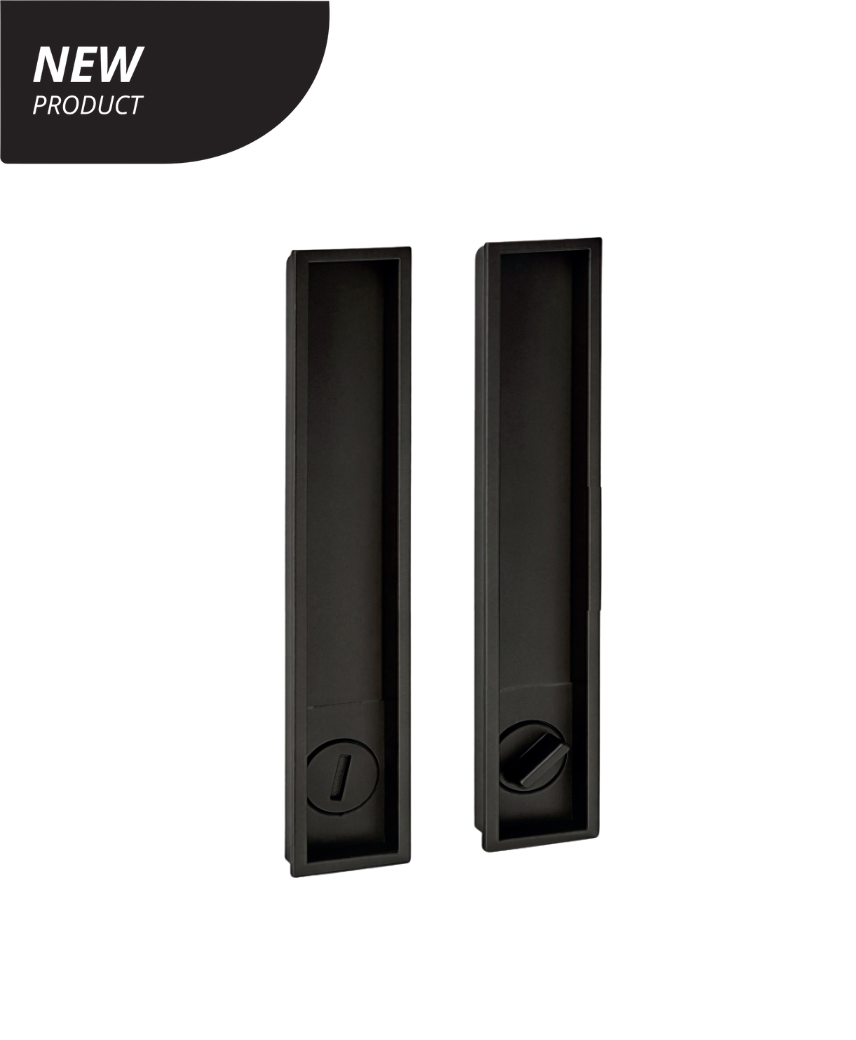

Pamar MN 2726 ZCP sliding-door handle
Pamar · Sliding Door · Flush Pull · Lock · New

MN 2726 ZCP

Pamar · Made in Italy · design CRP

Pamar's newest flush set for sliding and pocket doors: two recessed rectangular pulls, one carrying a thumb-turn and the other the emergency coin release, so a bathroom or bedroom leaf locks without a surface-mounted bolt. Total built-in mounting, back to back, for wood and metal doors from 35 mm.

Configure the finish
Choose a finish

Pamar’s catalogue finishes — galvanic and epoxy — are applied to order; the photograph shows the model’s standard finish. We confirm finish availability for this model on quote.

In the details

Italian hardware for the sliding leaf.

Material

Die-cast zinc alloy (Pamar’s Z series), finished in Pamar’s galvanic or epoxy palette.

Finishes

15 catalogue finishes: Metallized alluminium, Metallized silver, Metallized zinc, Mat black, Mat white, Metallized pearl nickel, Satin black nickel, Istanbul bronze, Cooper copper, Bright chromium, Bright satin nickel, Satin mat pewter, Mat satin bronze, Mat shaded bronze, Mat shaded pewter.

Mounting

Sliding door, fully pocketed (total built-in); Back-to-back (both faces). Door minimum thickness 35 mm. Assembly on wood and metal doors.

Made in

Italy. Designed by CRP and manufactured by Pamar in Renate, Brianza.

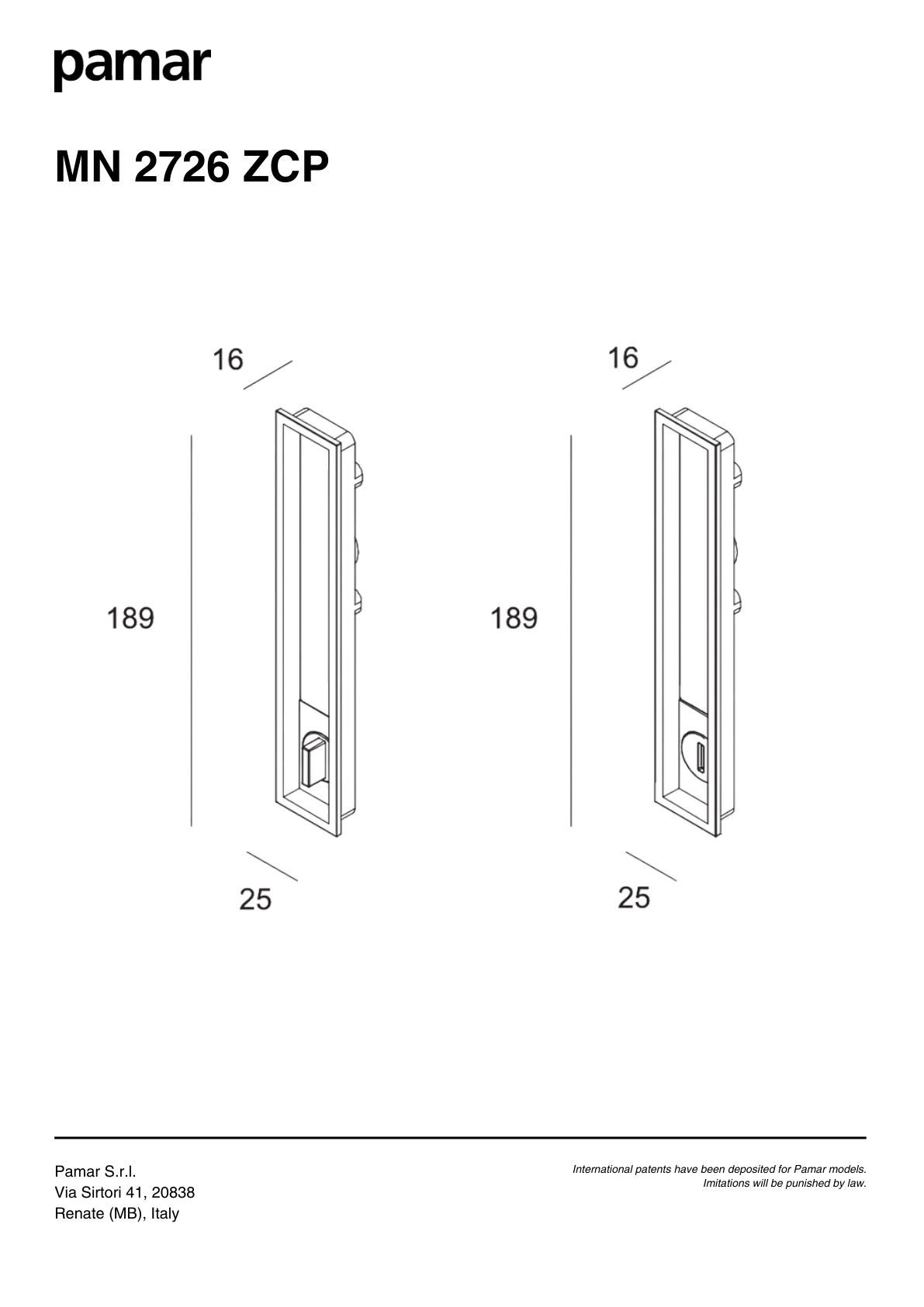

Pamar MN 2726 ZCP technical drawing with dimensions
Technical drawing

Dimensions and mounting for MN 2726 ZCP.

  • Sliding door, fully pocketed (total built-in)
  • Back-to-back (both faces)
  • Door minimum thickness 35 mm.
  • Assembly on wood and metal doors.
Specification downloads

Drawings & technical sheet

Pamar’s technical sheet for MN 2726 ZCP — dimensions and mounting. Provided by Pamar; shared here for project specification.

Technical sheet (Pamar)

MN 2726 ZCP · Technical sheet

PDF · Opens in new tab
Specify this handle

Specify MN 2726 ZCP for your project.

Tell us the door — leaf thickness, pocket or exposed track, wood, metal or glass — and the finish you want. We quote against the project and confirm lead time with Pamar.

Inquire about MN 2726 ZCP
