Pamar MP 756 Z sliding-door handle
Pamar · Sliding Door · Flush Pull

MP 756 Z

Pamar · Made in Italy · design Marco Redaelli

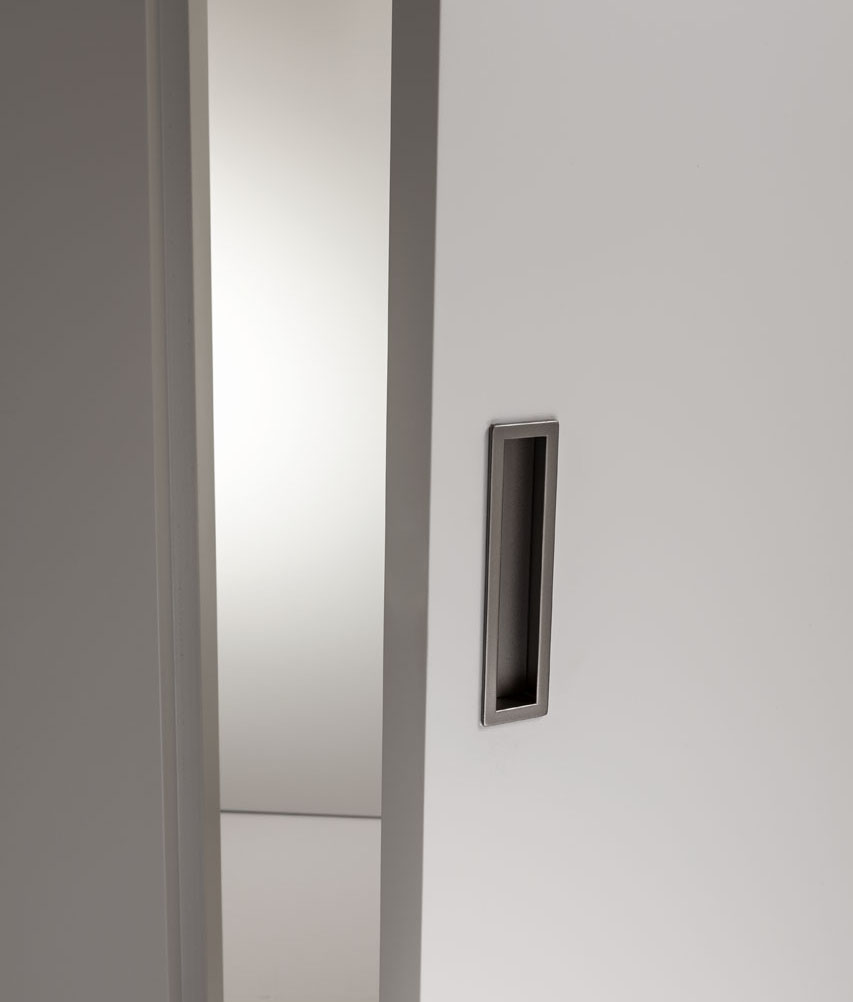

A narrow rectangular recess with a fine rim, fitted to one face of the leaf. Designed by Marco Redaelli for sliding doors that disappear completely into the wall; the pull is all that remains visible. Mounts on wood and metal doors.

Configure the finish
Choose a finish

Pamar’s catalogue finishes — galvanic and epoxy — are applied to order; the photograph shows the model’s standard finish. We confirm finish availability for this model on quote.

In the details

Italian hardware for the sliding leaf.

Material

Die-cast zinc alloy (Pamar’s Z series), finished in Pamar’s galvanic or epoxy palette.

Finishes

15 catalogue finishes: Metallized alluminium, Metallized silver, Metallized zinc, Mat black, Mat white, Metallized pearl nickel, Satin black nickel, Istanbul bronze, Cooper copper, Bright chromium, Bright satin nickel, Satin mat pewter, Mat satin bronze, Mat shaded bronze, Mat shaded pewter.

Mounting

Sliding door, fully pocketed (total built-in); Front handle (one face). Assembly on wood and metal doors.

Made in

Italy. Designed by Marco Redaelli and manufactured by Pamar in Renate, Brianza.

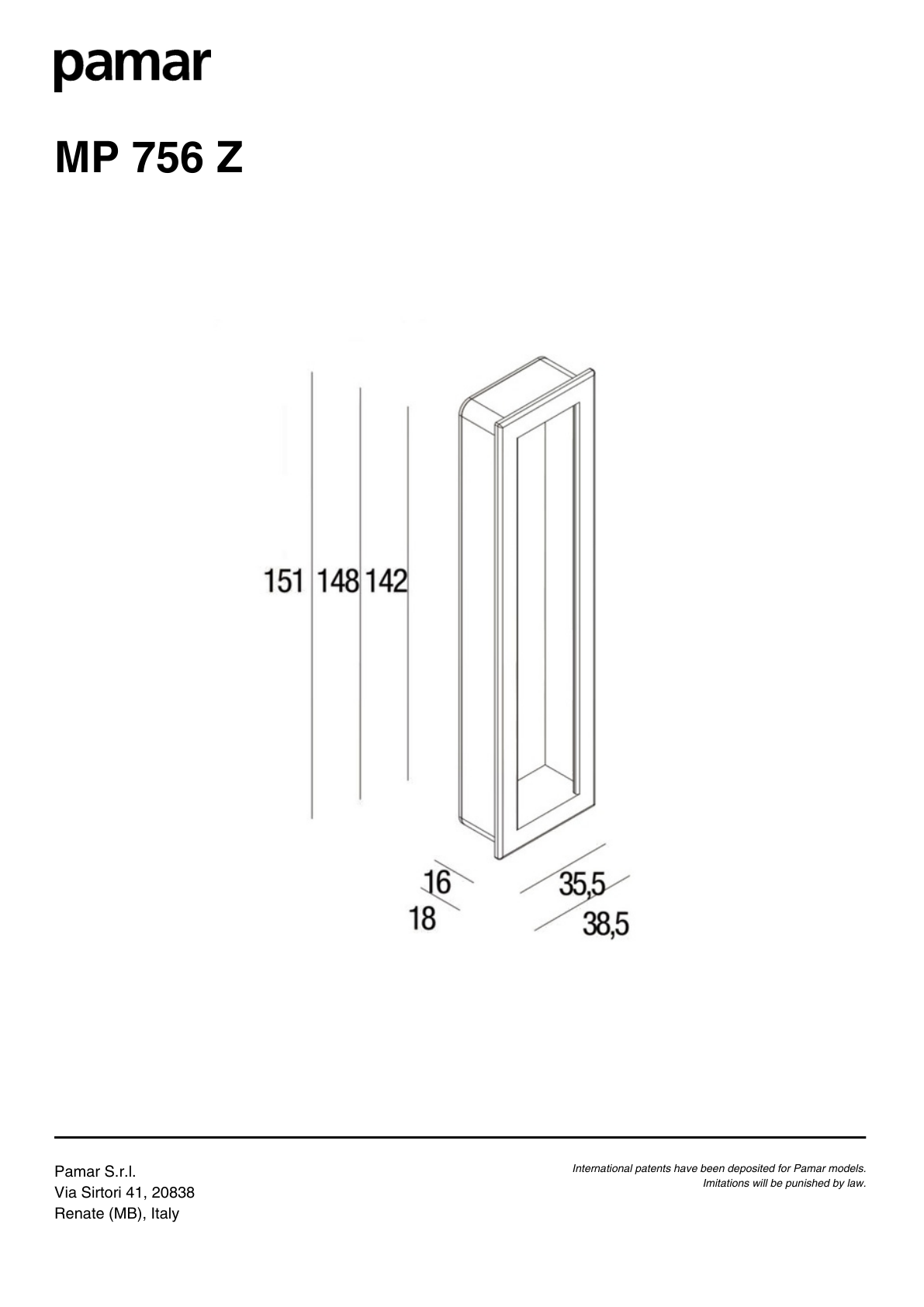

Pamar MP 756 Z technical drawing with dimensions
Technical drawing

Dimensions and mounting for MP 756 Z.

  • Sliding door, fully pocketed (total built-in)
  • Front handle (one face)
  • Assembly on wood and metal doors.
Specification downloads

Drawings & technical sheet

Pamar’s technical sheet for MP 756 Z — dimensions and mounting. Provided by Pamar; shared here for project specification.

Technical sheet (Pamar)

MP 756 Z · Technical sheet

PDF · Opens in new tab
Specify this handle

Specify MP 756 Z for your project.

Tell us the door — leaf thickness, pocket or exposed track, wood, metal or glass — and the finish you want. We quote against the project and confirm lead time with Pamar.

Inquire about MP 756 Z
