ISEO Argo · Motorized lock
X1R Smart 2.0 is a motorised electronic lock built for security doors that also need an anti-panic or emergency function — the rim-version 'Panic 4RM'. It runs ISEO's ARGO firmware and opens by smartphone, RFID, PIN, or fingerprint through an X1R Smart reader, on battery or wired power, with full event logging.
Features
- Anti-panic / emergency function (rim version)
- Motorised electronic locking, ARGO firmware
- Battery 6×1.5 VDC — up to ~3 years / 30,000 openings
- Wired power 8–30 VDC, 30 W
- Reversible door sensor with adjustable projection
- Top and bottom attachments for additional rods
- Suitable for fire-resistant doors
- X1R Smart readers: RFID, keypad, fingerprint
Opens with
- Smartphone — ARGO app (Bluetooth)
- RFID badge / keyfob / bracelet
- PIN code
- Fingerprint
- Mechanical override cylinder
Specifications
Release2.0
Power6×1.5 VDC alkaline, or 8–30 VDC (30 W)
Consumption0.05 A rest / 2.5 A max
Battery lifeUp to 3 years / 30,000 openings
ProtectionIP44
Working temp.−20 °C ÷ +70 °C
DeadboltChromed steel ø18 mm, 30 mm stroke
MountingArmoured door (rim)

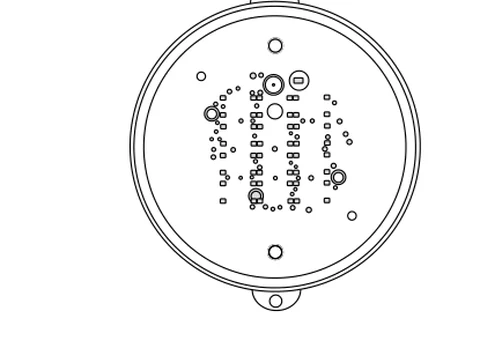

Control modules & readers
Choose how the lock is operated — any one of these ISEO readers pairs with the X1R.
