ISEO X1R Smart — motorized lock

Motorized electronic lock for armoured doors — smartphone, RFID, PIN, and fingerprint.

ISEO X1R Smart — motorized lock
ISEO Argo · Motorized lock

X1R Smart is a motorized electronic lock designed specifically for armoured doors, merging mechanical robustness with electronic access. Motorized deadbolt and latchbolt control let it open and re-lock automatically — by smartphone (the Argo app over Bluetooth), RFID, PIN code, or fingerprint — while still accepting a European-profile key.

Features

  • Motorized deadbolt and latchbolt control
  • Up to 300 users; last 1,000 events logged
  • Patented BLE + RFID wake-up
  • Office mode (stays open) and VIP-only access mode
  • Single Action interior quick-release option
  • User-programmable latch lighting by time slot
  • EN 1303 / DIN 18252 cylinder compatible
  • Argo app (iOS / Android) programming and updates

Opens with

  • Smartphone — Argo app (Bluetooth)
  • RFID badge / keyfob / bracelet
  • PIN code
  • Fingerprint
  • European-profile key

Specifications

Power6×1.5V alkaline, or 8–30 VDC (30 W max)
Consumption0.05 A at rest / 2.5 A max
ProtectionIP44
CertificationEN 14846:2008
InstallationArmoured doors (rim or mortice)

Control modules & readers

Choose how the lock is operated — any one of these ISEO readers pairs with the X1R.

Multi-reader
Multi-readerNumeric keypad, RFID reader 13.56 MHz, and Bluetooth, with “Wake on Hand” technology. Black cover and 3 connection cables (1 m).0000098108696

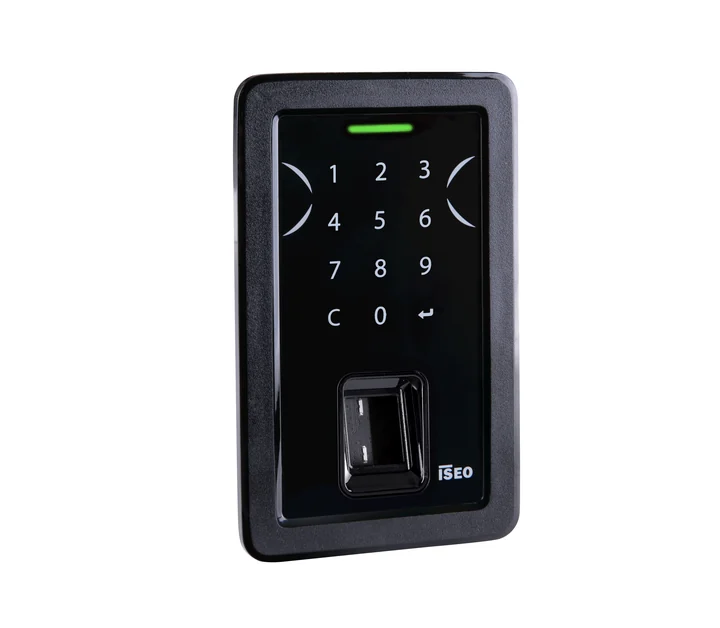

Multi-reader with fingerprint
Multi-reader with fingerprintKeypad, RFID, Bluetooth, and a biometric fingerprint reader, with “Wake on Hand” technology. Black cover and 3 connection cables (1 m).0000098109696
External control module — RFID reader
External control module — RFID readerRFID reader 13.56 MHz and Bluetooth. Includes a pair of 100 cm connection cables; encrypted data communication.0000098105696
External control module — keyboard
External control module — keyboardNumeric keypad with RFID reader 13.56 MHz and Bluetooth. Includes a pair of 100 cm connection cables; encrypted data communication.0000098111696
Hidden RFID reader
Hidden RFID readerConcealed RFID reader and Bluetooth, mounted out of sight. Includes a pair of 100 cm connection cables.0000098106696

Gallery

ISEO X1R Smart — motorized lockISEO X1R Smart — motorized lock
